Second Row Center Safety Belt Retractor - 40/20/40: Notes

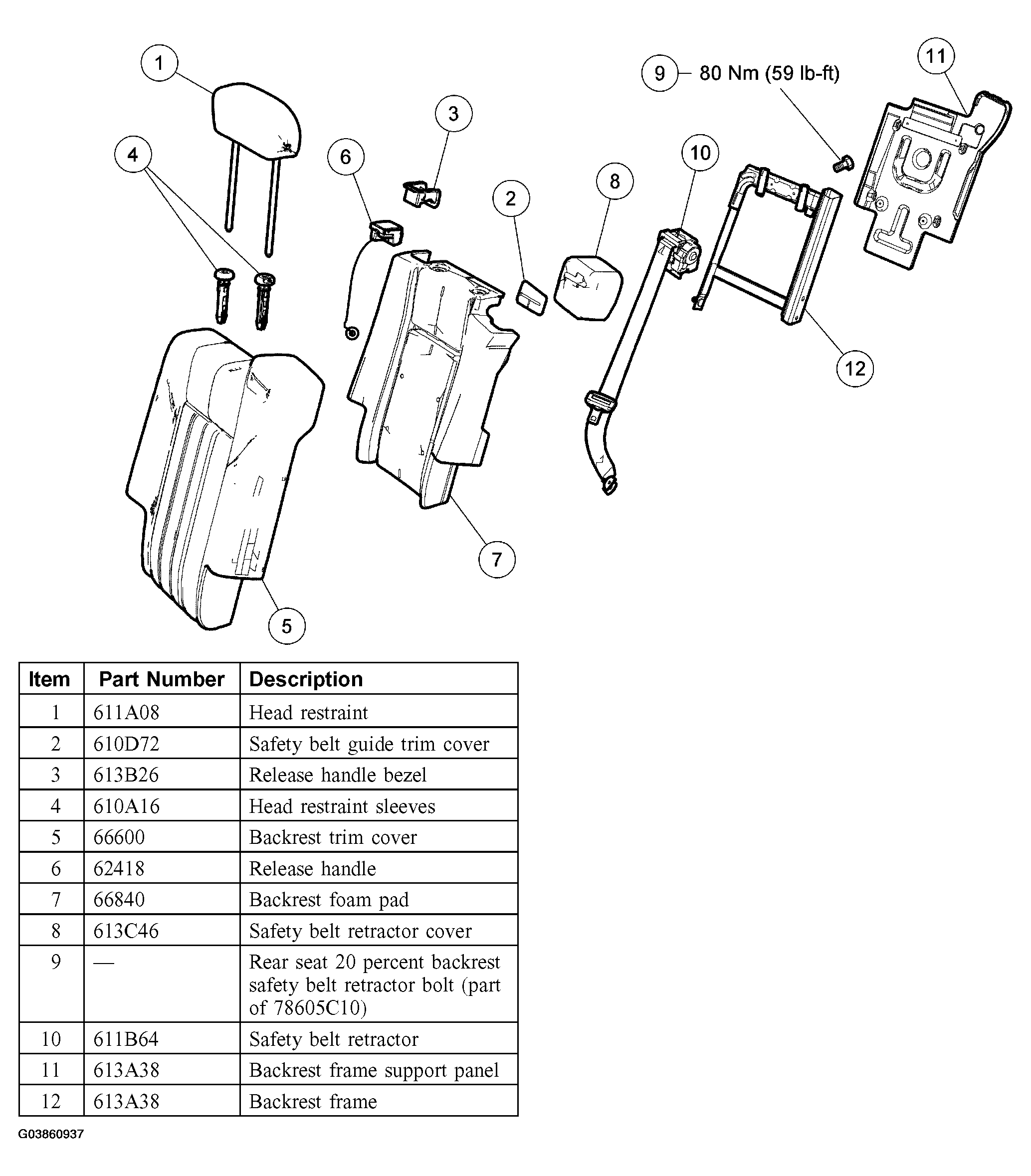

Fig 1: Exploded View Of Second Row Center Safety Belt Retractor - 40/20/40

G03860937

Courtesy of FORD MOTOR CO.
