Connector Identification (C263)

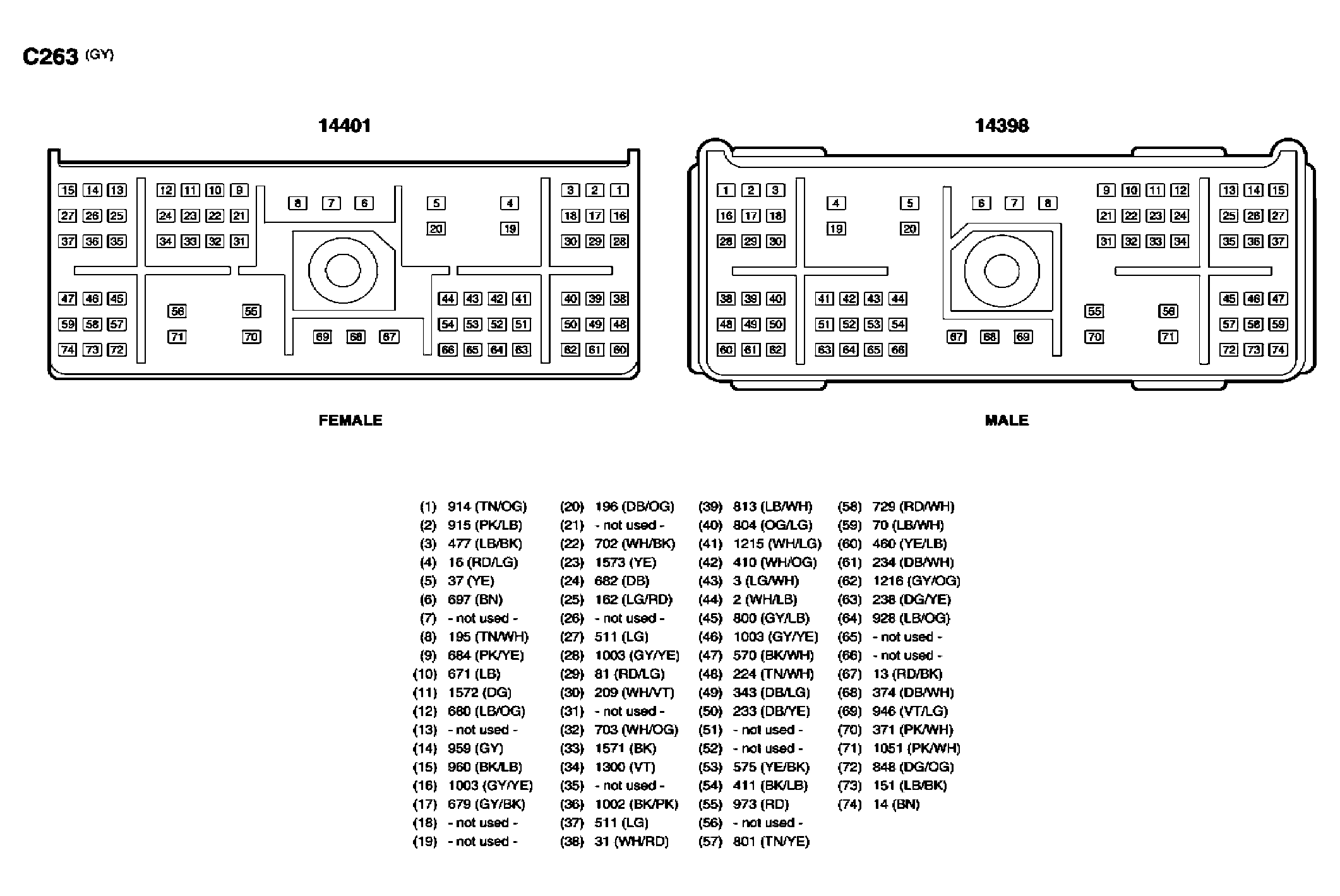

Fig 1: Inline Connector End View (C263)

G03982503

Courtesy of FORD MOTOR CO.
