Connector Identification (C175b)
Connector Identification (C175b)

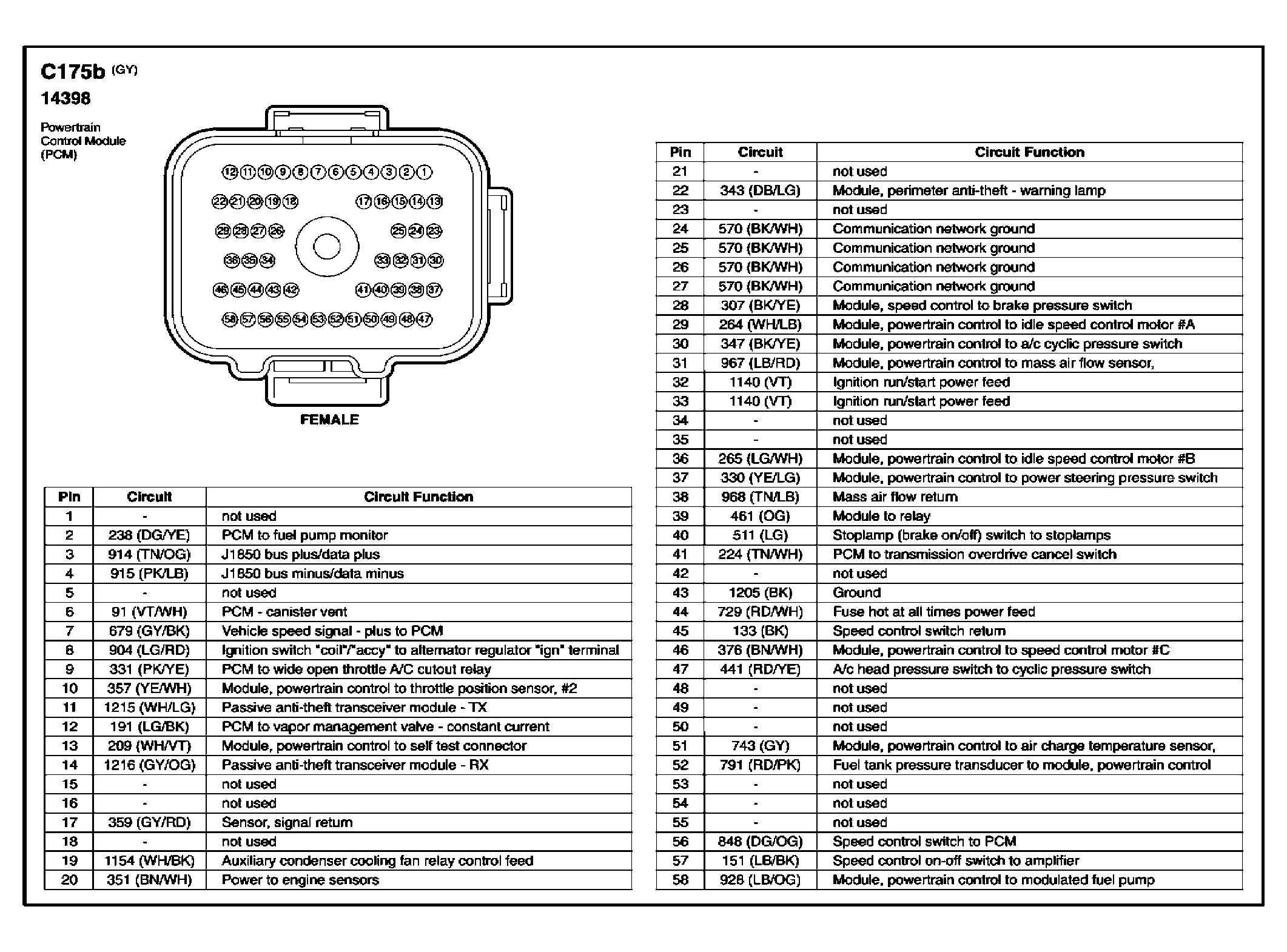

Fig 1: Powertrain Control Module (PCM) Connector End View (C175b)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
