Vacuum Schematic - Dual Automatic Temperature Control System

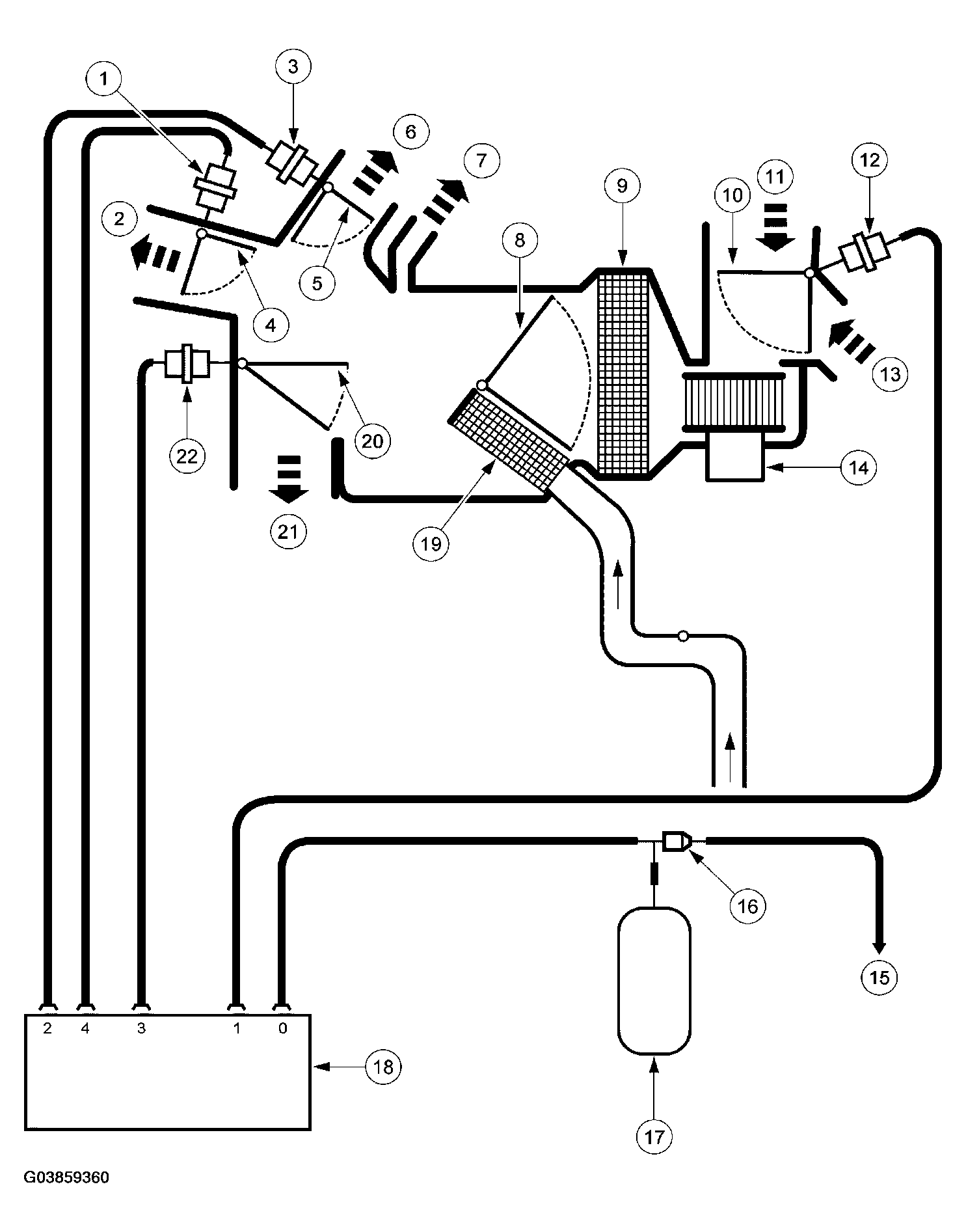

Fig 1: Dual Automatic Temperature Control System Vacuum Schematic Diagram
G03859360Courtesy of FORD MOTOR CO.

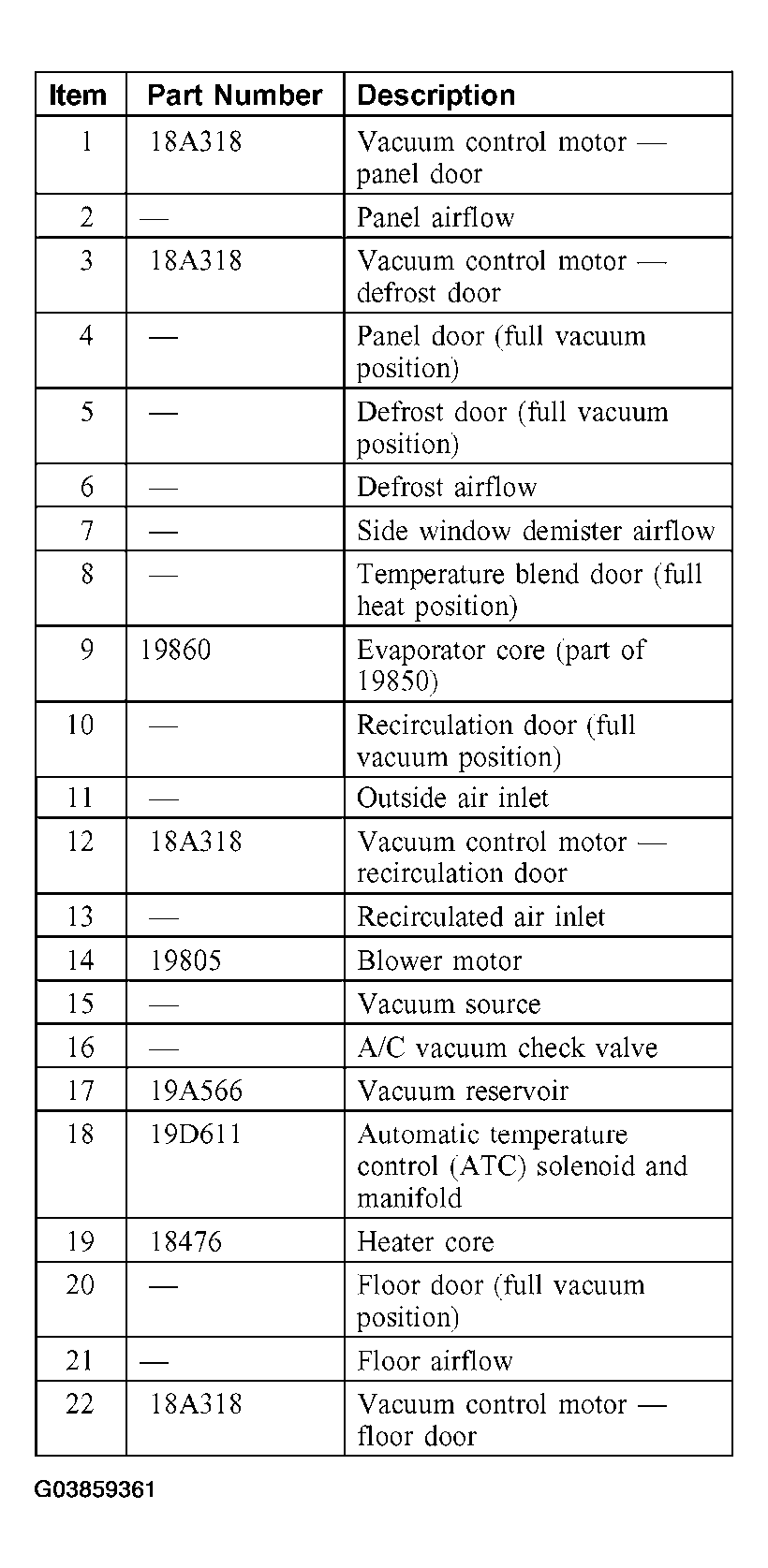

Fig 2: Identifying Dual Automatic Temperature Control System Components
G03859361Courtesy of FORD MOTOR CO.
