Home >> Lincoln >> 2005 >> Aviator AWD >> Repair and Diagnosis >> Body & Frame >> Seats >> Seating >> Removal And Installation >> Rear Seat - Third Row >> Notes

Rear Seat - Third Row: Notes

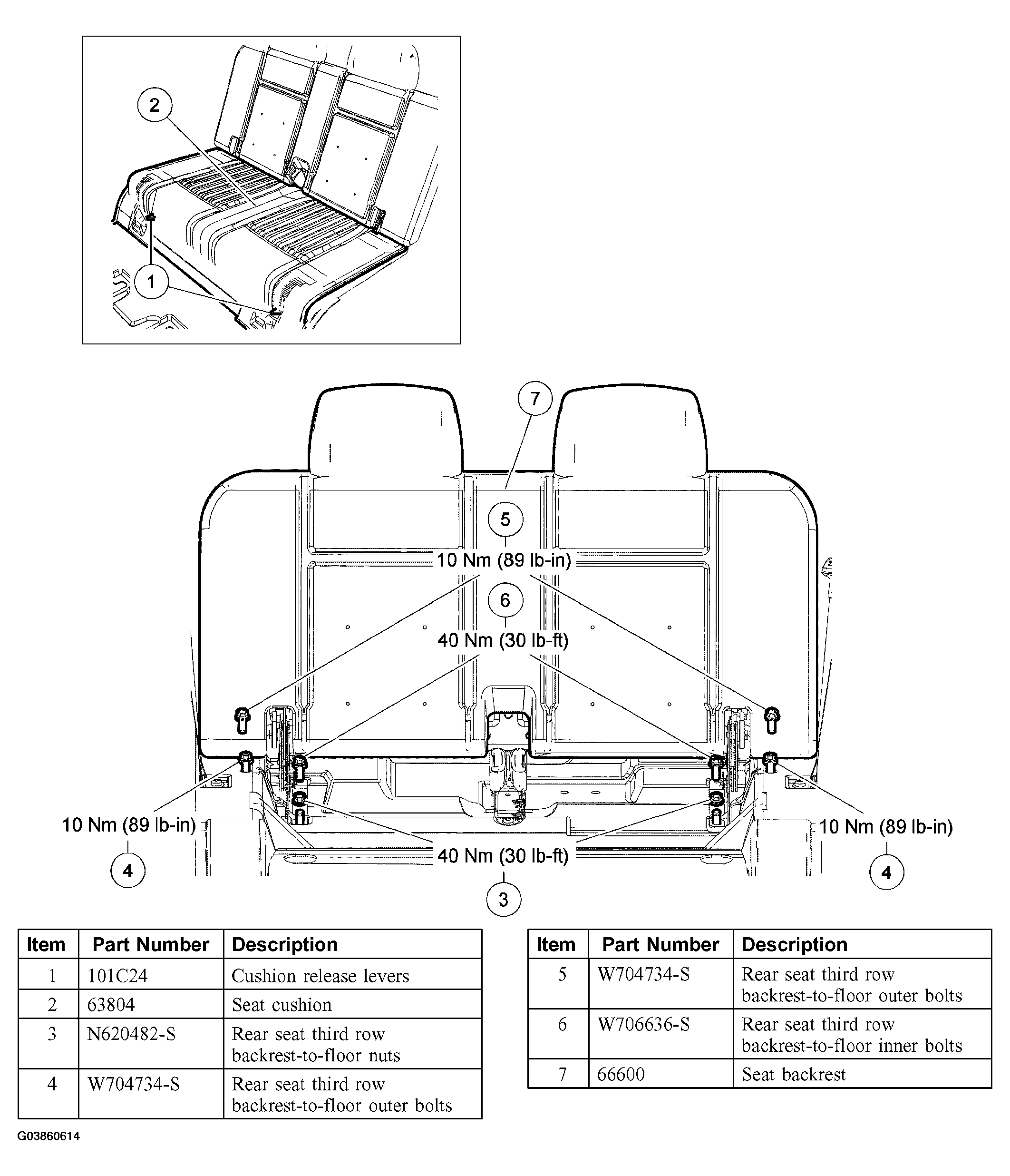

Fig 1: Identifying Rear Seat Components - Third Row

G03860614

Courtesy of FORD MOTOR CO.
