Rear Seat Backrest - 20 Percent, Second Row: Notes

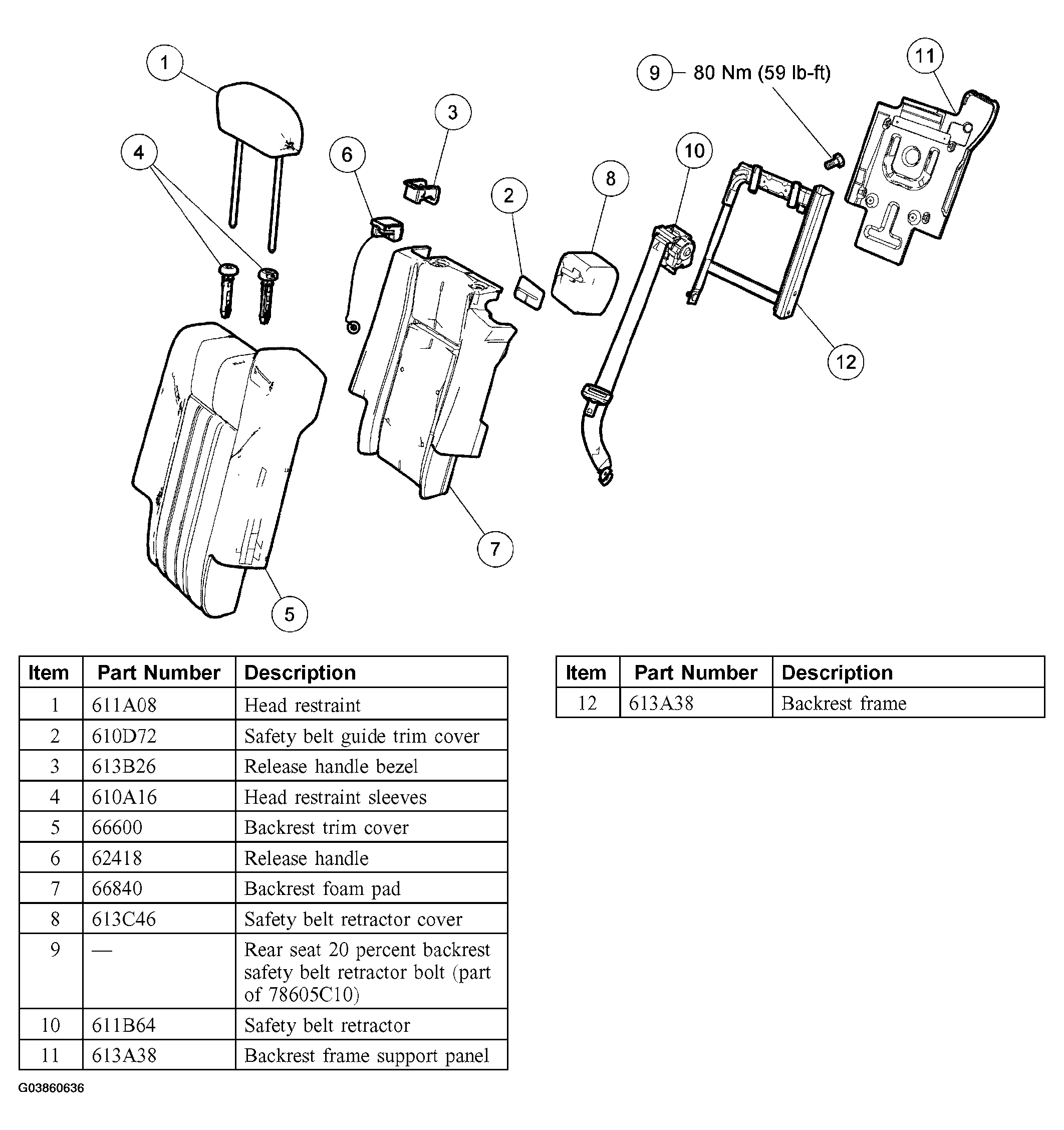

Fig 1: Disassembling Rear Seat Backrest - 20 Percent (Second Row)

G03860636

Courtesy of FORD MOTOR CO.
