Crossmember - Front: Notes

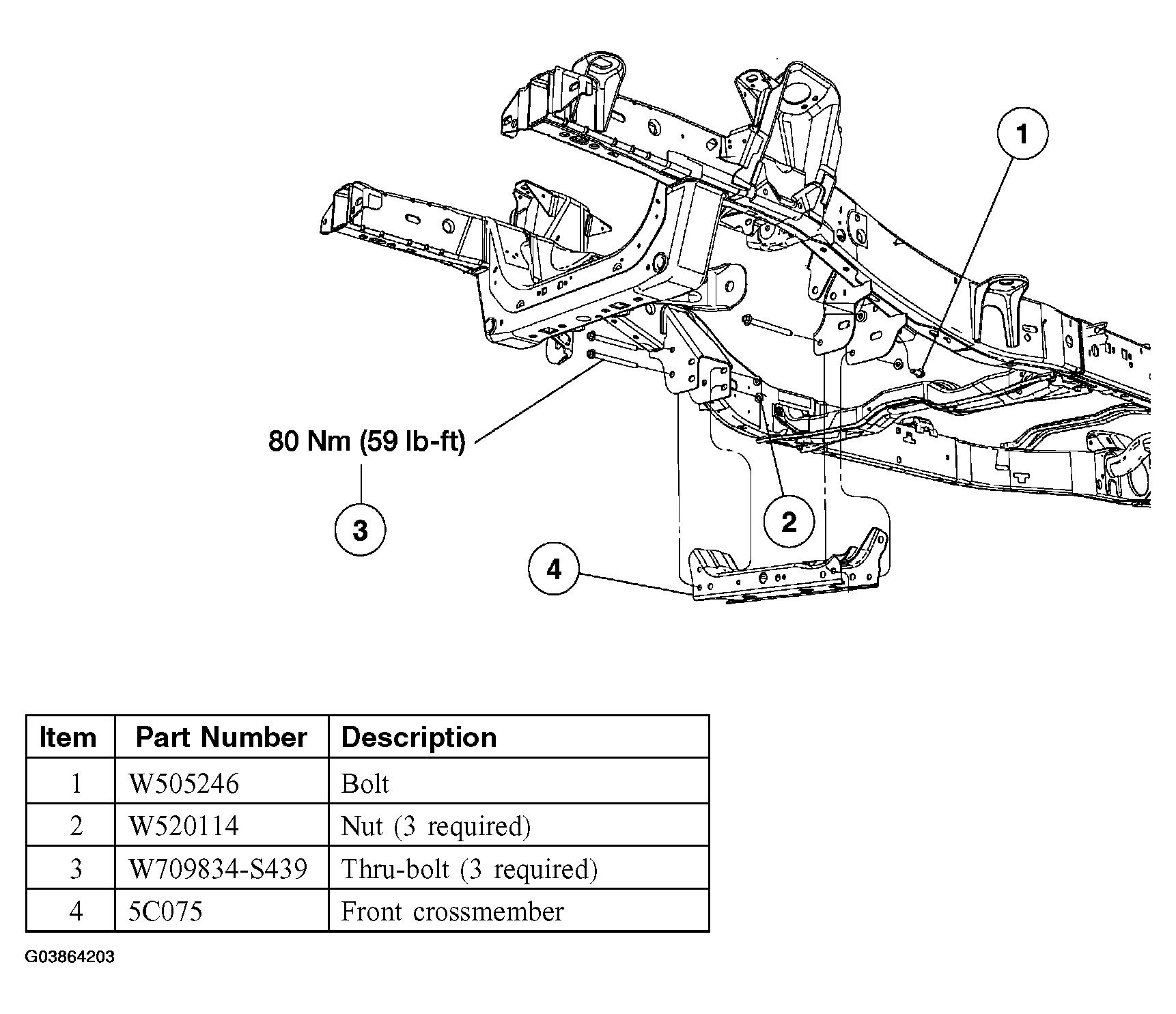

Fig 1: Identifying Front Crossmember Components

G03864203

Courtesy of FORD MOTOR CO.
