Home >> Lincoln >> 2005 >> Aviator AWD >> Repair and Diagnosis >> Body & Frame >> Frames, Subframes & Crossmembers >> Full Frame And Body Mounting >> Removal And Installation >> Body Support - Number 4 >> Notes

Body Support - Number 4: Notes

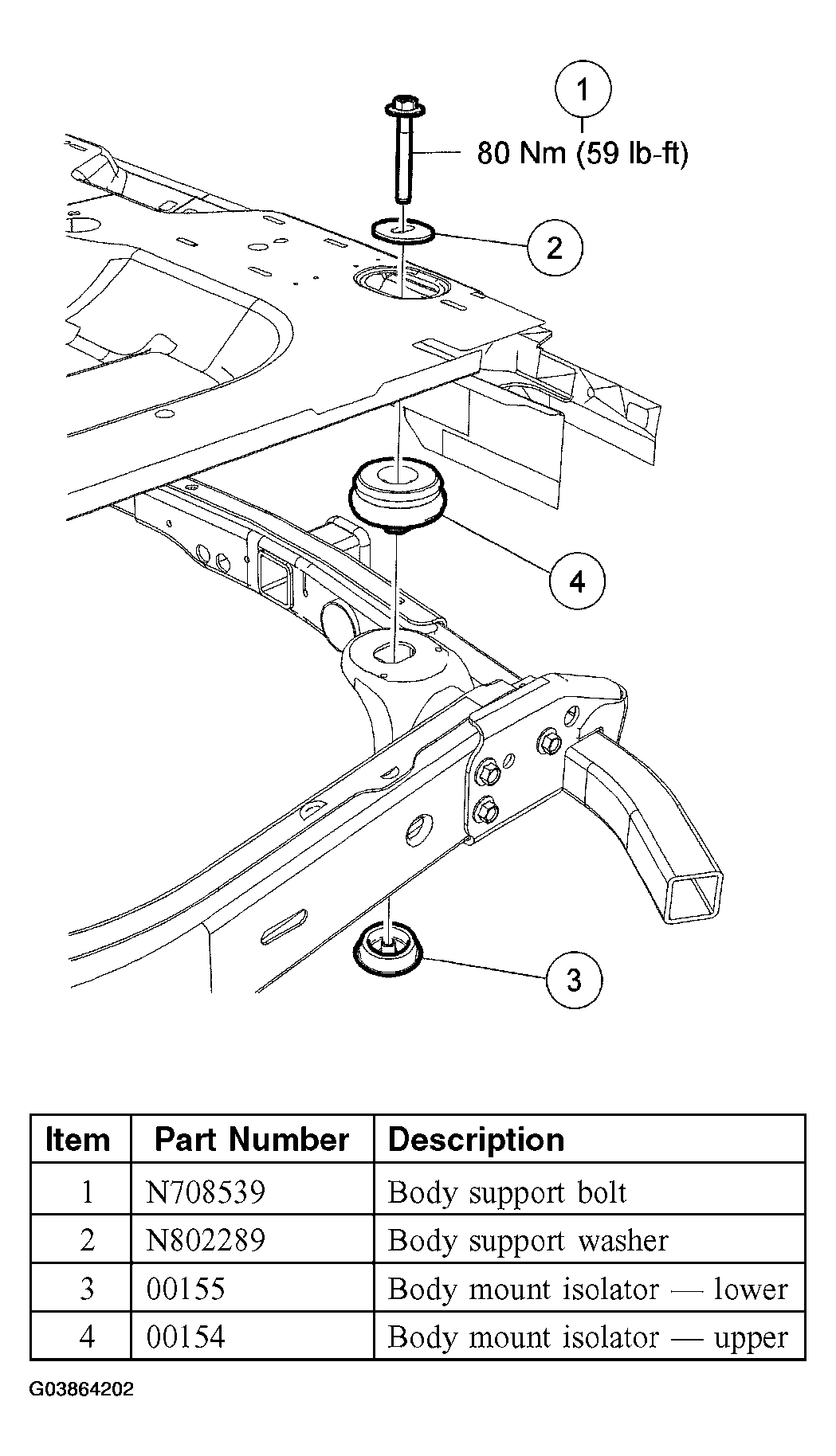

Fig 1: Identifying Body Support Components - Number 4

G03864202

Courtesy of FORD MOTOR CO.
