Body Support - Number 2: Notes

NOTE: Do not reuse body support mounting fasteners. New fasteners must be installed for each fastener that has been removed or loosened.

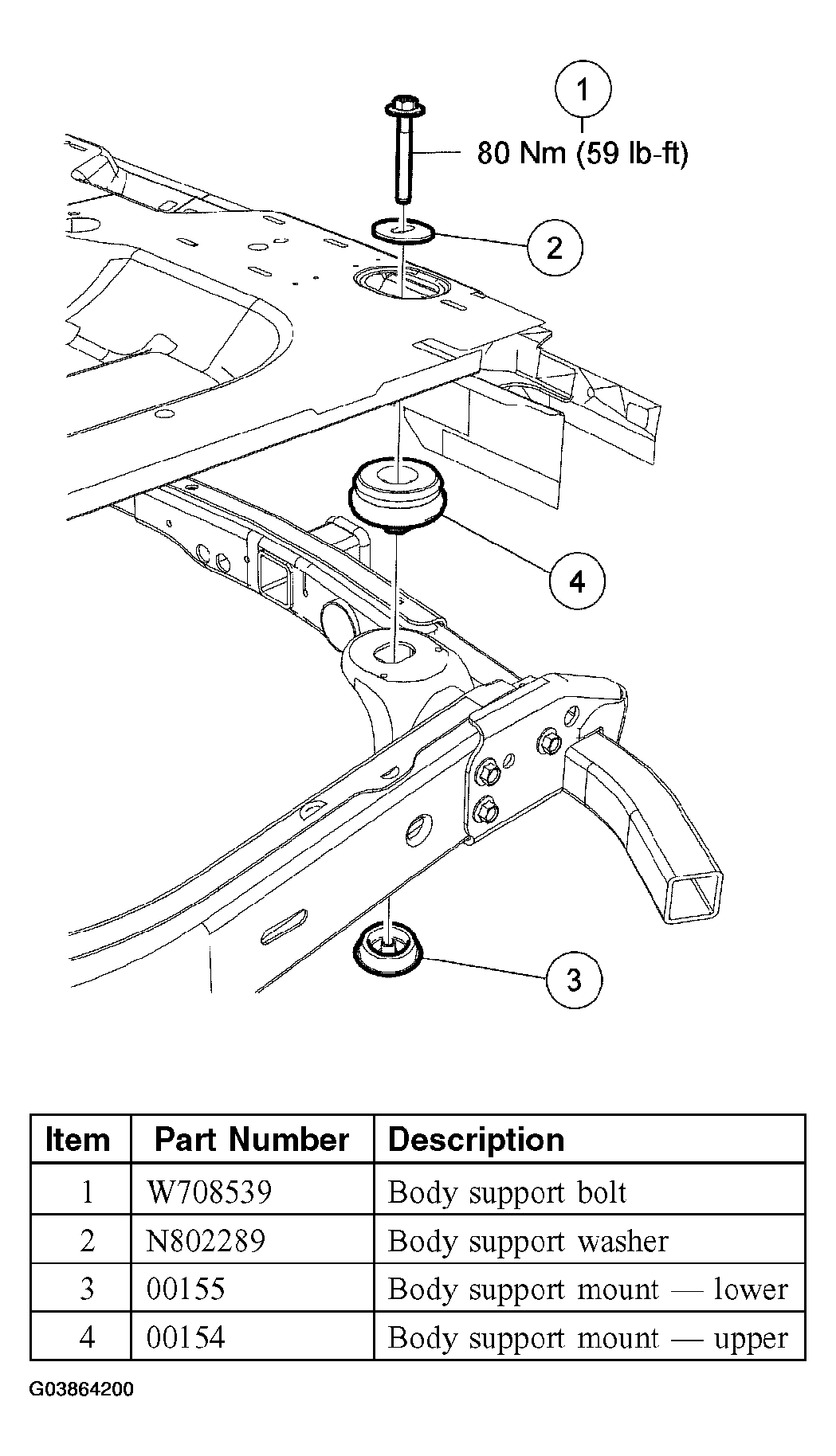

Fig 1: Identifying Body Support Components - Number 2
G03864200Courtesy of FORD MOTOR CO.
