Mike's Workshop Manuals
: Service manuals for every vehicle
Home
>>
Lincoln
>>
2004
>>
Town Car Protection Series
>>
Repair and Diagnosis
>>
Transmission
>>
Automatic Trans
>>
Automatic Transmission
>>
Disassembly And Assembly Of Subassemblies
>>
Pump And Intermediate Clutch Piston
>>
Pump And Intermediate Clutch Spring And Support - Disassembled View
Pump And Intermediate Clutch Spring And Support - Disassembled View

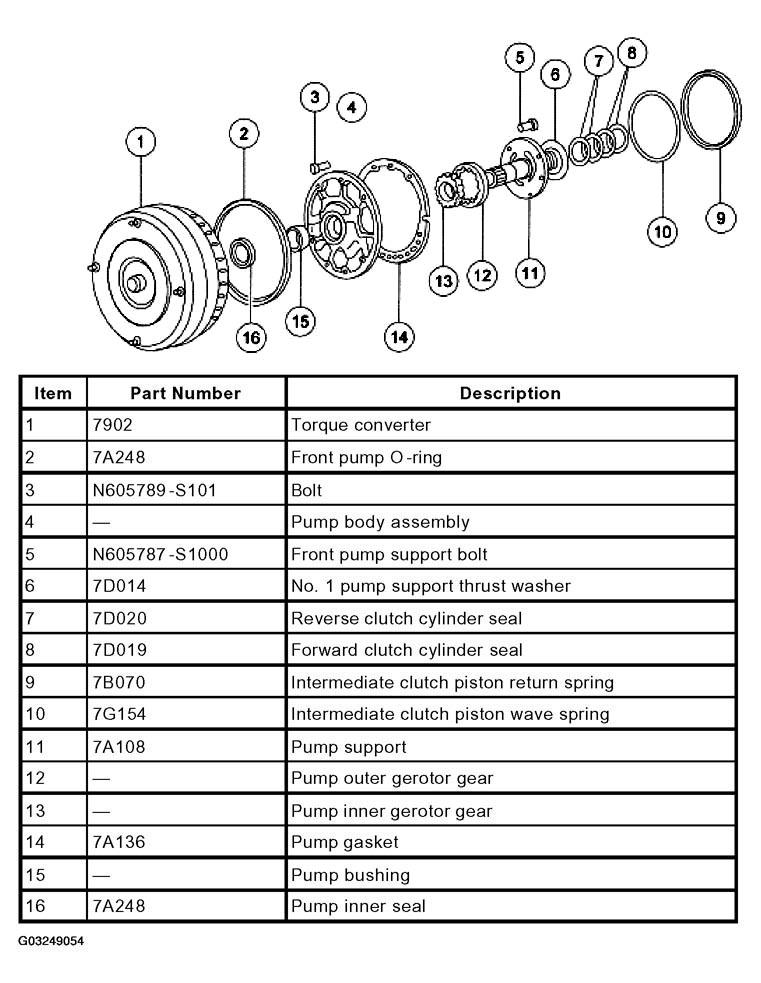

Fig 1: Pump And Intermediate Clutch Spring And Support - Disassembled View
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
