Inspection And Verification

Verify the customer concern.

Visually inspect for obvious signs of mechanical damage.

VISUAL INSPECTION

Mechanical	Electrical
Fluid level Tire pressure Tires Drive belt Drive belt tensioner Steering column alignment Tie rod ends Suspension components Steering column shaft U-joints Intermediate shaft bolts Power steering reservoir baffle Power steering reservoir filter Power steering pressure lines, fittings or O-rings Power steering return hoses and clamps Steering gear Power steering pump	Wiring Connectors

NOTE: The 3 areas that should be inspected for possible contamination are the power steering reservoir filter, flow control and pressure relief valve in the pump, and the check valve in the inlet port on the power steering gear (if equipped).

Inspect the power steering fluid for the following conditions:
- Aerated or foamy: Purge the power steering system. Refer to POWER STEERING SYSTEM PURGING .
- Overheating or contamination: Flush the power steering system. Refer to POWER STEERING SYSTEM FILLING .
Check the power steering system for fluid leaks.
- Check the power steering fluid level.
  NOTE: It may be necessary to add power steering fluid to achieve the correct level.

  With the ignition OFF:
- Wipe off the power steering pump, power steering pressure hose, power steering return hose, power steering fluid cooler, hose assembly and steering gear.
- Start the engine and turn the steering wheel from stop-to-stop several times and check for leaks.
- If a fluid leak from the steering line-to-steering gear clamp plate is evident, refer to POWER STEERING .
Inspect the power steering pressure and return hoses, fittings and O-rings for leaks.
- If a leak is detected at a power steering pressure or return hose, install a new hose. Refer to POWER STEERING .
- If a leak is detected between a fitting nut, seal the fitting nut using a Teflon® joint seal.
- If a leak is detected at a fitting or clamp plate, tighten to specification. If leak is still evident, visually inspect the fittings, clamp plate, O-rings, and Teflon® seals. Install new as necessary. Refer to POWER STEERING .
- If a leak is detected at the power steering reservoir, install a new reservoir. Refer to POWER STEERING .
- If a leak is detected at a constant tension spring clamp, verify that the hose is fully installed on the fitting and that the hose clamp is correctly positioned. If the leak remains, install a new screw clamp.
- If a leak is detected at a screw clamp joint, tighten the screw clamp. If the leak remains, inspect the tube end and install a new hose. Refer to POWER STEERING .
- If a leak is detected at the power steering pump, install a new power steering pump. Refer to POWER STEERING .
NOTE: To inspect for leaks it may be necessary to remove the squeeze-type clamp from the steering gear boots.
Inspect the power steering gear for leaks. If a leak is detected at the power steering gear, install a new power steering gear. Refer to POWER STEERING .

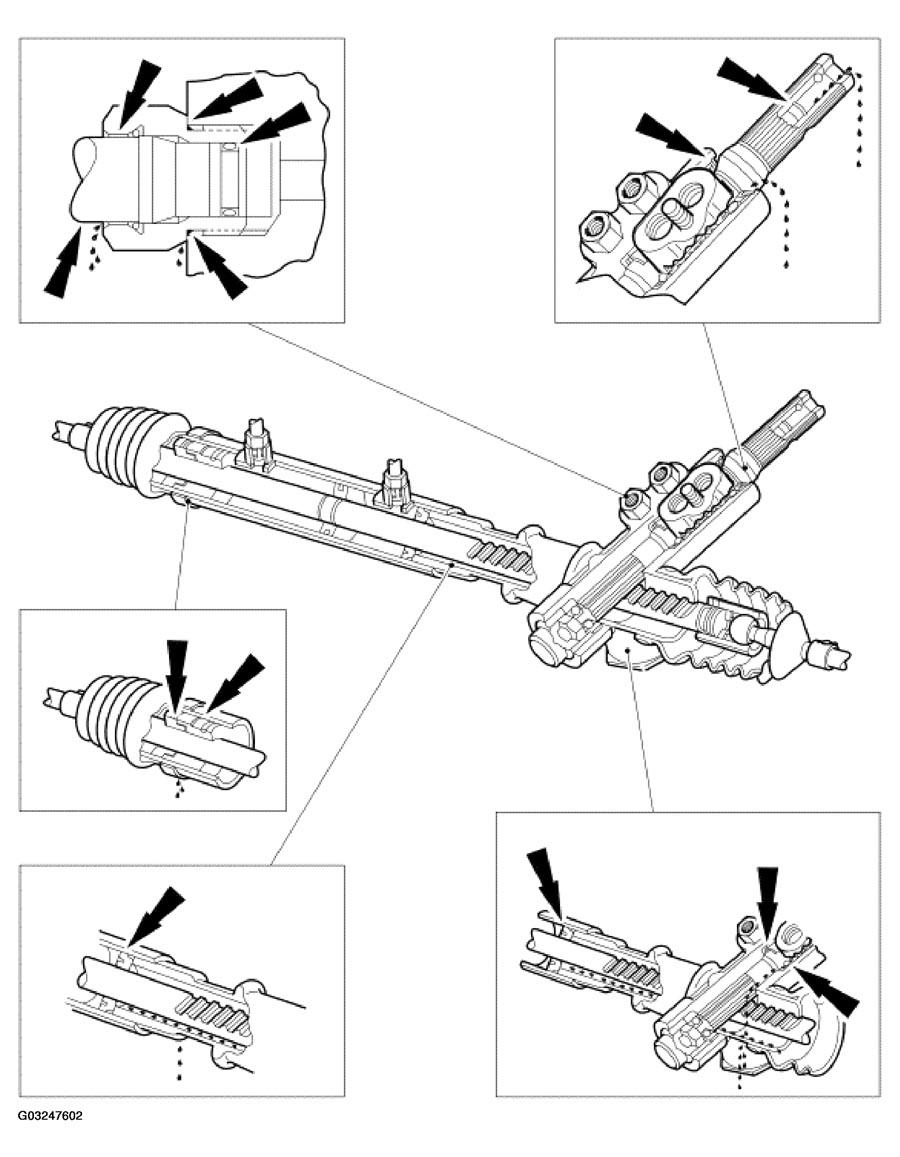

Fig 1: Identifying Potential Power Rack-and-Pinion Steering Gear Leak Points
Courtesy of FORD MOTOR CO.
If an obvious cause for an observed or reported concern is found, correct the cause before proceeding to the next step.
If the concern remains after the inspection, connect the diagnostic tool to the data link connector (DLC) located beneath the instrument panel, and select the vehicle to be tested from the diagnostic tool menu. If the diagnostic tool does not communicate with the vehicle:
- Check that the program card is correctly installed.
- Check the connections to the vehicle.
- Check the ignition switch position.
If the diagnostic tool still does not communicate with the vehicle, refer to the tester manual.
Carry out the diagnostic tool data link test. If the diagnostic tool responds with:
- SCP or ISO; all electronic control units no response/not equipped, refer to MODULE COMMUNICATIONS NETWORK .
- No response/not equipped for air suspension module, refer to MODULE COMMUNICATIONS NETWORK .
- System passed, retrieve and record the continuous diagnostic trouble codes (DTCs), erase the continuous DTCs and carry out the self-test diagnostics for the FEM.
If the DTCs retrieved are related to the concern, go to AIR SUSPENSION MODULE DIAGNOSTIC TROUBLE CODE (DTC) INDEX table to continue diagnostics.
If no DTCs related to the concern are retrieved, proceed to next step to continue diagnostics.
If an obvious cause for an observed or reported concern is found, correct the cause before proceeding to the next step.

If the cause is not visually evident, verify the symptom and GO to SYMPTOM CHART .

AIR SUSPENSION MODULE DIAGNOSTIC TROUBLE CODE (DTC) INDEX

DTC	Description	Source	Action
C1897	Steering VAPS Circuit Loop Failure	Circuit, Valve Solenoid, Air Suspension Module	Go To PINPOINT TEST E: DTC 1897 - STEERING VAPS CIRCUIT LOOP FAILURE .
U1041	Invalid or Missing Data for Vehicle Speed	SCP	REFER to MODULE CONFIGURATION .
U1062	Invalid or Missing Data for Engine RPM	SCP	REFER to MODULE CONFIGURATION .
U1123	Invalid or Missing Data for Odometer	SCP	REFER to MODULE CONFIGURATION .
U1199	Invalid or Missing Data for External Access (Doors)	SCP	REFER to MODULE CONFIGURATION .
B1317	Battery Voltage High	Air Suspension Module	REFER to VEHICLE DYNAMIC SUSPENSION .
B1318	Battery Voltage Low	Air Suspension Module	REFER to VEHICLE DYNAMIC SUSPENSION .
B1342	ECU is Defective	Air Suspension Module	REFER to VEHICLE DYNAMIC SUSPENSION .
B2477	Module Configuration Failure	Air Suspension Module	REFER to MODULE CONFIGURATION .
