SJB C2280c

WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.

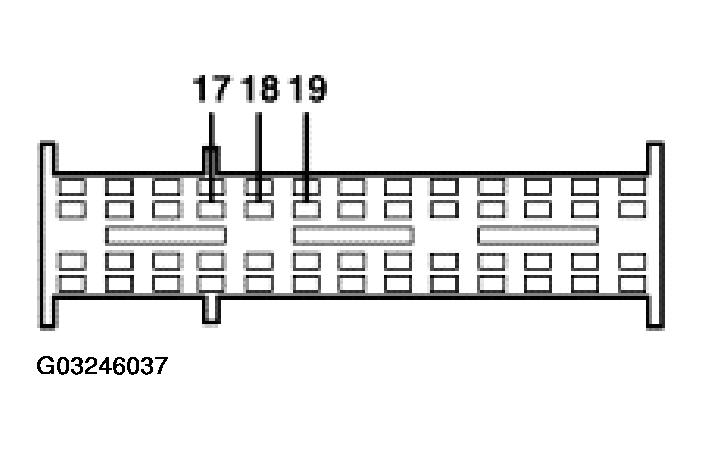

SJB C2280c

G03246037
Pin Number (s) Circuit Designation/Description Normal Condition/Measurement
17 1351 (TN) liftgate ajar switch power 10,000 ohms or greater between the SJB and ground with the liftgate ajar switch disconnected. 5 ohms or less between the SJB and the liftgate ajar switch C479-B or C4174a-1 with power liftgate.
18 1433 (DB/LG) RH sliding door ajar switch power 10,000 ohms or greater between the SJB and ground with the RH sliding door ajar switch disconnected. 5 ohms or less between the SJB and the RH sliding door ajar switch C398-1.
19 1432 (WH/VT) LH sliding door ajar switch power 10,000 ohms or greater between the SJB and ground with the LH sliding door ajar switch disconnected. 5 ohms or less between the SJB and the LH sliding door ajar switch C397-1.
