SJB C2280b
WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.

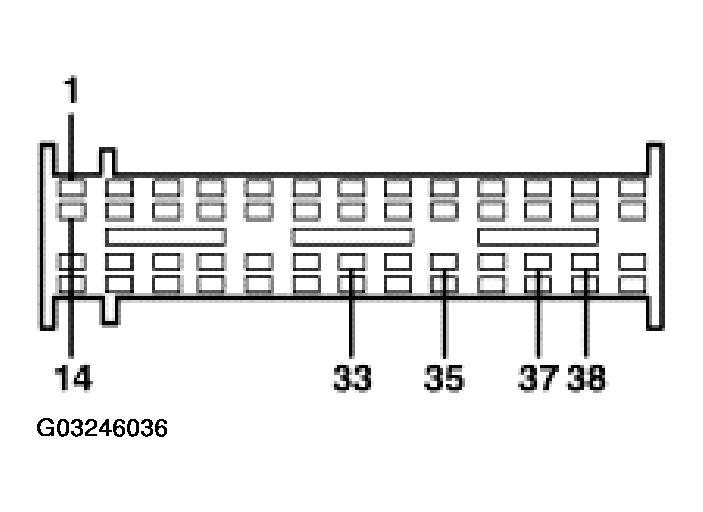

SJB C2280b
| Pin Number (s) | Circuit Designation/Description | Normal Condition/Measurement |
|---|---|---|
| 1 | 1410 (TN/OG) dimmer switch signal return | 10,000 ohms or greater between the SJB and ground. 5 ohms or less between the SJB and the dimmer switch C2065-4. |
| 14 | 1404 (YE) dome lamp switch ON input circuit. | 10,000 ohms or greater between the SJB and ground. 5 ohms or less between the SJB and the dimmer switch C2065-5. |
| 33 | 1314 (YE/LG) passenger door ajar switch power | 10,000 ohms or greater between the SJB and ground with the passenger door ajar switch disconnected. 5 ohms or less between the SJB and the passenger door ajar switch C602-2. |
| 35 | 1458 (VT/WH) RH approach lamp power | 10,000 ohms or greater between the SJB and ground with the RH approach lamp disconnected. 5 ohms or less between the SJB and the RH approach lamp C625-7 or C626-7 with memory mirrors. |
| 37 | 1459 (YE/WH) LH footwell lamp power | 10,000 ohms or greater between the SJB and ground with the LH footwell lamp disconnected. 5 ohms or less between the SJB and the LH footwell lamp C2056-1. |
| 38 | 1459 (YE/WH) RH footwell lamp power | 10,000 ohms or greater between the SJB and ground with the RH footwell lamp disconnected. 5 ohms or less between the SJB and the RH footwell lamp C2057-1. |
