SJB 2280h

WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.

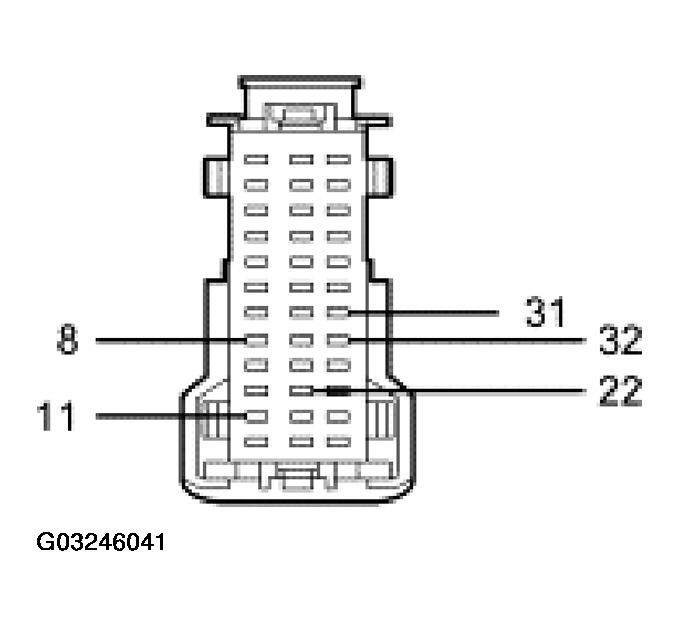

SJB 2280h

G03246041
Pin Number (s) Circuit Designation/Description Normal Condition/Measurement
8 1205 (BK) SJB ground 5 ohms or less between the SJB and ground.
11 1523 (DG) SJB power Battery voltage at all times. 10 volts or greater between the SJB and ground. 10,000 ohms or greater between the SJB and ground.
22 1205 (BK) SJB ground 5 ohms or less between the SJB and ground.
31 1524 (DB) SJB power Battery voltage at all times. 10 volts or greater between the SJB and ground. 10,000 ohms or greater between the SJB and ground.
32 1052 (TN/BK) SJB power Battery voltage at all times. 10 volts or greater between the SJB and ground. 10,000 ohms or greater between the SJB and ground.
