Liftgate Ajar Switch C479

WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.
LIFTGATE AJAR SWITCH C479

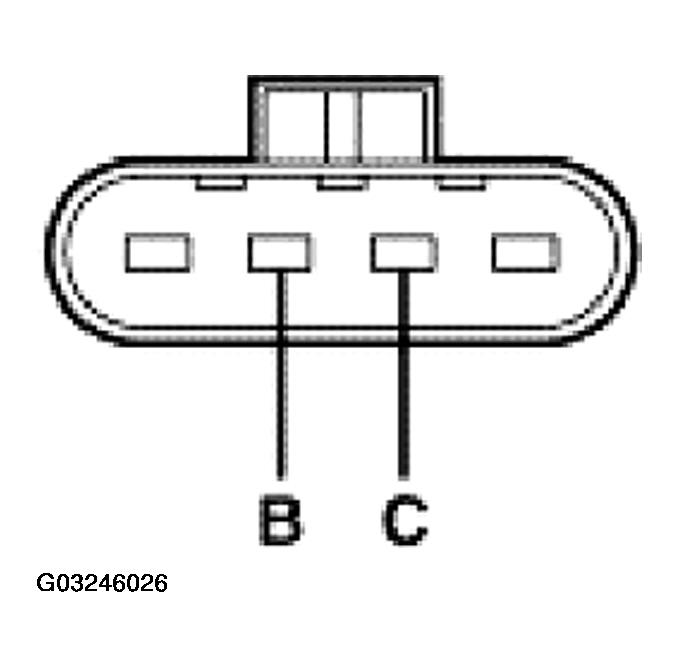

G03246026
Pin Number (s) Circuit Designation/Description Normal Condition/Measurement
B 1351 (TN) liftgate ajar switch power 10 volts or greater between the liftgate ajar switch and ground. 10,000 ohms or greater between the liftgate ajar switch and ground with the liftgate ajar switch disconnected. 5 ohms or less between the liftgate ajar switch and the SJB C2280c-17.
C 1205 (BK) liftgate ajar switch ground 5 ohms or less between the liftgate ajar switch and ground.
