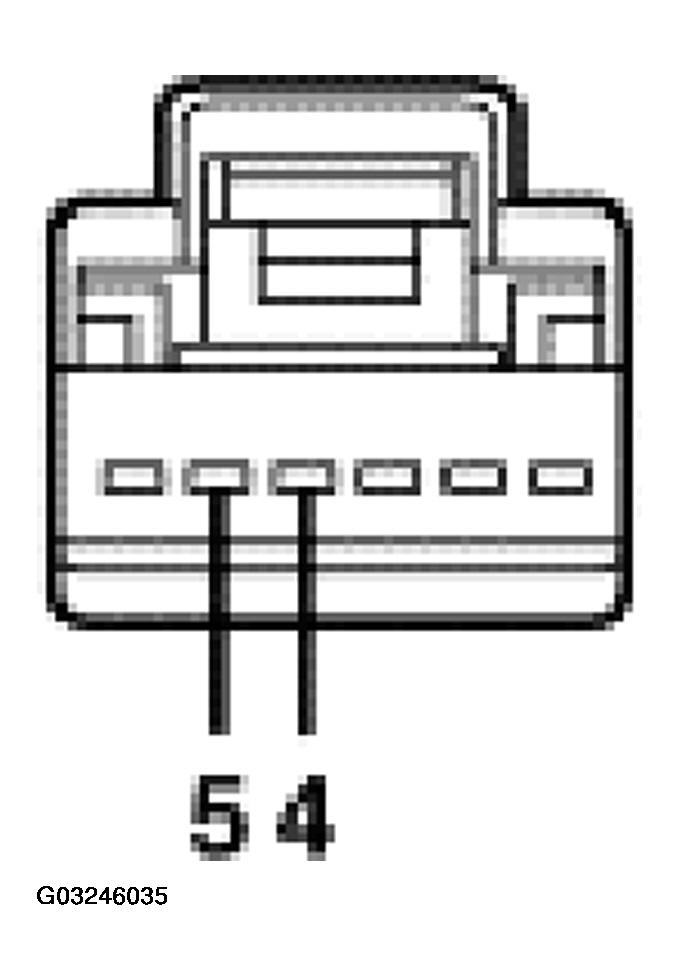

DIMMER SWITCH C2065
| Pin Number (s) | Circuit Designation/Description | Normal Condition/Measurement |
|---|---|---|
| 4 | 1410 (TN/OG) dimmer switch ground return to the SJB | 5 ohms or less between the dimmer switch and SJB C2280b-1. 10,000 ohms or greater between the dimmer switch and ground with the SJB disconnected. |
| 5 | 1404 (YE) dimmer switch power | 10 volts or greater between the dimmer switch and ground. 10,000 ohms or greater between the dimmer switch and ground. 5 ohms or less between the dimmer switch and the SJB C2280b-14. |
