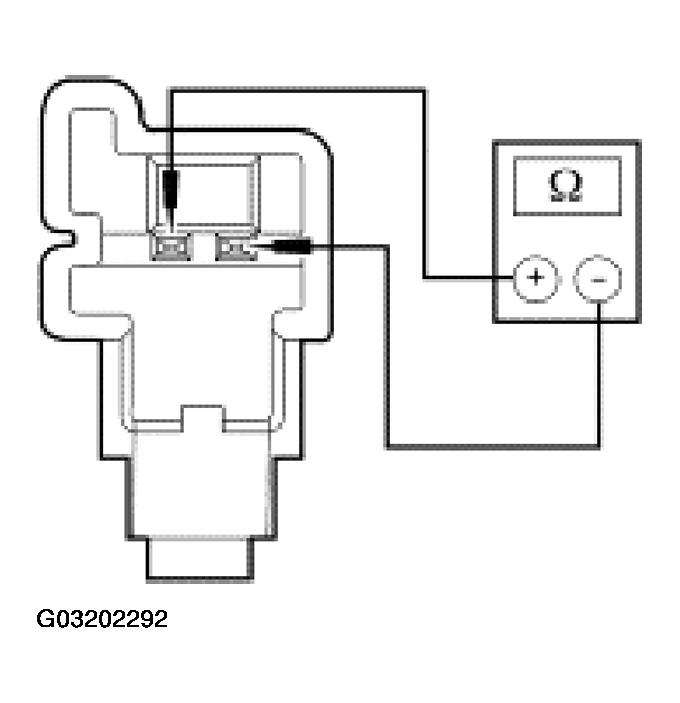

A/C Evaporator Discharge Temperature Sensor
WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.
TEMPERATURE RESISTANCE REFERENCE
| Temperature | Resistance |
|---|---|
| -40°C (-40°F) | 832,500-1,017,500 ohms |
| -20°C (-4°F) | 263,100-290,800 ohms |
| 0°C (32°F) | 91,050-100,600 ohms |
| 20°C (68°F) | 35,500-39,000 ohms |
| 25°C (77°F) | 28,500-31,500 ohms |
| 40°C (104°F) | 15,300-16,900 ohms |
| 60°C (140°F) | 7,170-7,930 ohms |
| 100°C (212°F) | 1,975-2,185 ohms |
| 120°C (248°F) | 1,130-1,250 ohms |
