Fuel Line Fittings - Push Release Connector: Connect

  1. Inspect the fitting and the tube for damage. Remove any dirt or obstructions.
  2. Apply a light coat of clean engine oil to the male tube end.
  3. Insert the tube in the fitting and push them together until a click is heard.

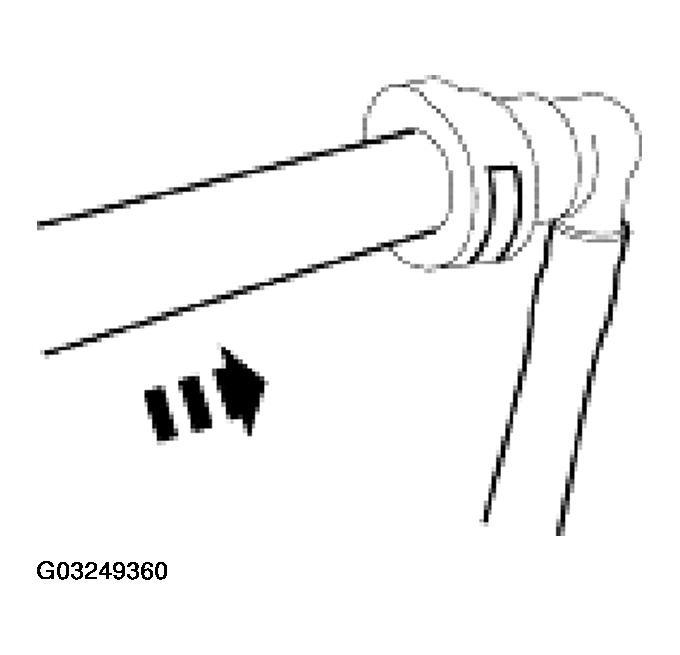

    Fig 1: Connecting Push Release Connector Fitting
    G03249360Courtesy of FORD MOTOR CO.
  4. Pull on the connection to make sure it is fully engaged.
