Pinpoint Test A: No Communication With The 4WAS Module/Unable To Enter Self-Test

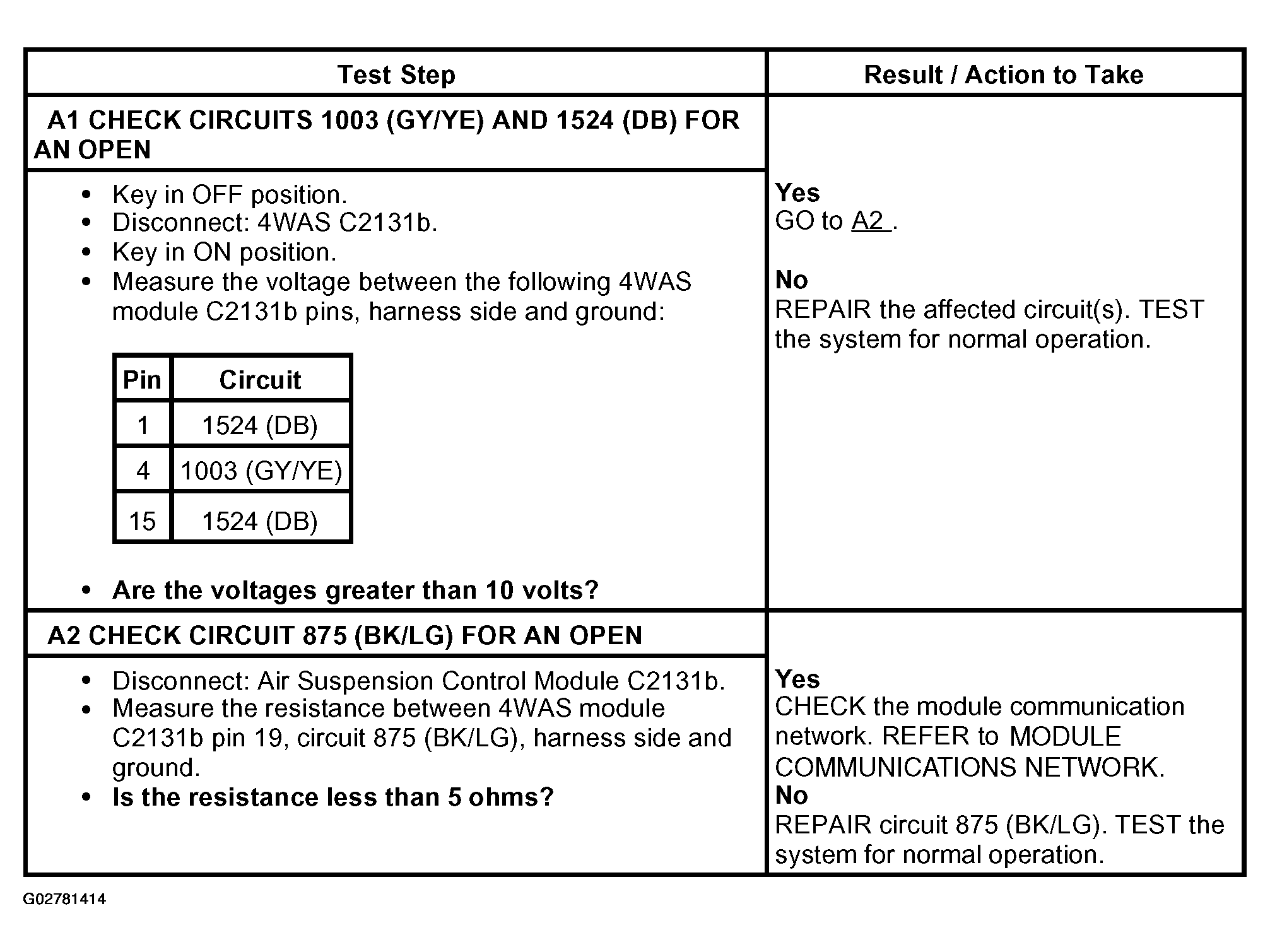

Fig 1: Pinpoint Test A: No Communication With 4WAS Module/Unable To Enter Self-Test

G02781414

Courtesy of FORD MOTOR CO.
