Safety Belt System
>>
Diagnosis And Testing
>>
Safety Belt System
>>
Symptom Chart
Symptom Chart

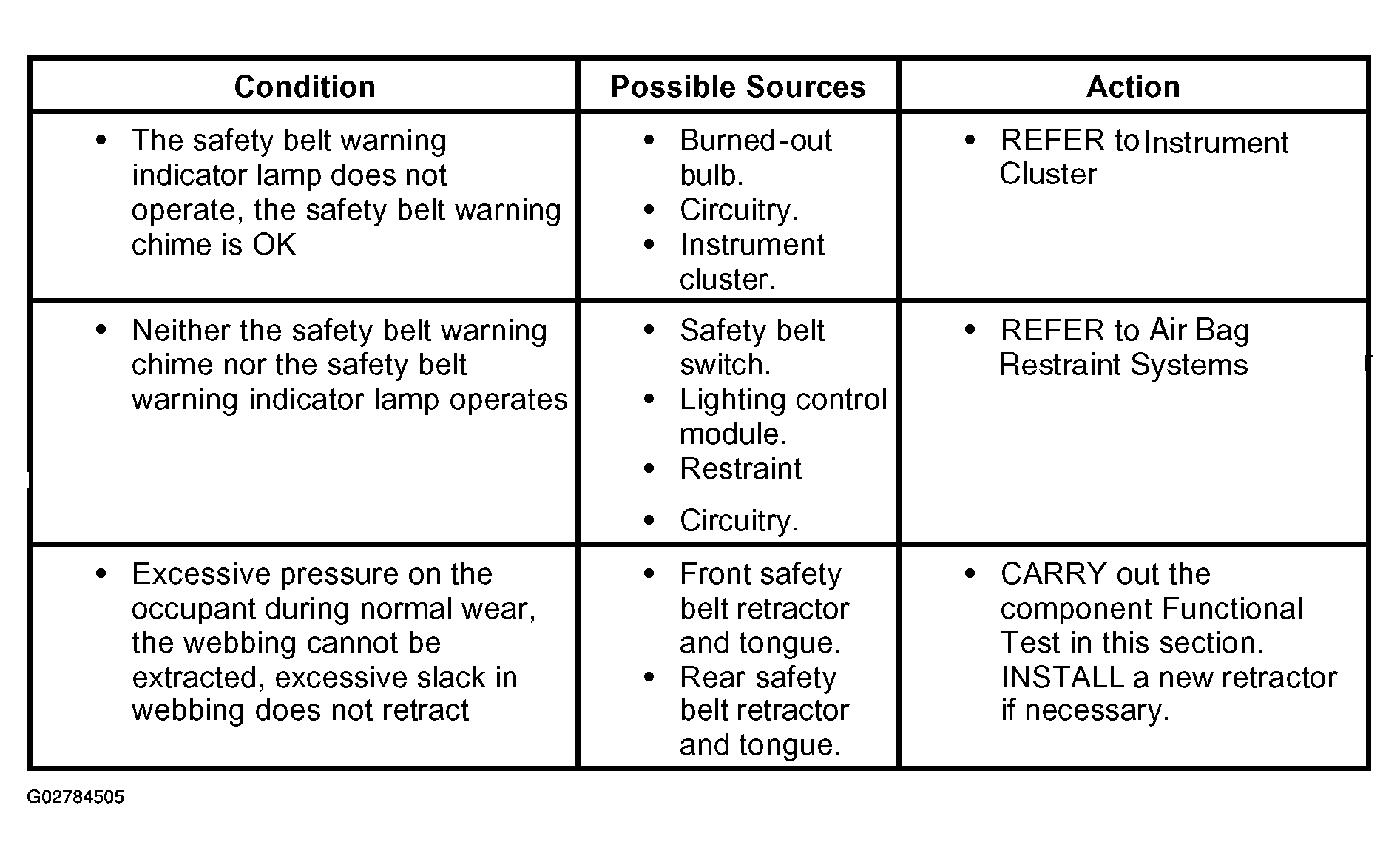

Fig 1: Symptom Chart
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
