Identifying Connector (C3036a)

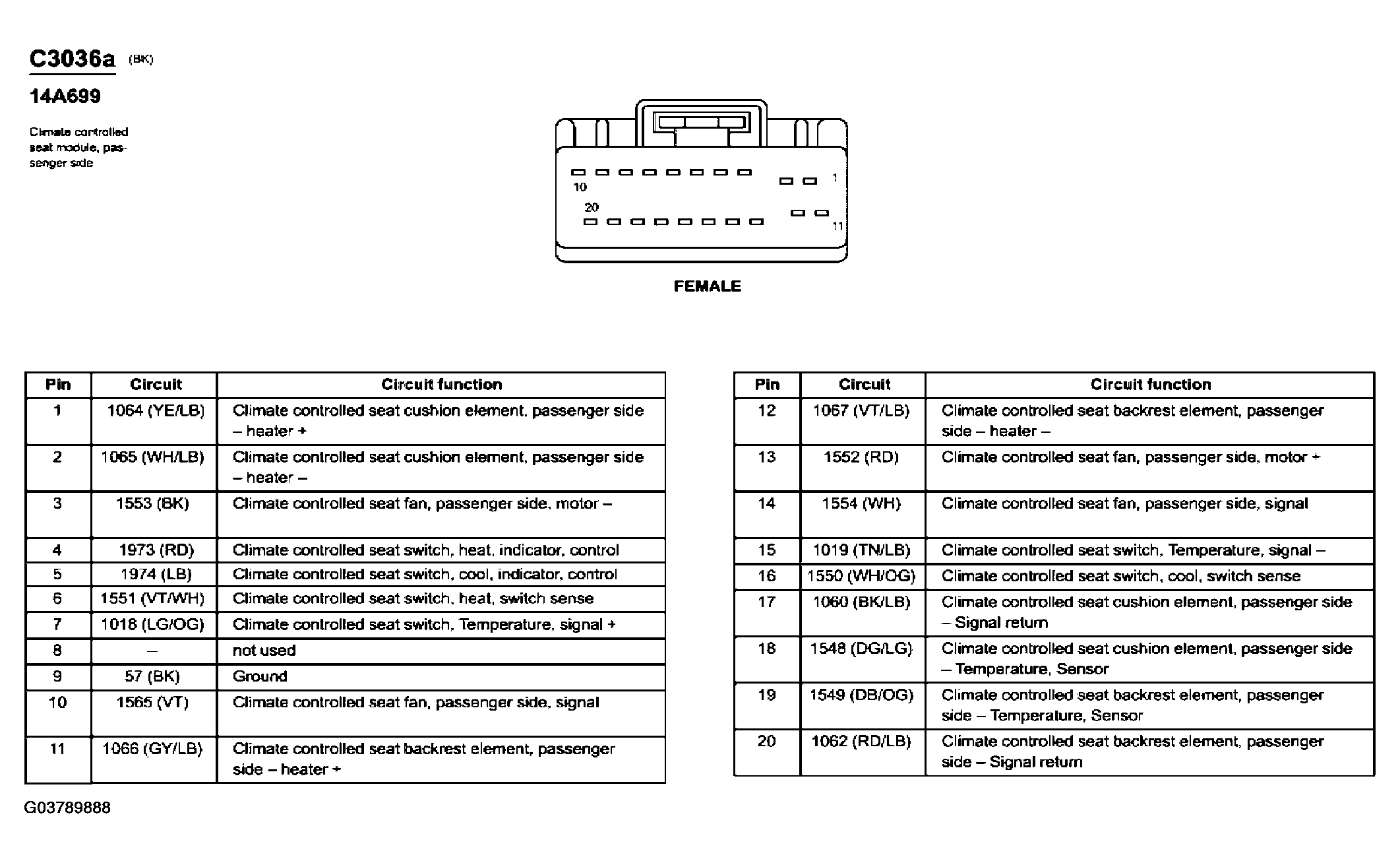

Fig 1: Climate Controlled Seat Module, Passenger Side Connector End View (C3036a)

G03789888

Courtesy of FORD MOTOR CO.
