Identifying Connector (C175e)

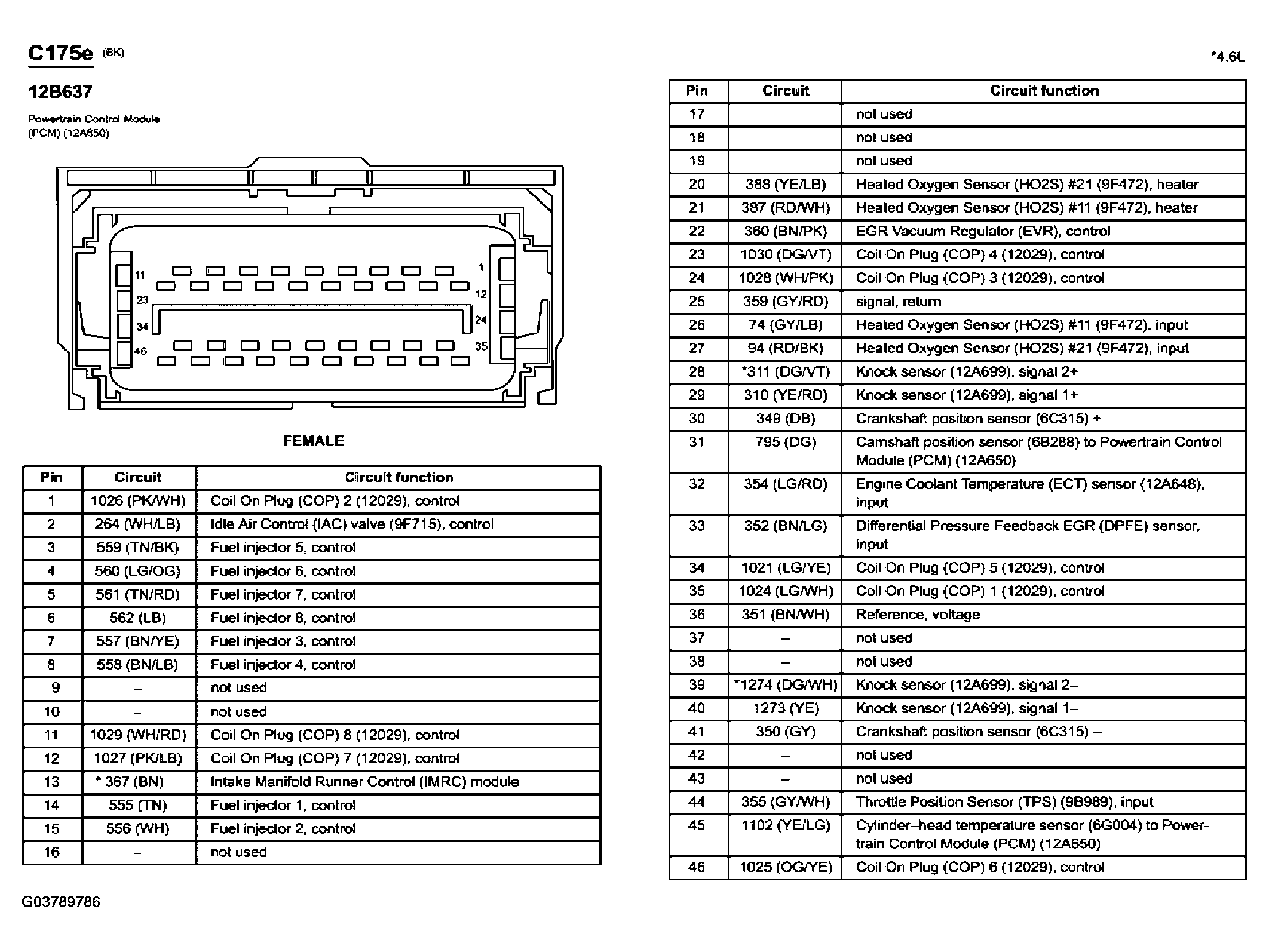

Fig 1: Powertrain Control Module (PCM) Connector End View (C175e)

G03789786

Courtesy of FORD MOTOR CO.
