PINPOINT TEST B: THE SPEED CONTROL IS INOPERATIVE-NO DTCs

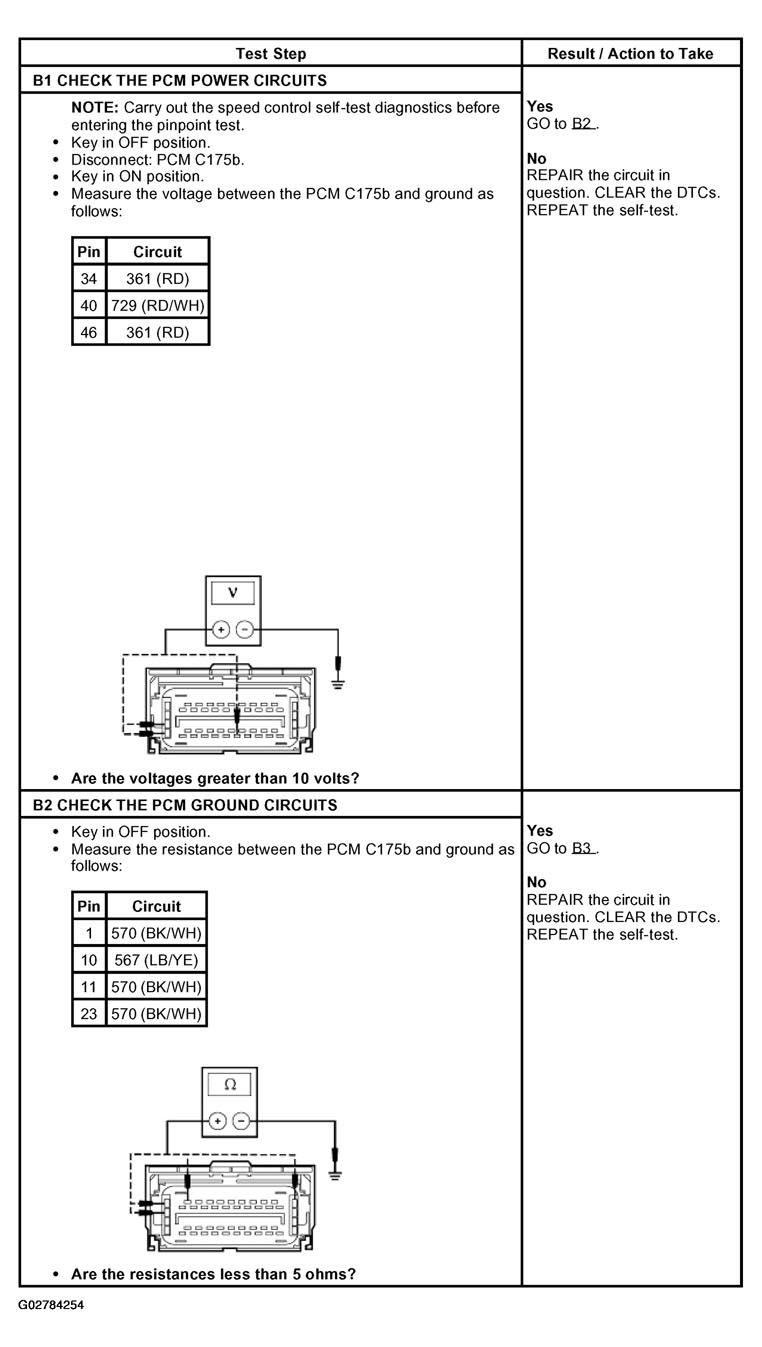

Fig 1: Pinpoint Test B: Speed Control Is Inoperative-No DTCs (Steps B1-B2)

Courtesy of FORD MOTOR CO.

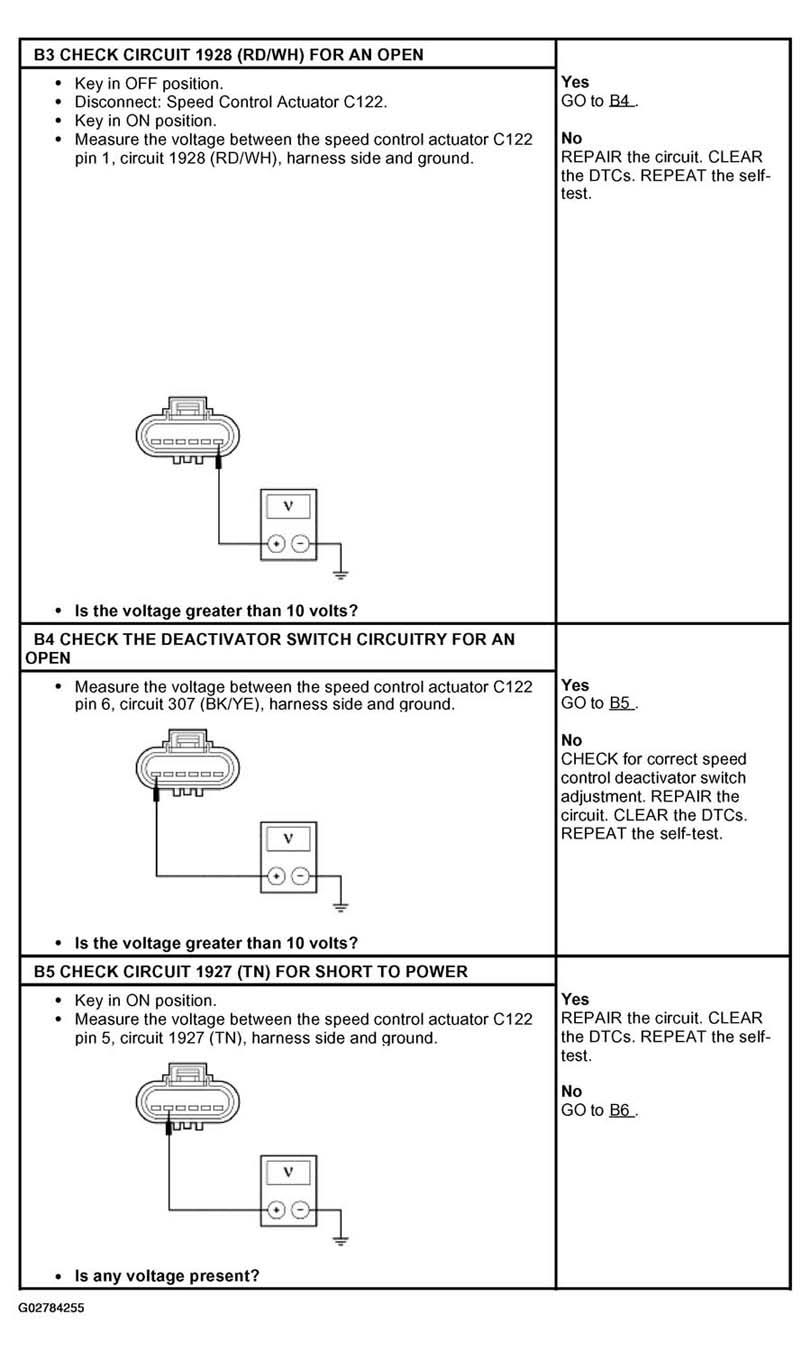

Fig 2: Pinpoint Test B: Speed Control Is Inoperative-No DTCs (Steps B3-B5)

Courtesy of FORD MOTOR CO.

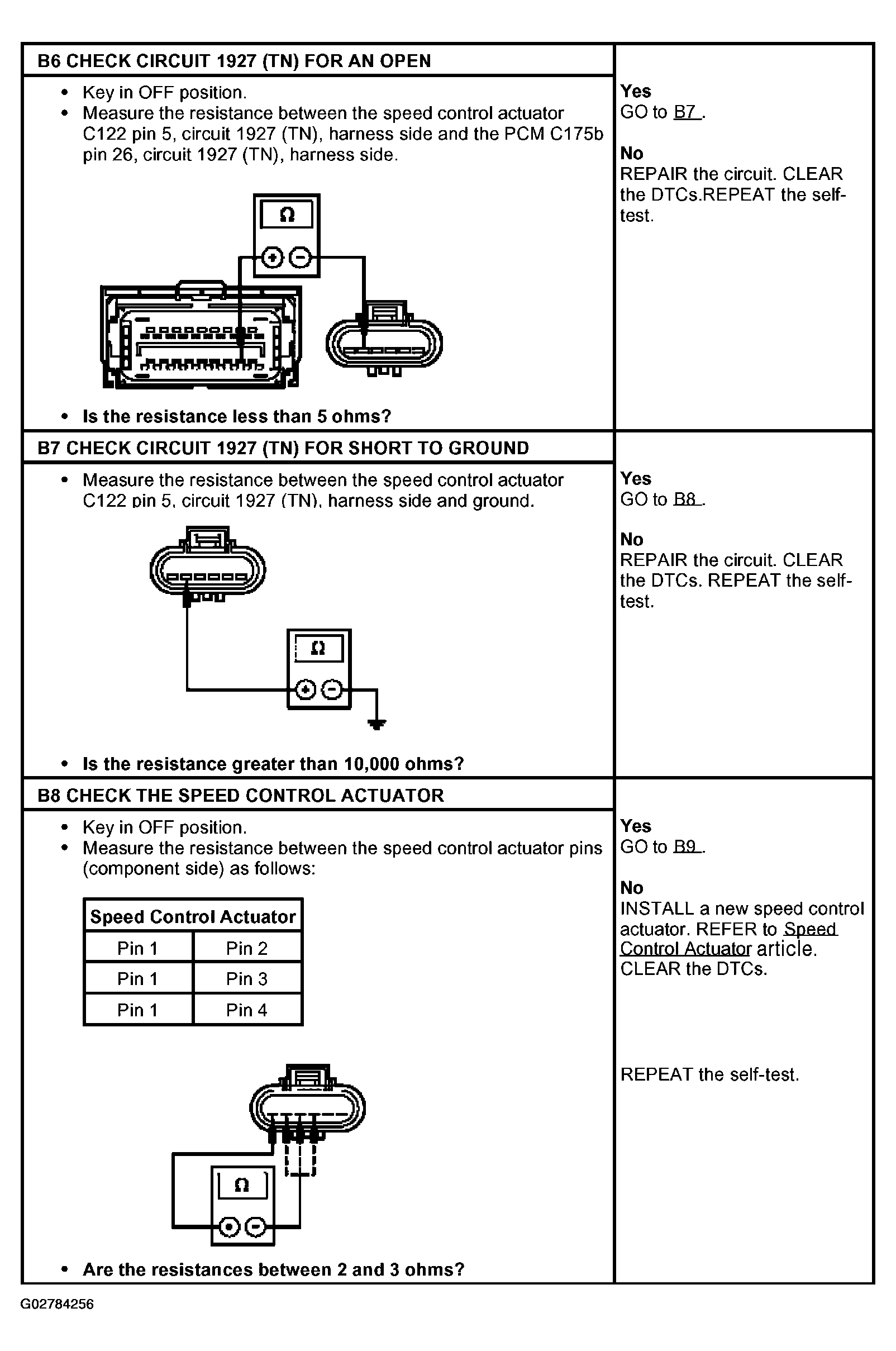

Fig 3: Pinpoint Test B: Speed Control Is Inoperative-No DTCs (Steps B6-B8)

Courtesy of FORD MOTOR CO.

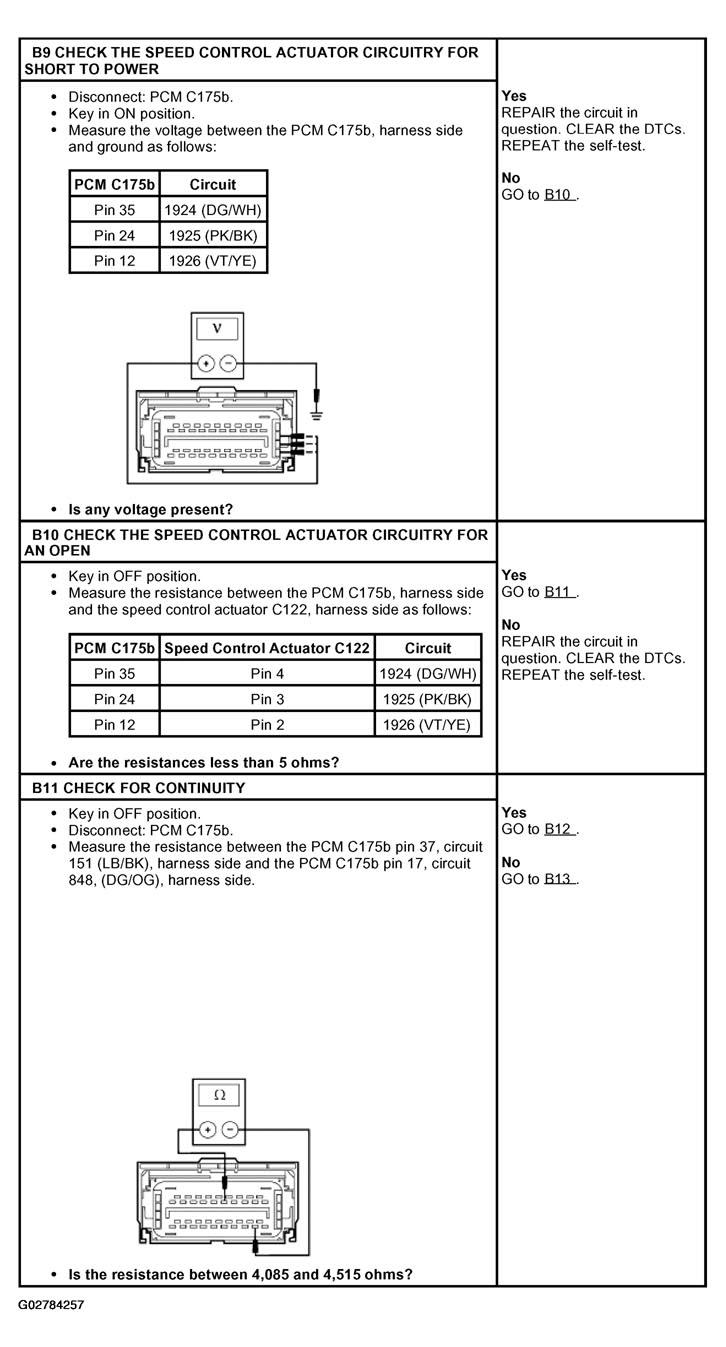

Fig 4: Pinpoint Test B: Speed Control Is Inoperative-No DTCs (Steps B9-B11)

Courtesy of FORD MOTOR CO.

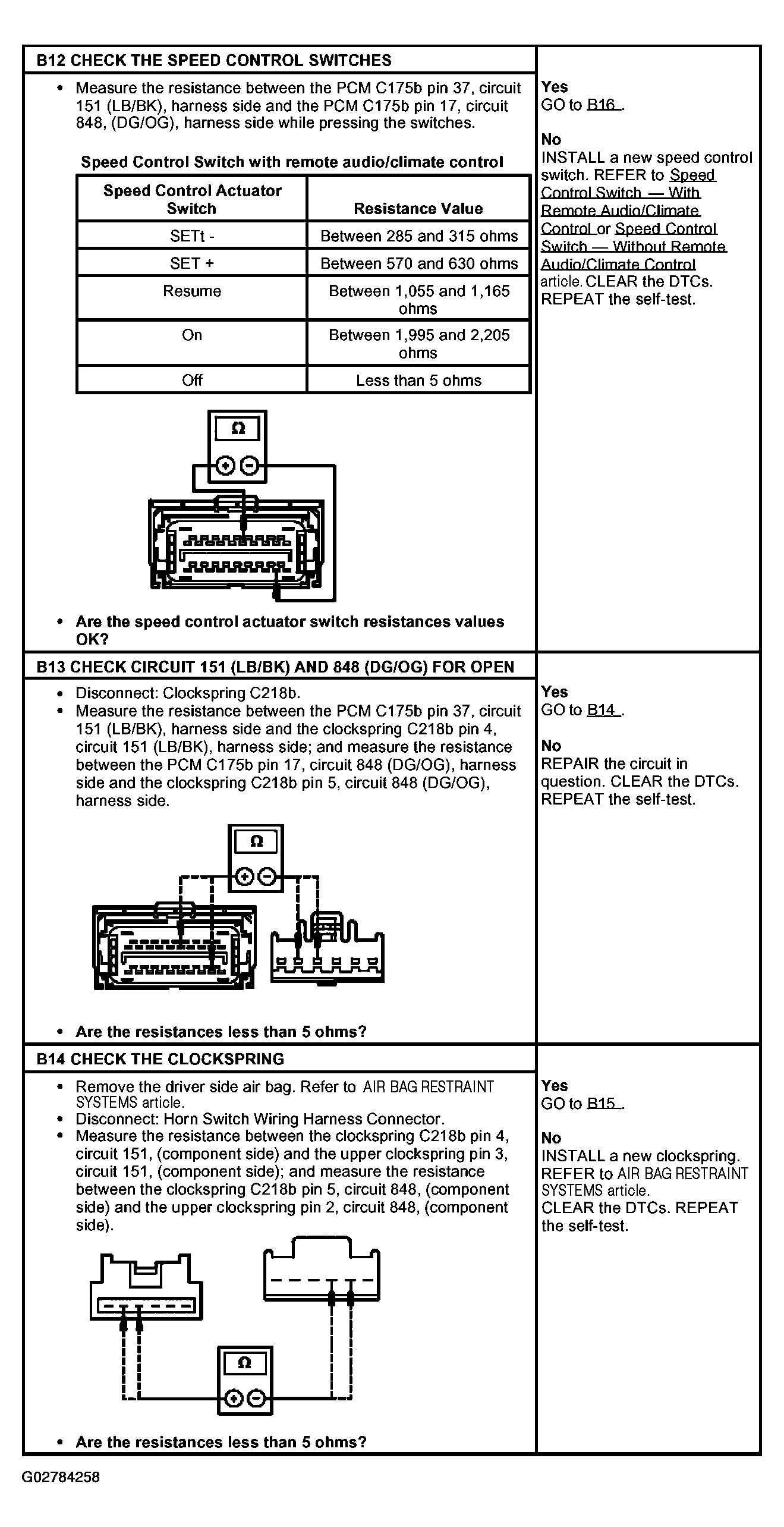

Fig 5: Pinpoint Test B: Speed Control Is Inoperative-No DTCs (Steps B12-B14)

Courtesy of FORD MOTOR CO.

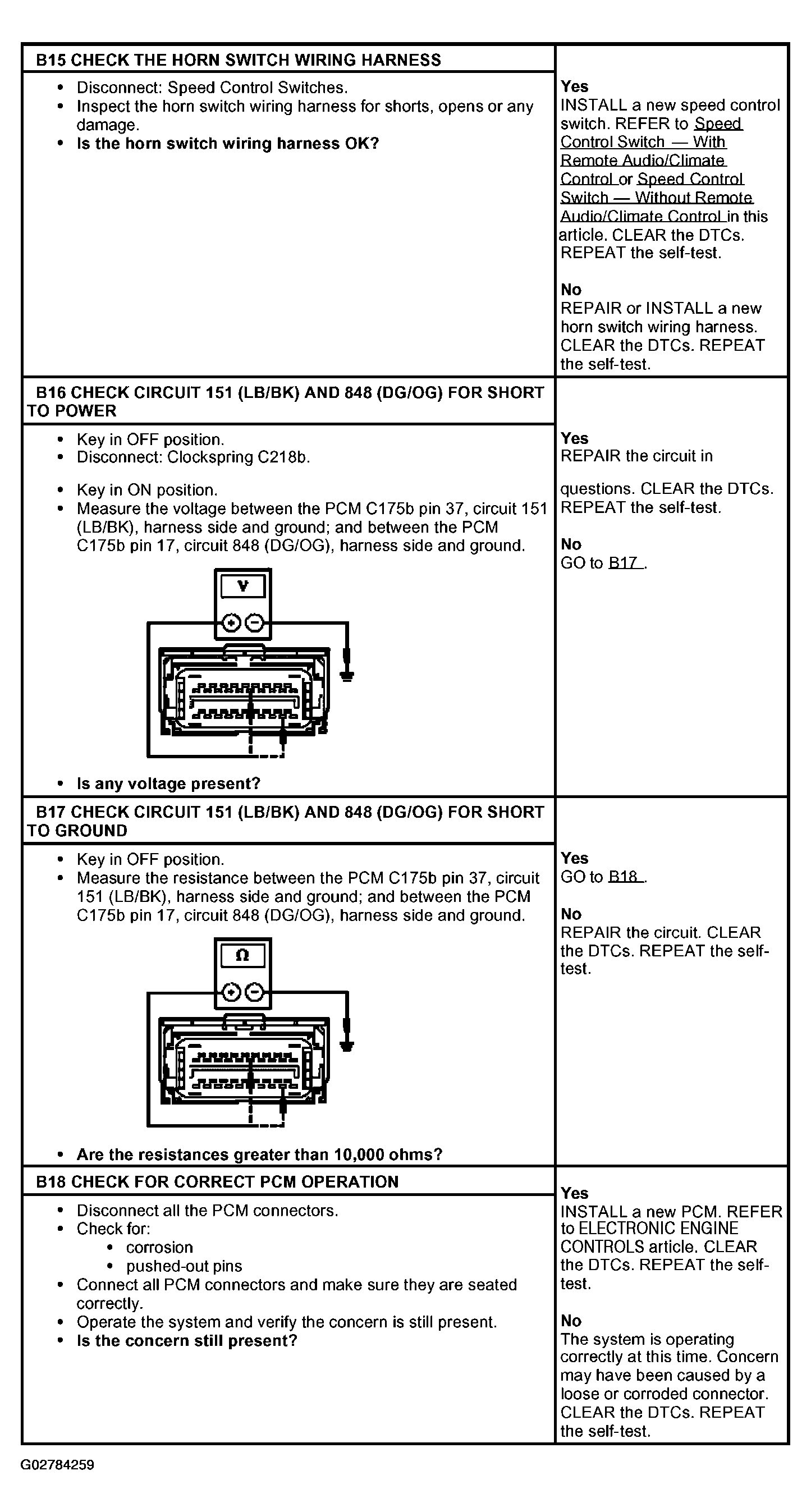

Fig 6: Pinpoint Test B: Speed Control Is Inoperative-No DTCs (Steps B15-B18)

Courtesy of FORD MOTOR CO.
