Pinpoint Test B: DTC B1483, Brake Pedal Input Circuit Failure

CAUTION: Use the Flex Probe Kit for all test connections to prevent damage to the wiring terminals. Do not use standard multimeter probes.

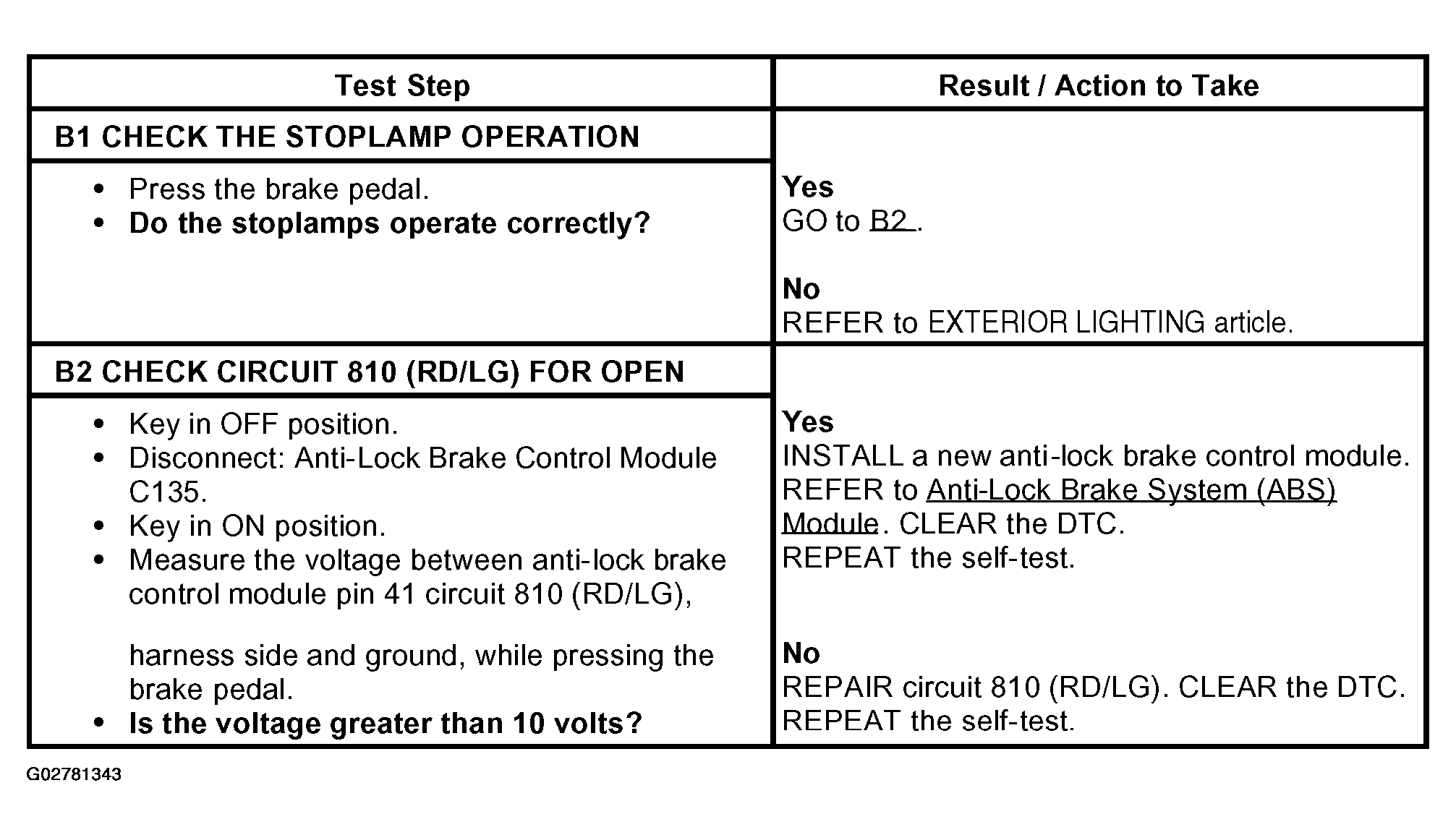

Fig 1: Pinpoint Test B - Brake Pedal Input Circuit Failure (B1-B2)
G02781343Courtesy of FORD MOTOR CO.
