Pinpoint Test D: The Speed Control Switches Are Inoperative

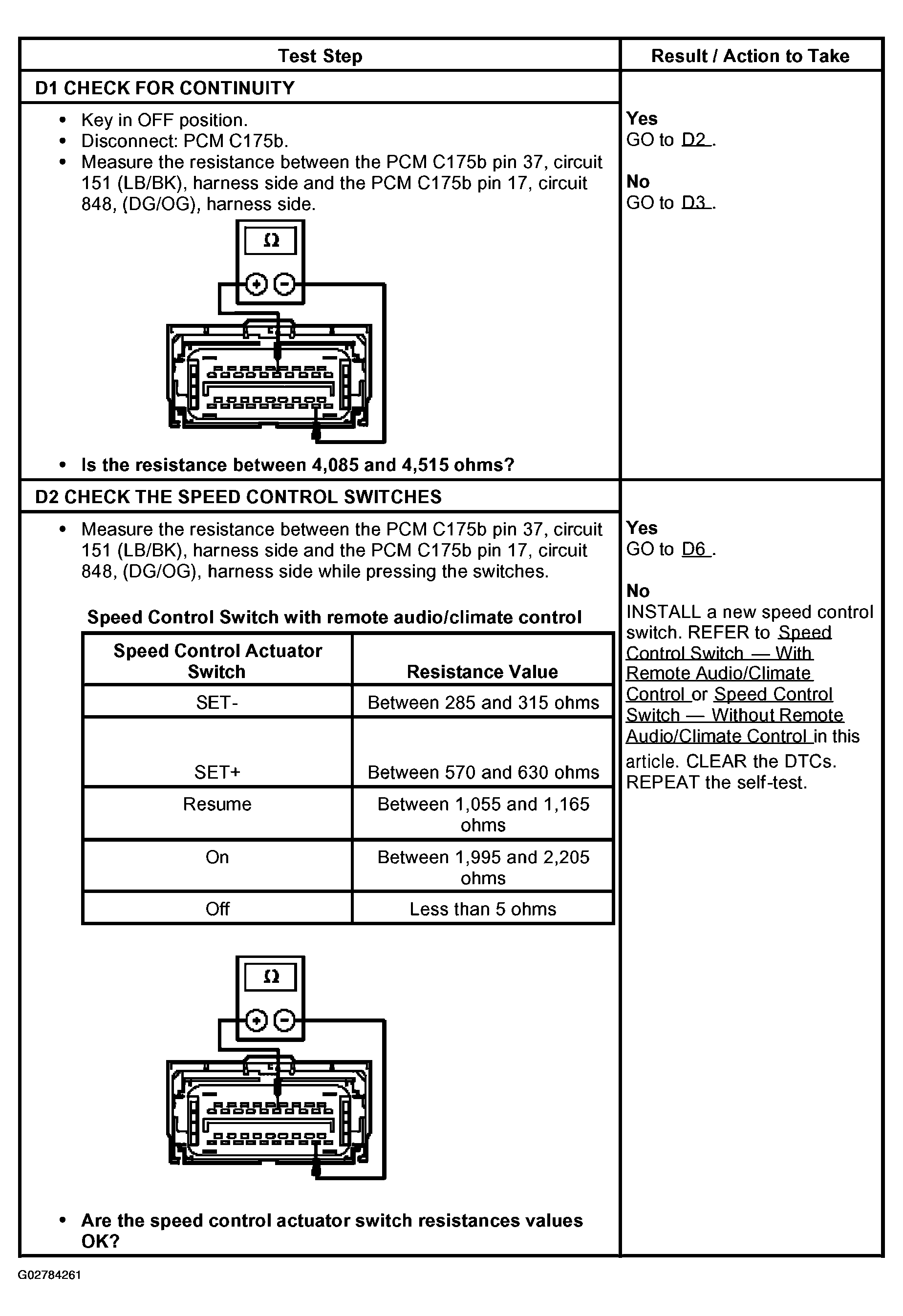

Fig 1: Pinpoint Test D: Speed Control Switches Are Inoperative (Steps D1-D2)
G02784261Courtesy of FORD MOTOR CO.

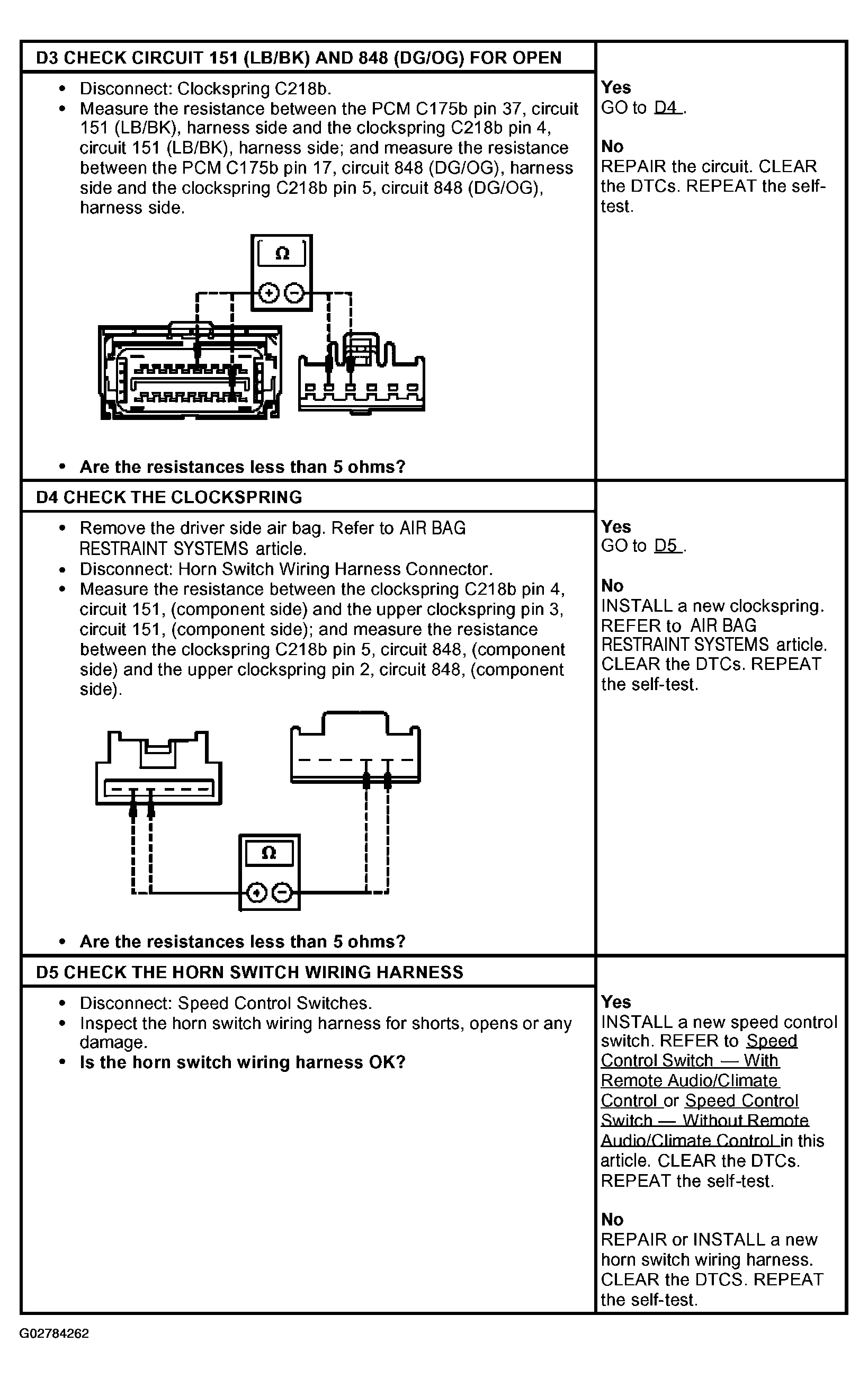

Fig 2: Pinpoint Test D: Speed Control Switches Are Inoperative (Steps D3-D5)
G02784262Courtesy of FORD MOTOR CO.

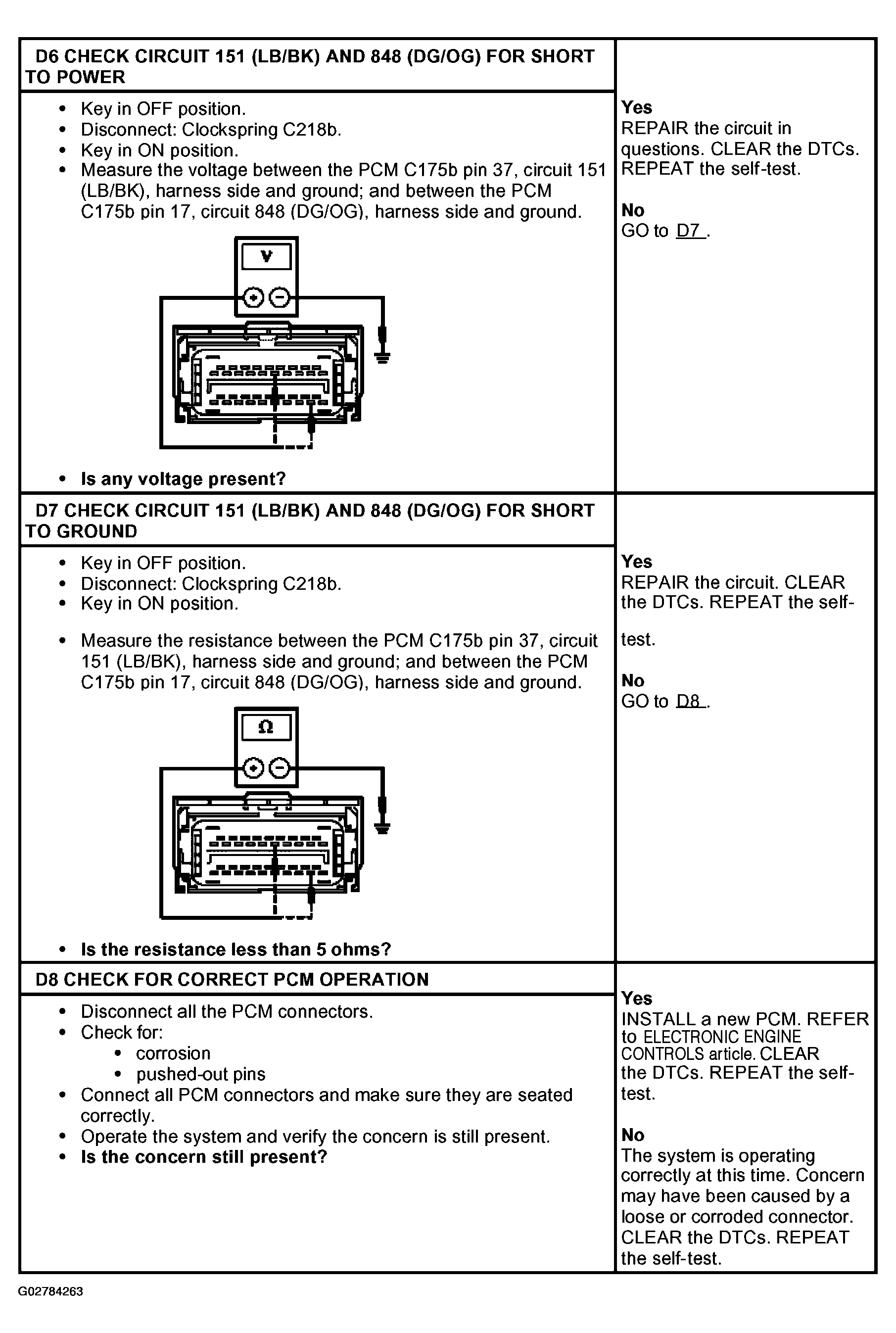

Fig 3: Pinpoint Test D: Speed Control Switches Are Inoperative (Steps D6-D8)
G02784263Courtesy of FORD MOTOR CO.
