Identifying Connector C501c

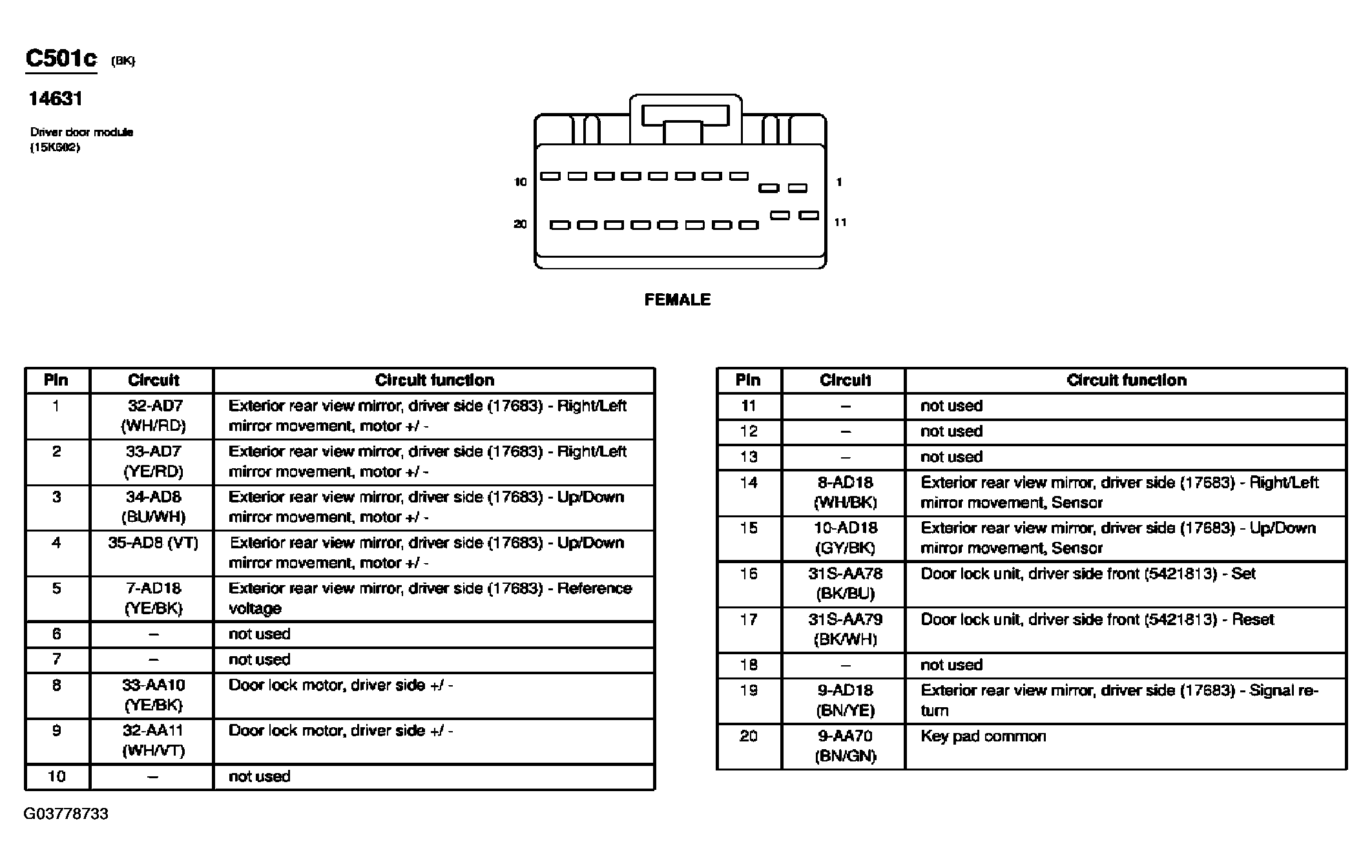

Fig 1: Driver Door Module Connector End View (C501c)

G03778733

Courtesy of FORD MOTOR CO.
