Identifying Connector C4209

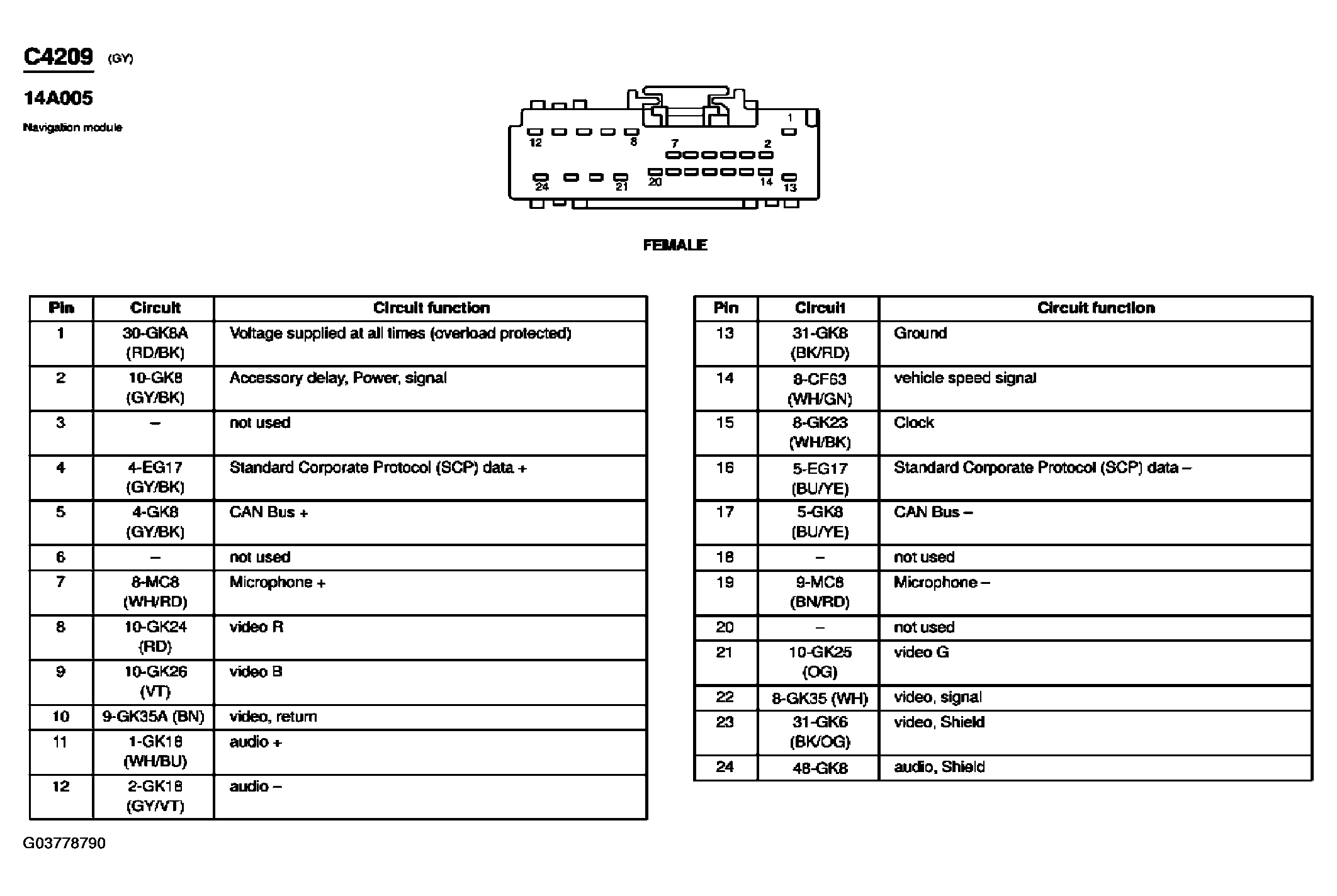

Fig 1: Navigation Module Connector End View (C4209)

G03778790

Courtesy of FORD MOTOR CO.
