Identifying Connector C4208b

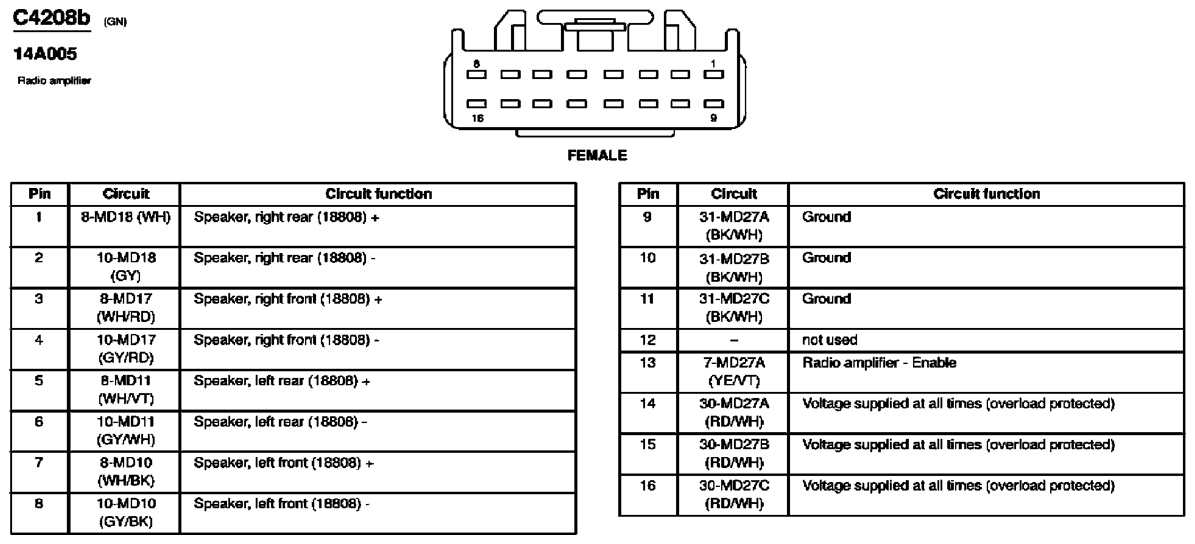

Fig 1: Radio Amplifier Connector End View (C4208b)

G03778789

Courtesy of FORD MOTOR CO.
