Identifying Connector C4014a

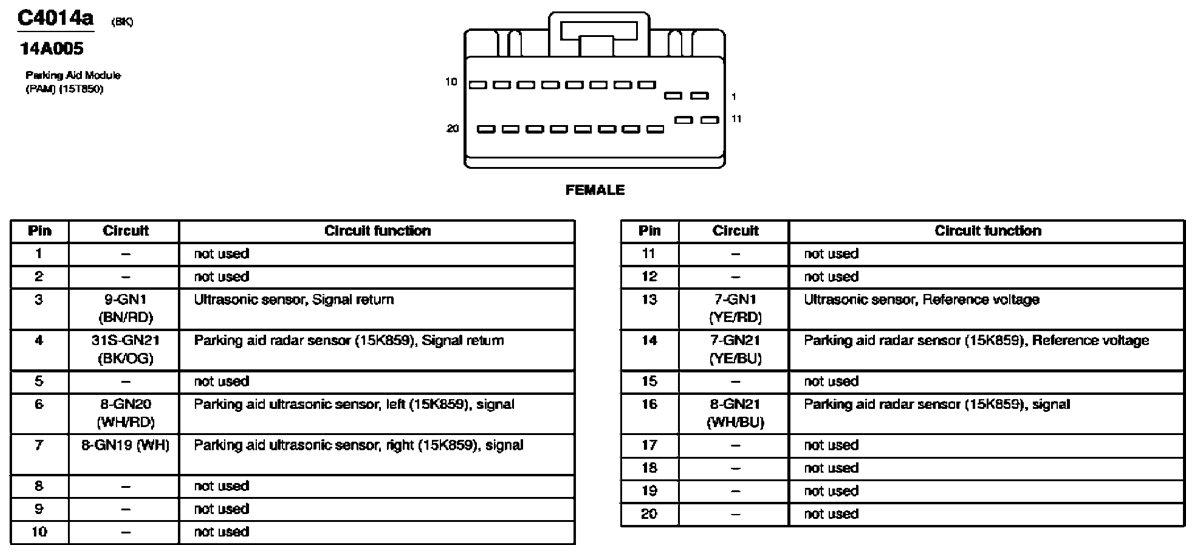

Fig 1: Parking Aid Module (PAM) Connector End View (C4014a)

G03778783

Courtesy of FORD MOTOR CO.
