Identifying Connector C360
Identifying Connector C360

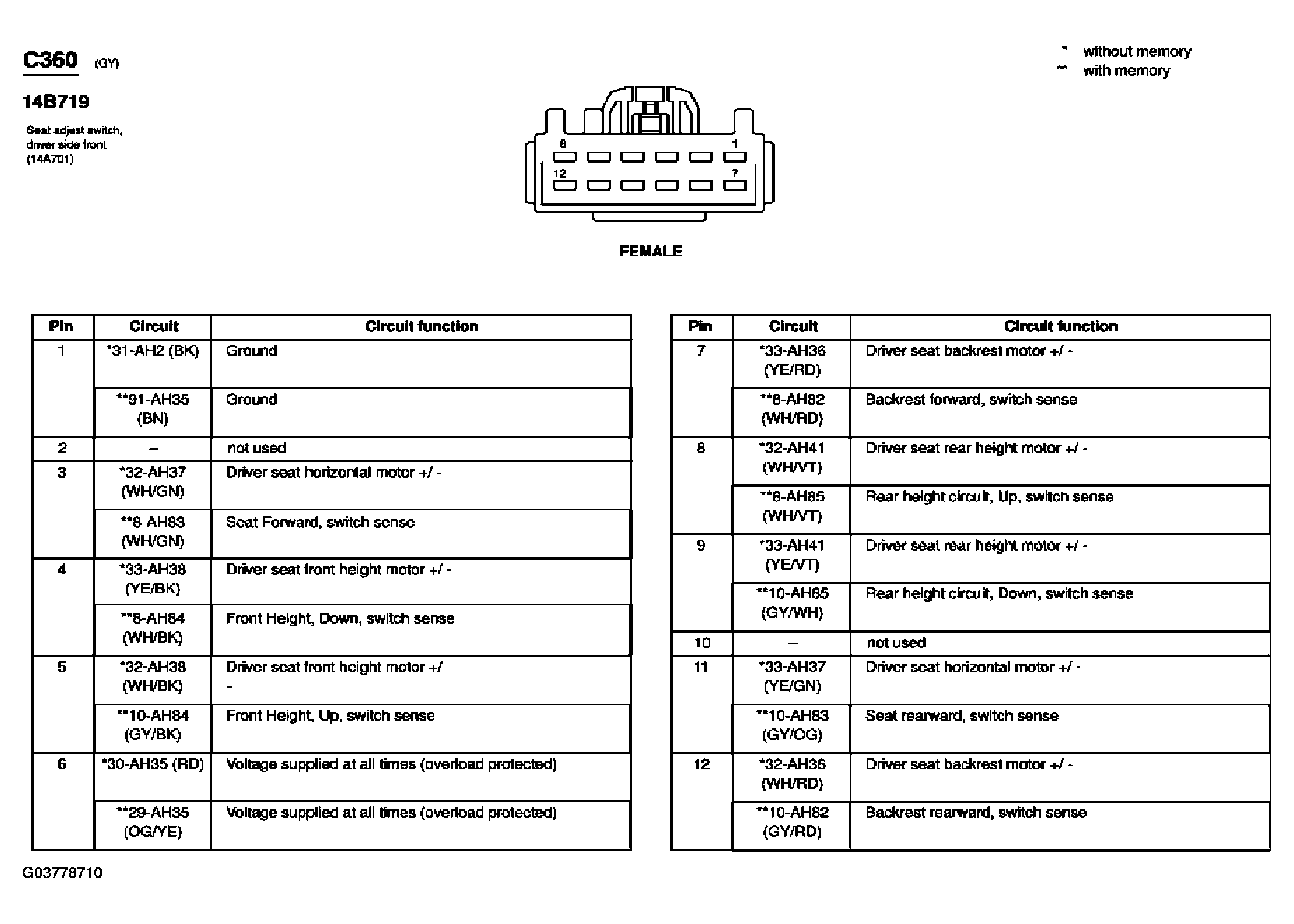

Fig 1: Seat Adjust Switch, Driver Side Front Connector End View (C360)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
