Identifying Connector C310a

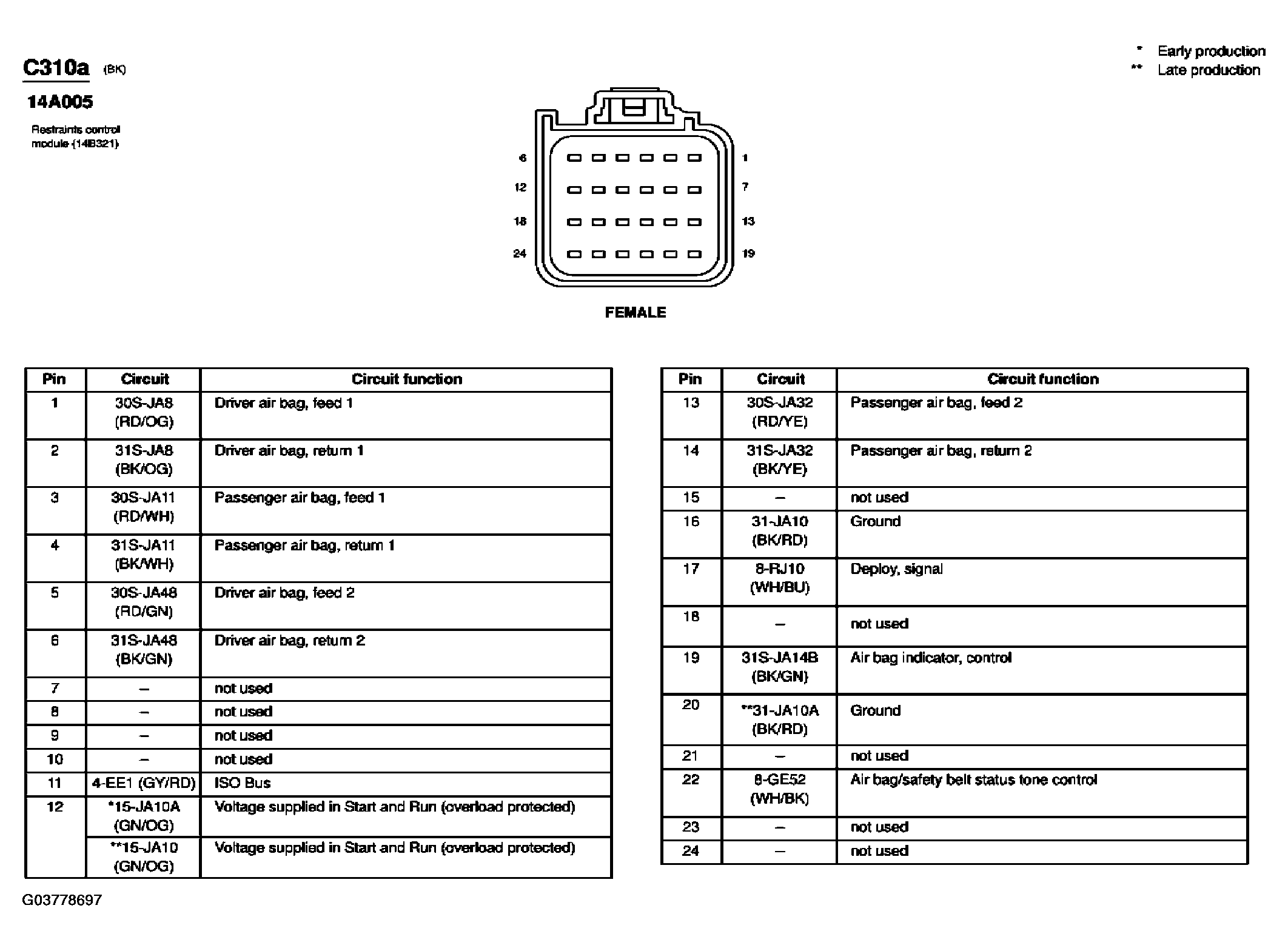

Fig 1: Restraints Control Module Connector End View (C310a)

G03778697

Courtesy of FORD MOTOR CO.
