Identifying Connector C3031b

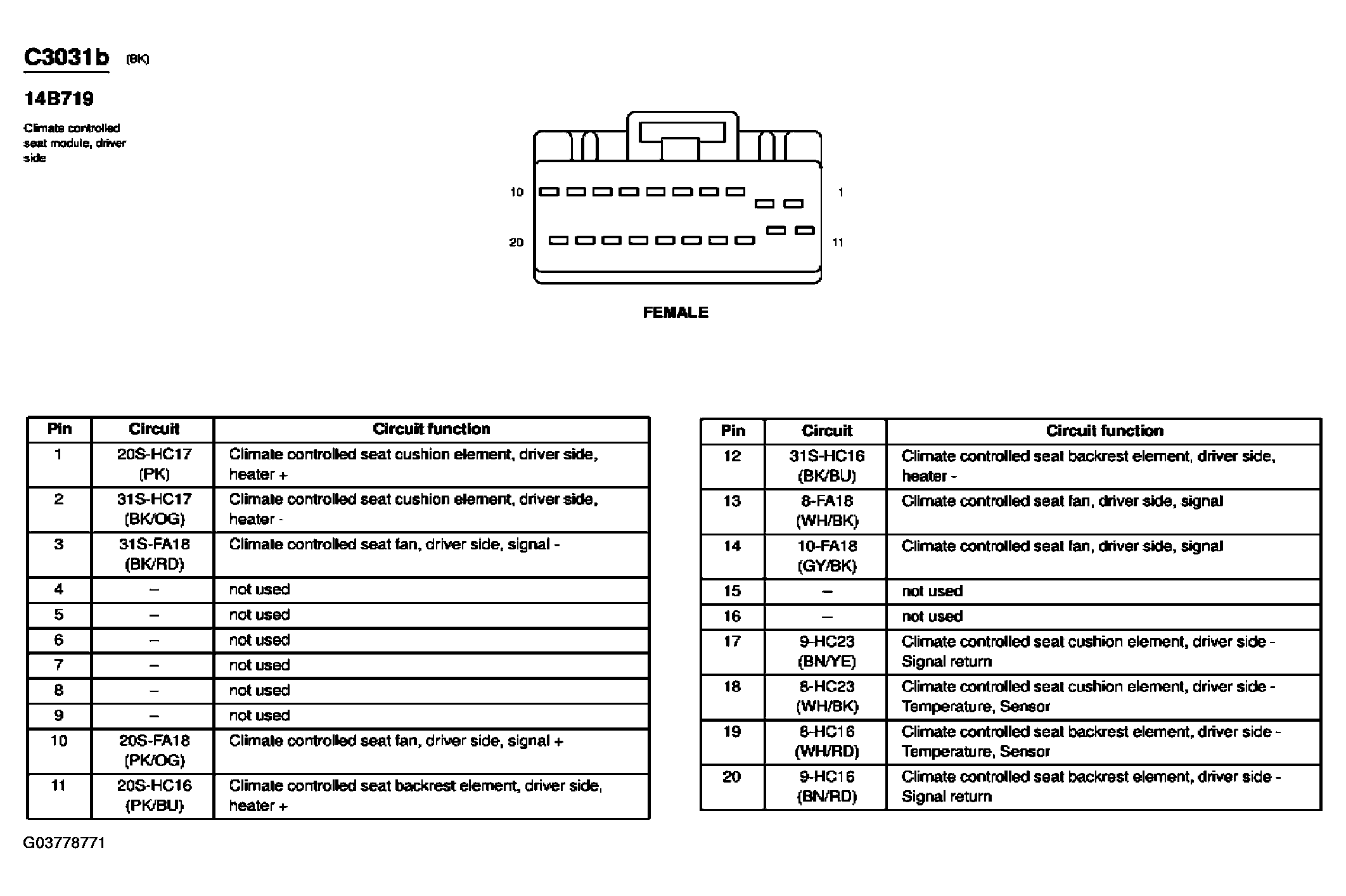

Fig 1: Climate Controlled Seat Module, Driver Side Connector End View (C3031b)

G03778771

Courtesy of FORD MOTOR CO.
