Identifying Connector C290b

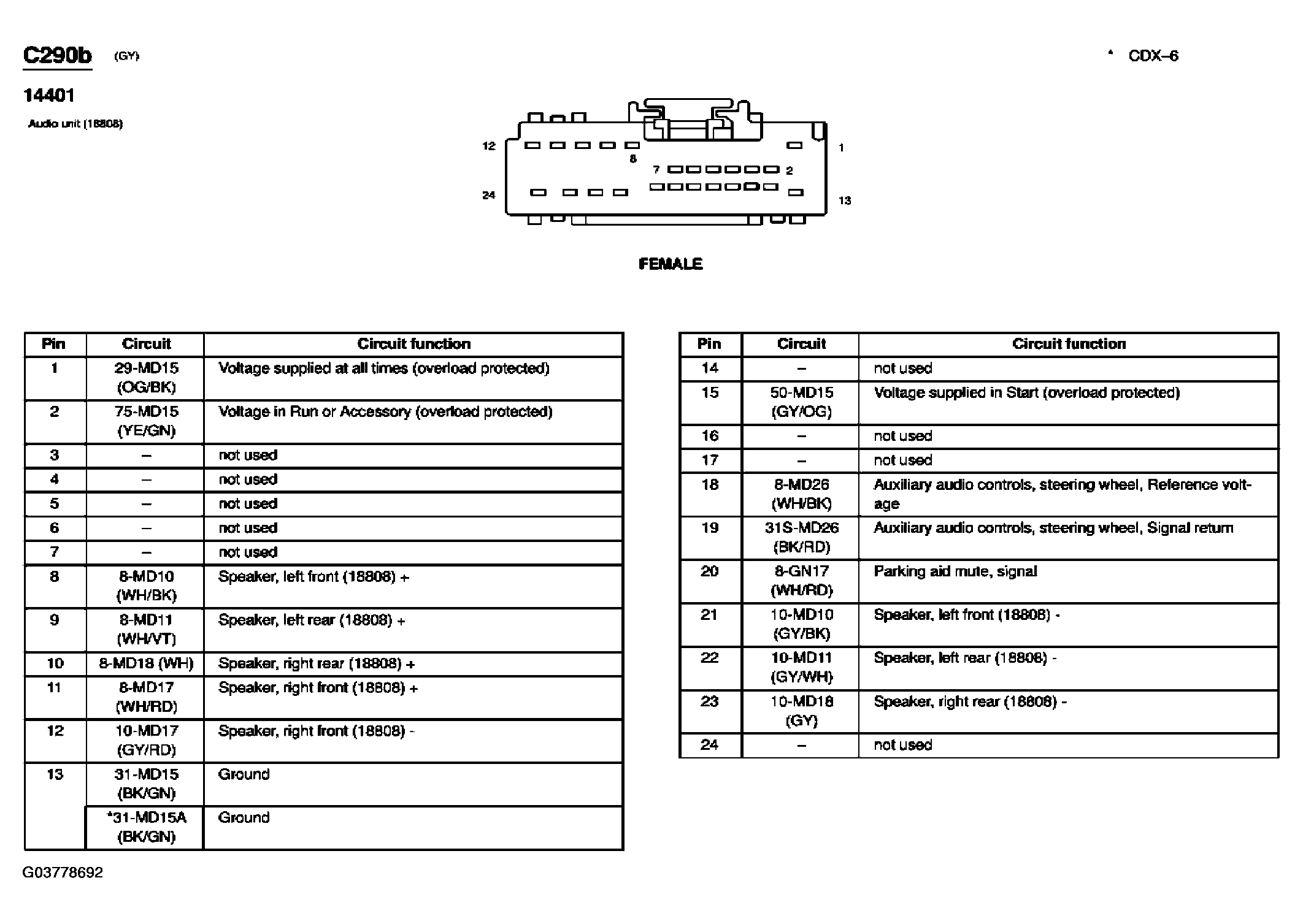

Fig 1: Audio Unit Connector End View (C290b)

G03778692

Courtesy of FORD MOTOR CO.
