Identifying Connector C283b

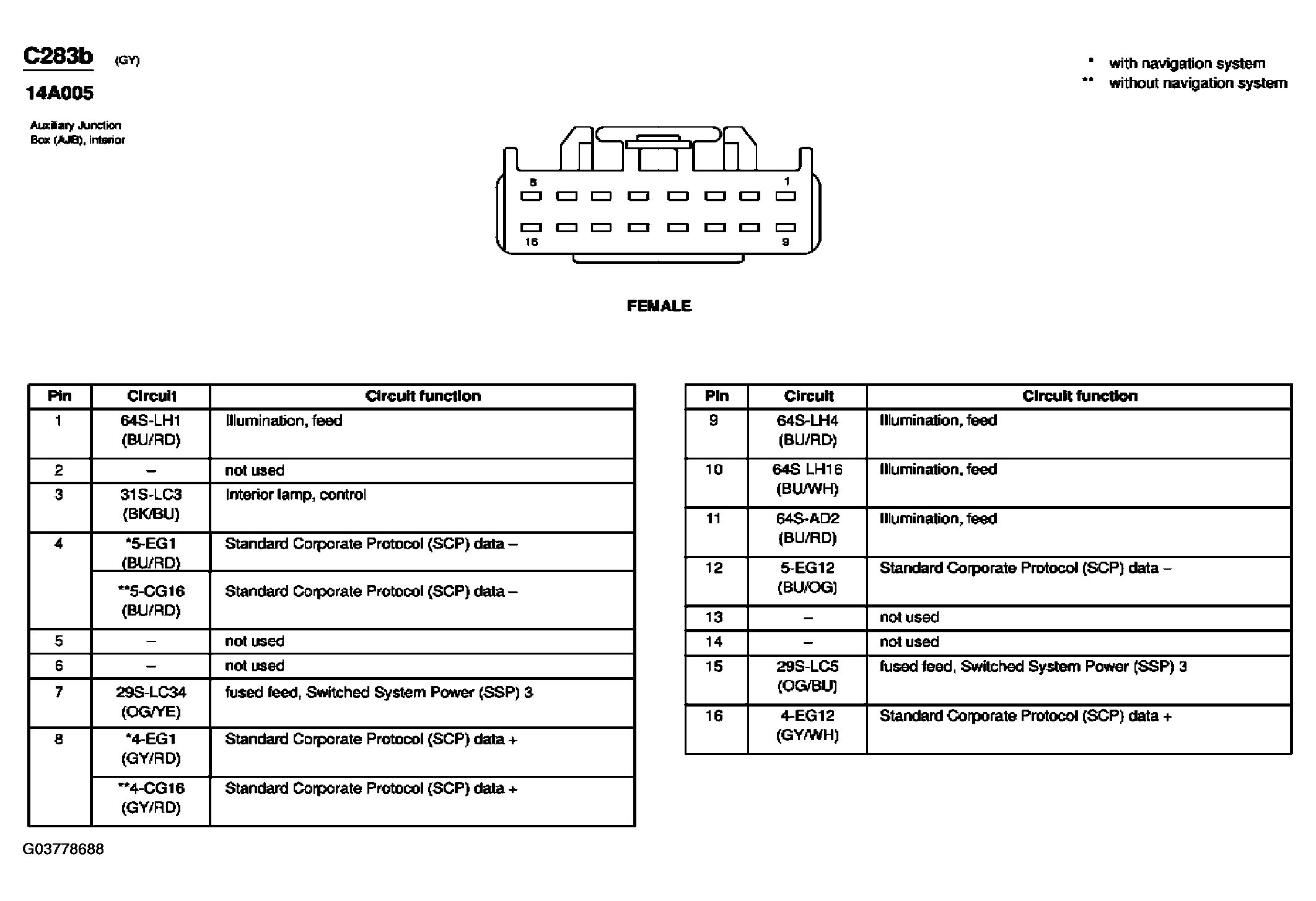

Fig 1: Auxiliary Junction Box (AJB), Interior Connector End View (C283b)

G03778688

Courtesy of FORD MOTOR CO.
