Identifying Connector C270d

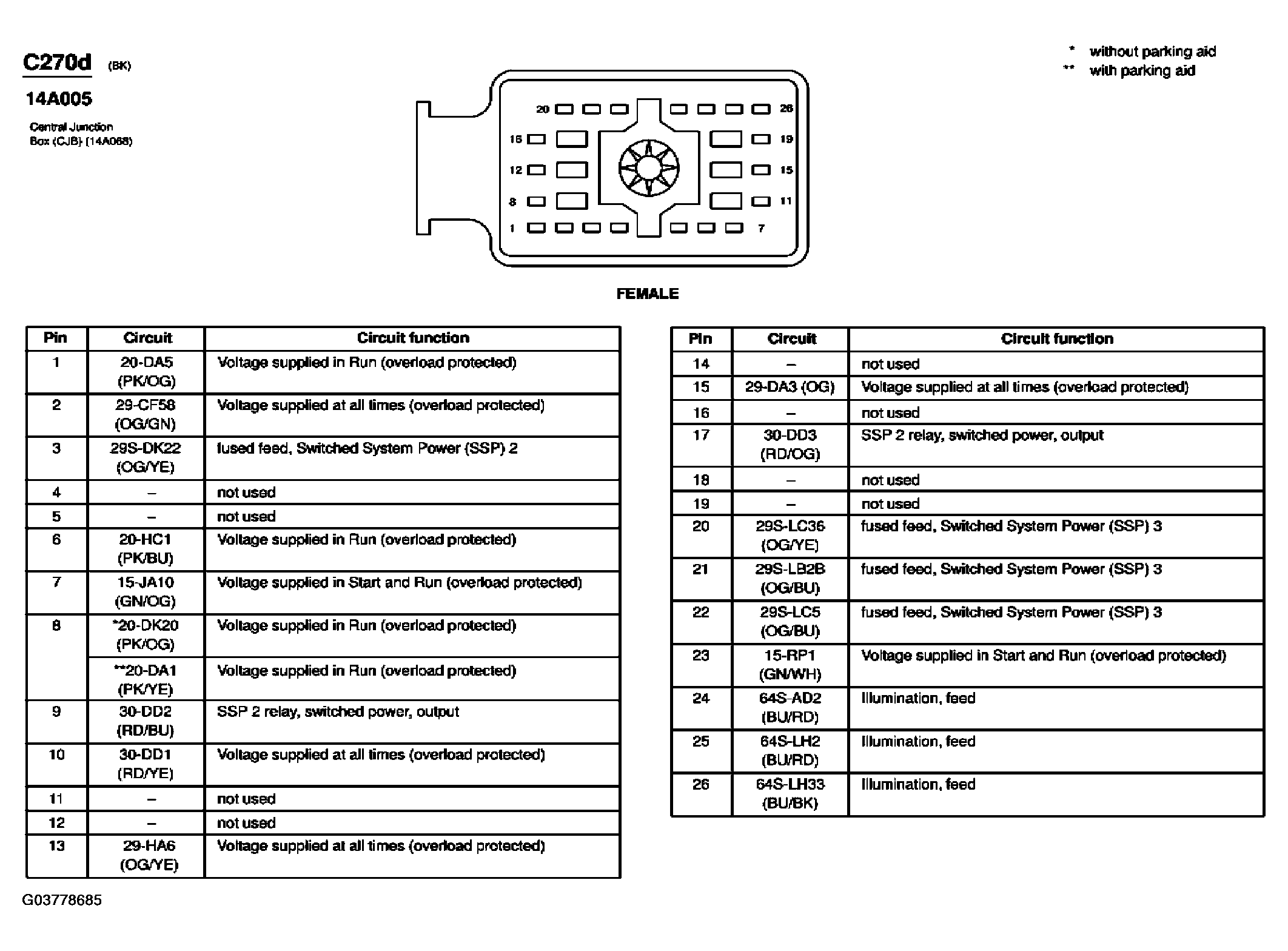

Fig 1: Central Junction Box (CJB) Connector End View (C270d)

G03778685

Courtesy of FORD MOTOR CO.
