Identifying Connector C228b

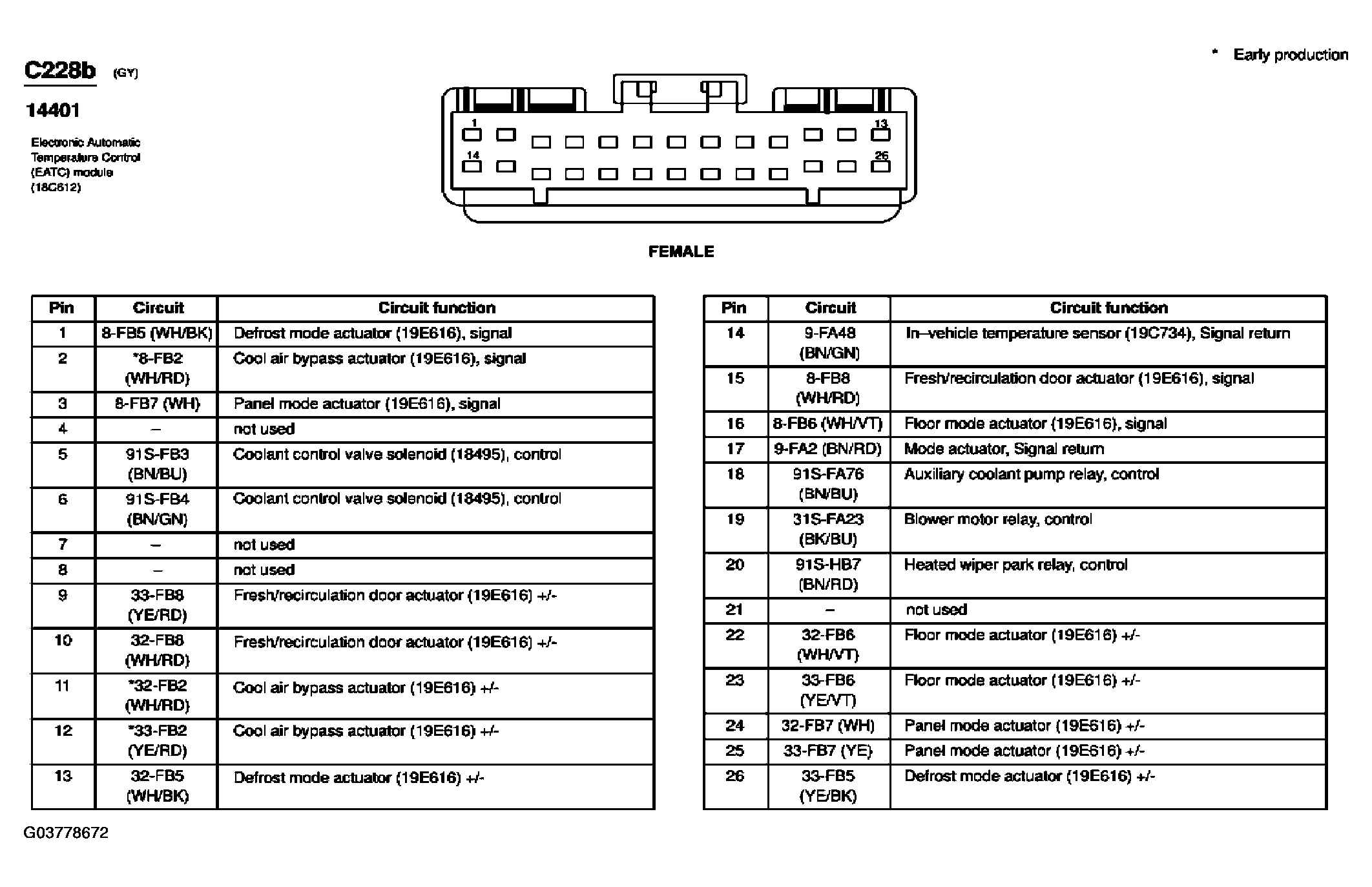

Fig 1: Electronic Automatic Temperature Control (EATC) Module Connector End View (C228b)
G03778672Courtesy of FORD MOTOR CO.
