Identifying Connector C228a

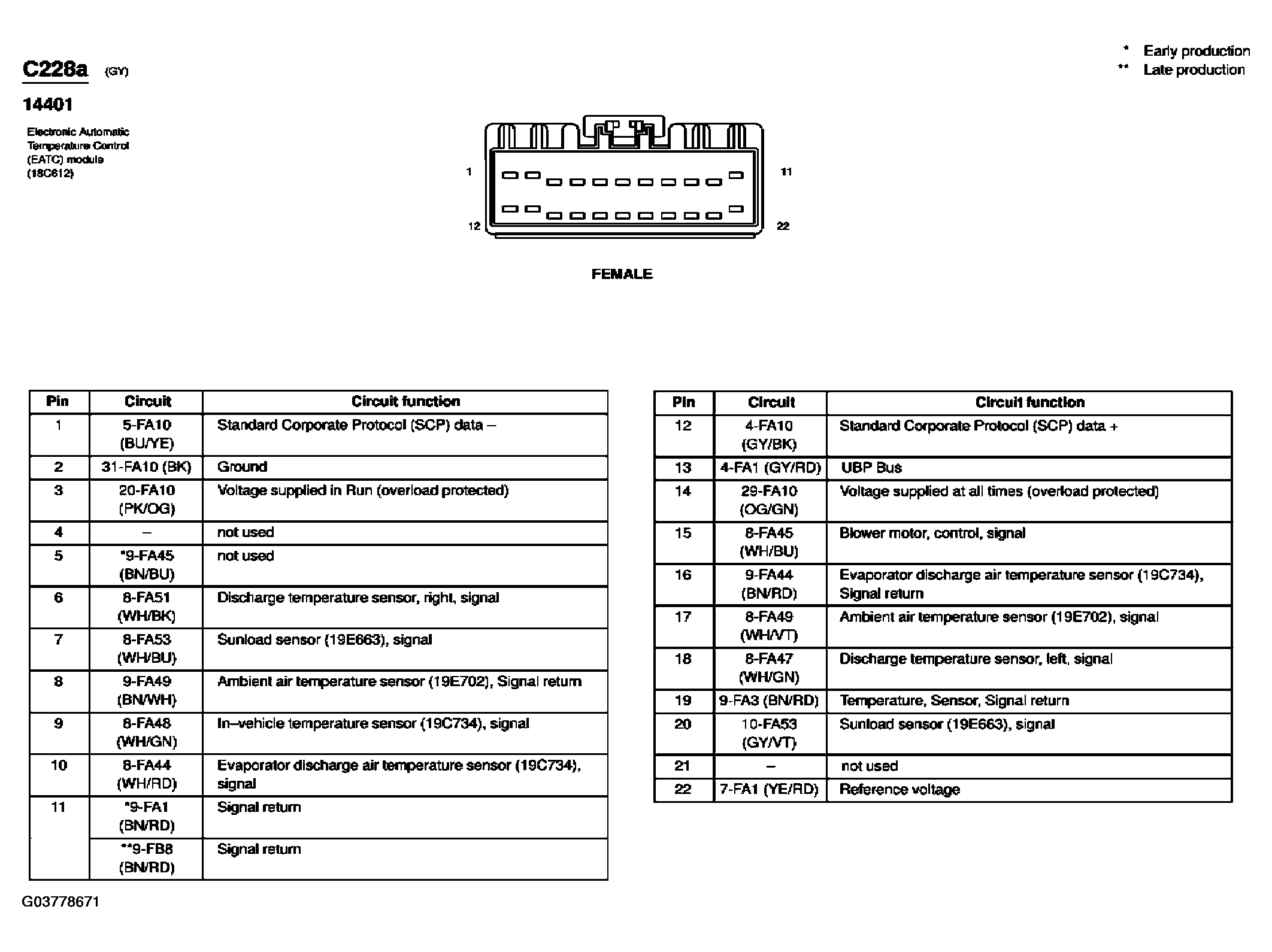

Fig 1: Electronic Automatic Temperature Control (EATC) Module Connector End View (C228a)

G03778671

Courtesy of FORD MOTOR CO.
