Identifying Connector C220b

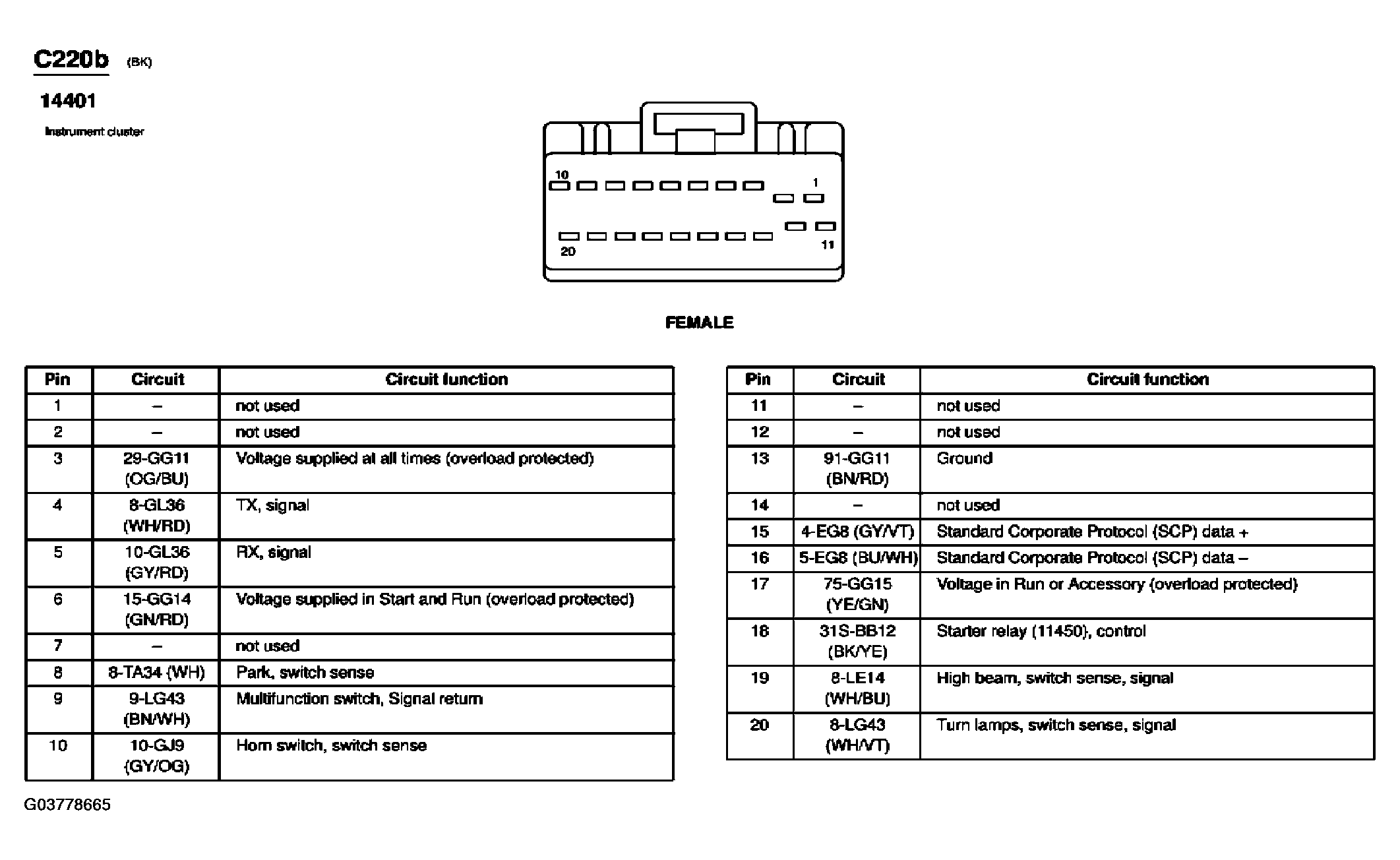

Fig 1: Instrument Cluster Connector End View (C220b)
G03778665Courtesy of FORD MOTOR CO.
