Identifying Connector C220a

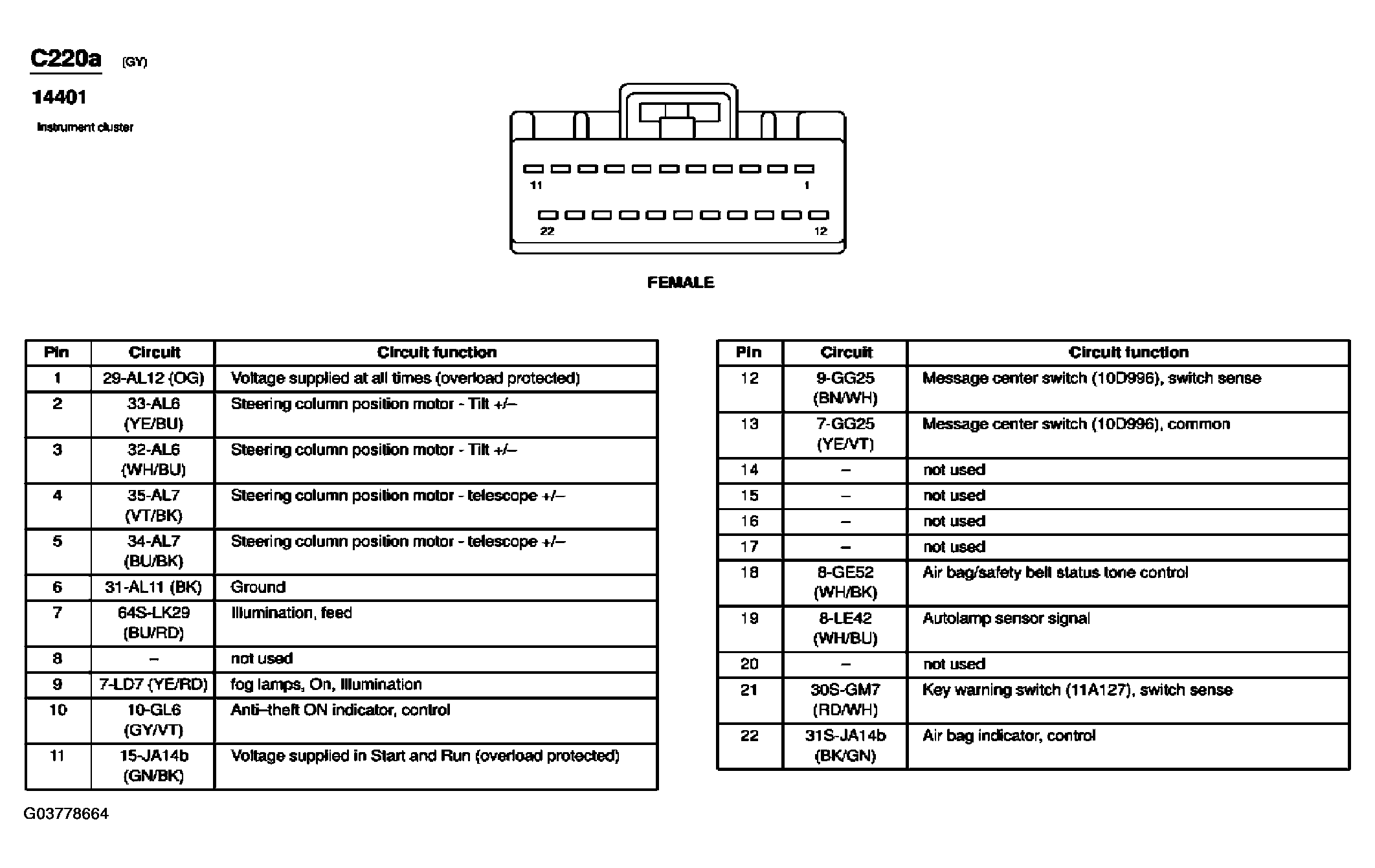

Fig 1: Instrument Cluster Connector End View (C220a)
G03778664Courtesy of FORD MOTOR CO.
