Identifying Connector C201e

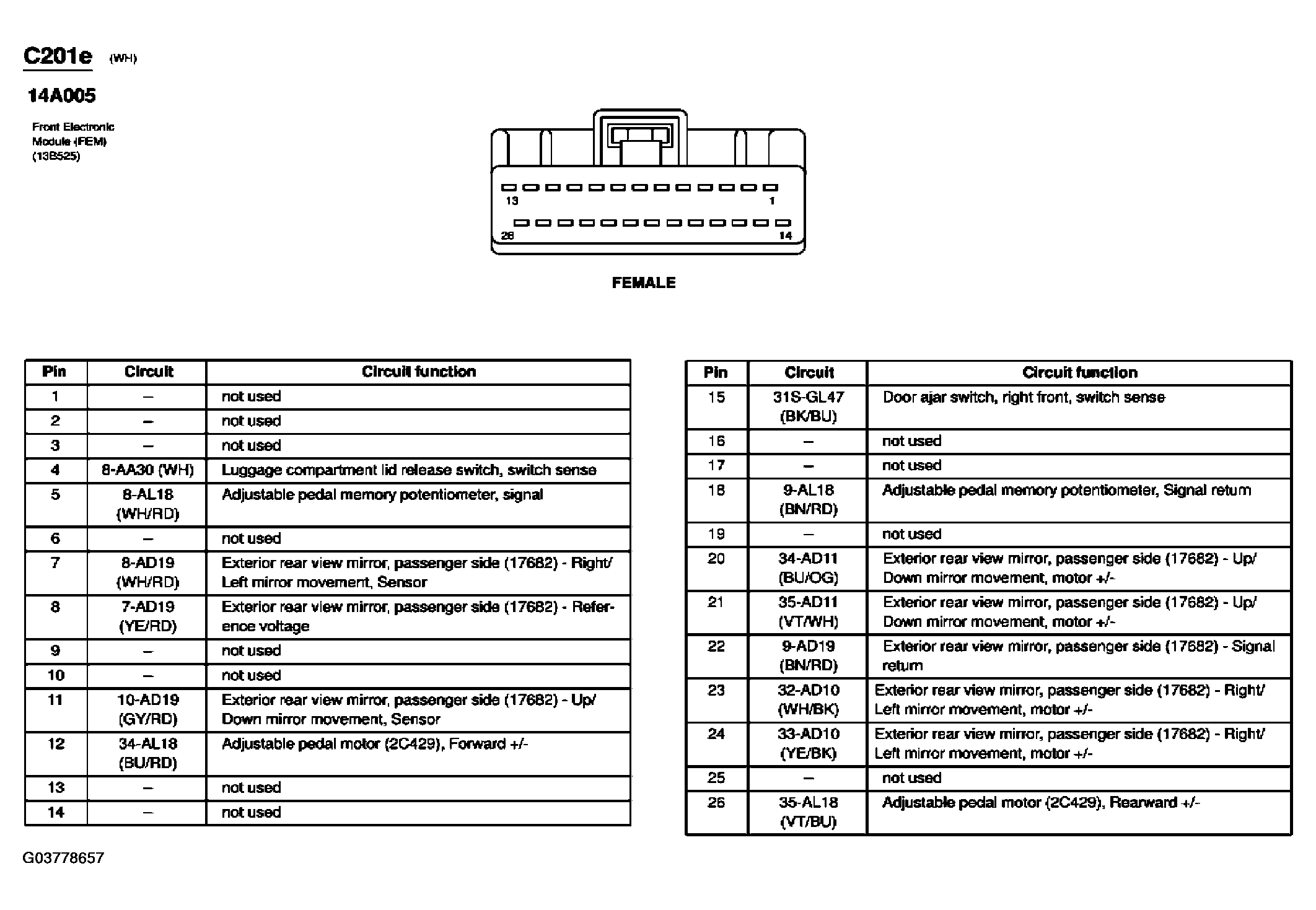

Fig 1: Front Electronic Module (FEM) Connector End View (C201e)

G03778657

Courtesy of FORD MOTOR CO.
