Identifying Connector C175b

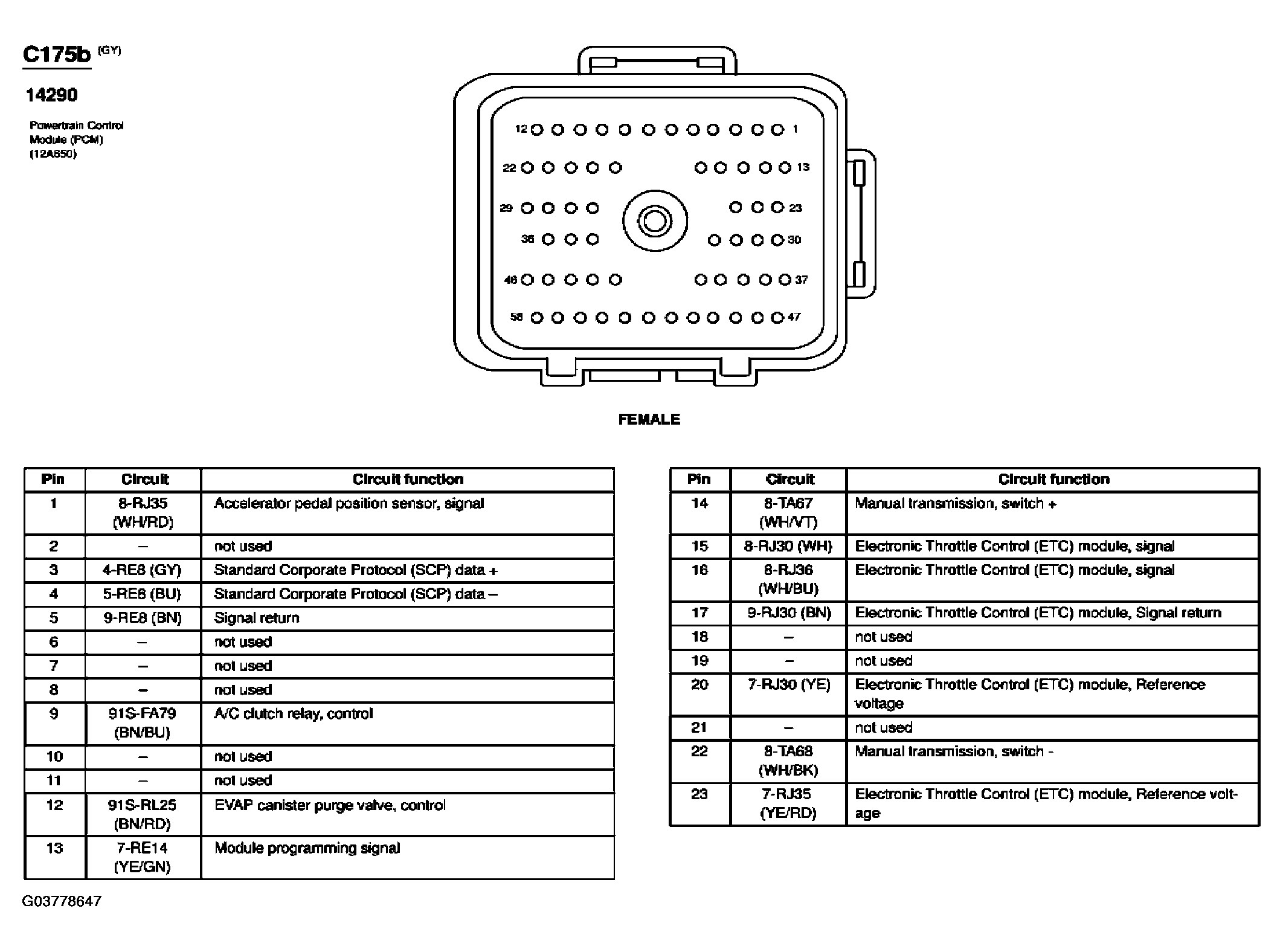

Fig 1: Powertrain Control Module (PCM) Connector End View (C175b) (1 Of 2)
G03778647Courtesy of FORD MOTOR CO.

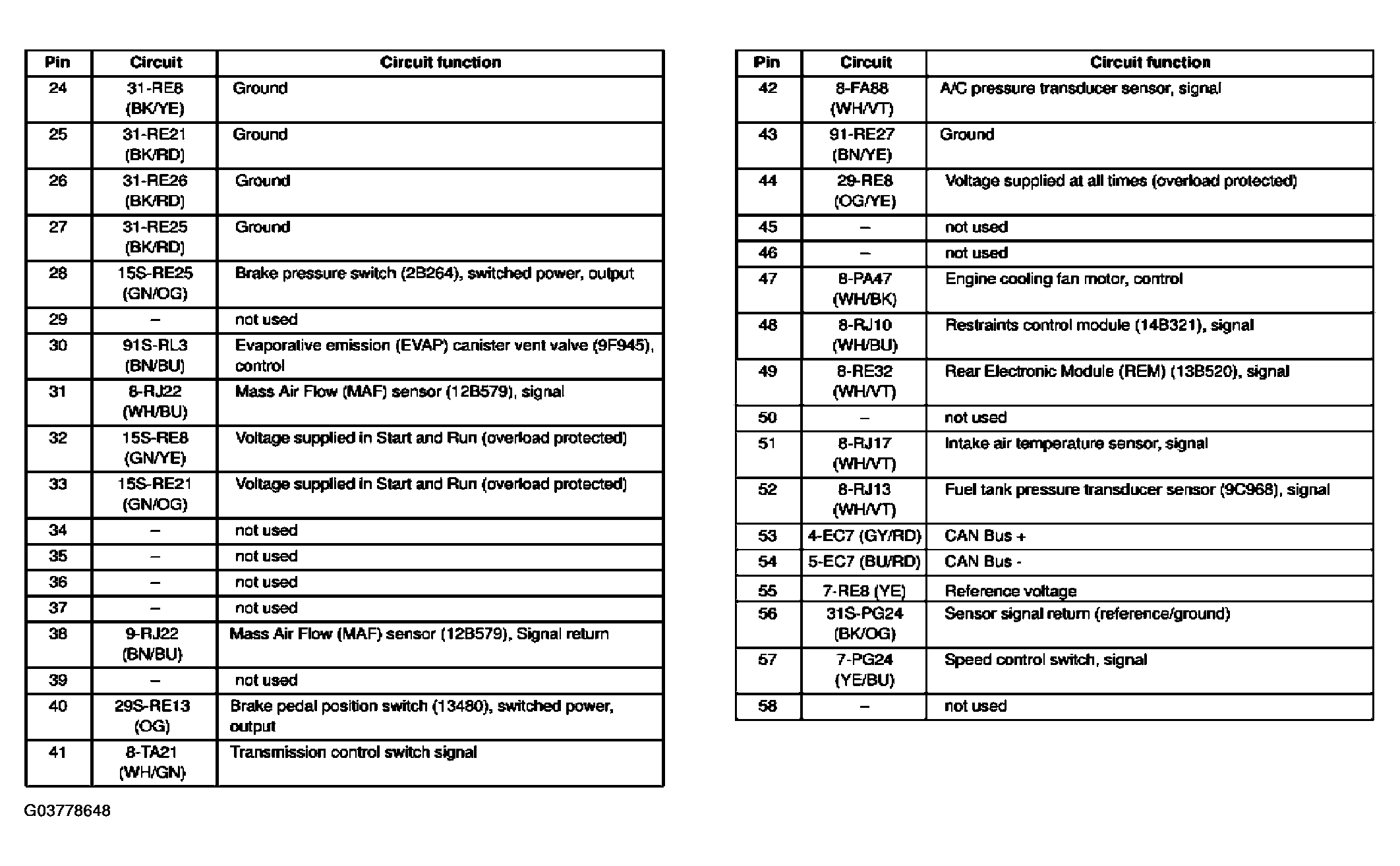

Fig 2: Powertrain Control Module (PCM) Connector End View (C175b) (2 Of 2)
G03778648Courtesy of FORD MOTOR CO.
