Special Tool(s)

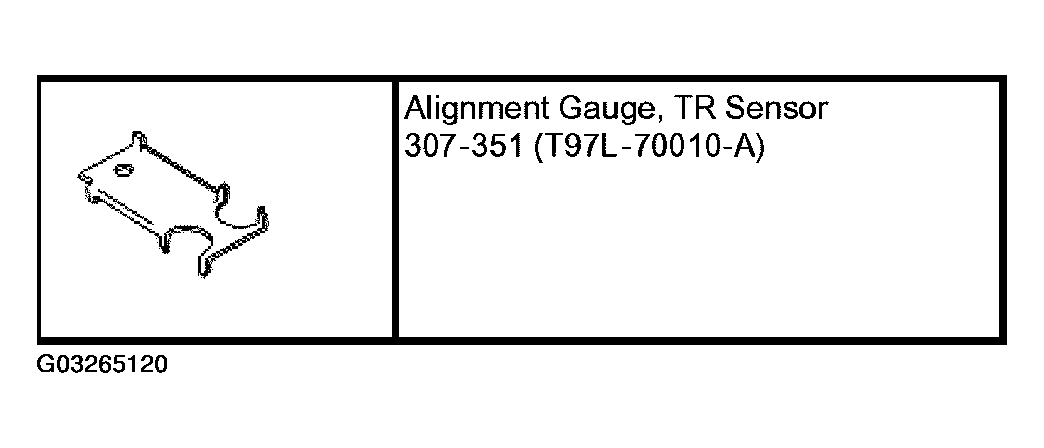

Fig 1: Identifying Special Tool(s)
G03265120Courtesy of FORD MOTOR CO.
  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
  2. It is not necessary to remove the shift cable and bracket from the transmission.
  3. Remove the parts in the order indicated in the following illustration and table.

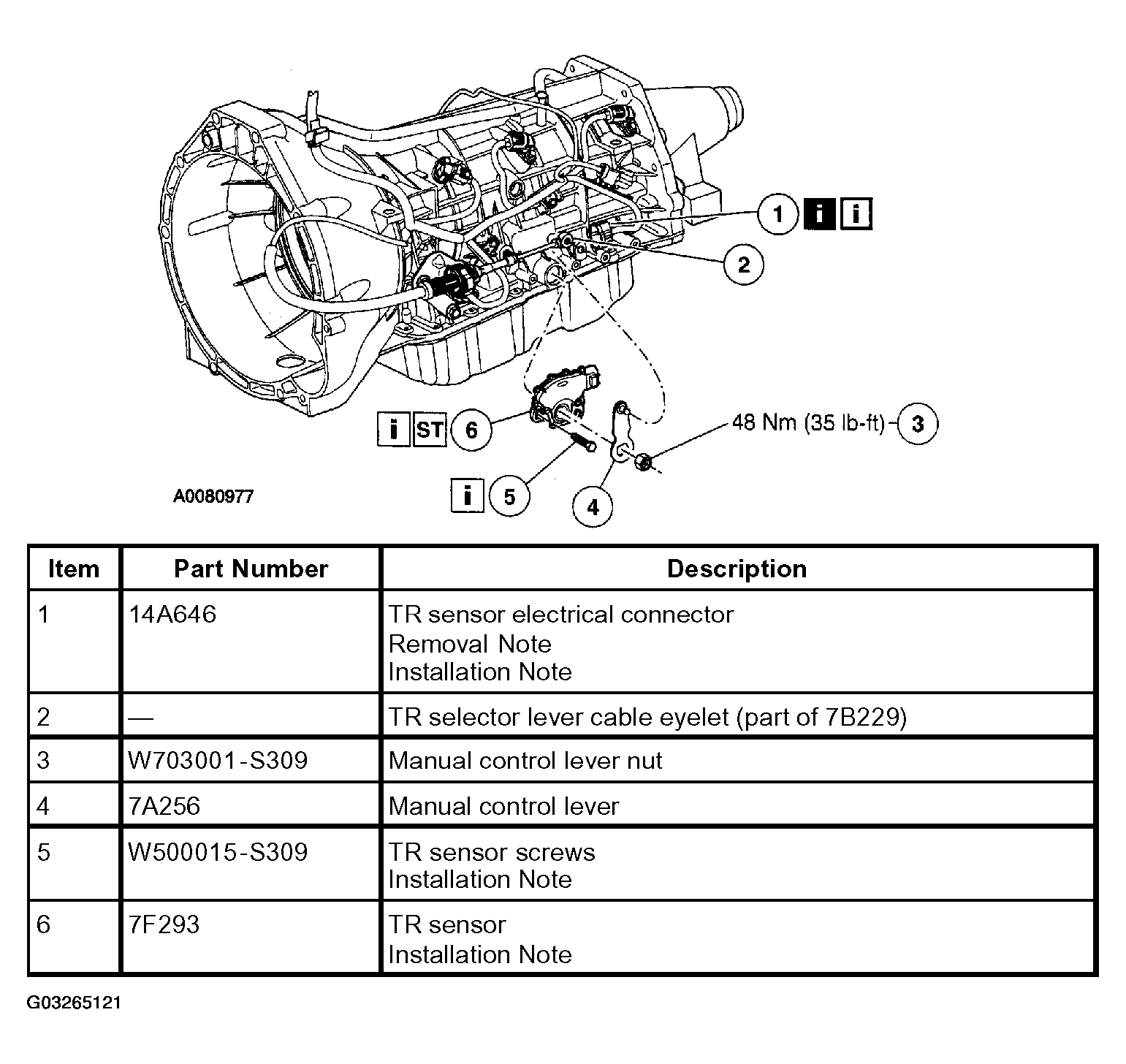

    Fig 2: Removing TR Sensor Electrical Connector Components
    G03265121Courtesy of FORD MOTOR CO.
  4. To install, reverse the removal procedure
