Item 1: TR Sensor Electrical Connector Removal Note

  1. Move the rubber boot back to gain access to the connector.

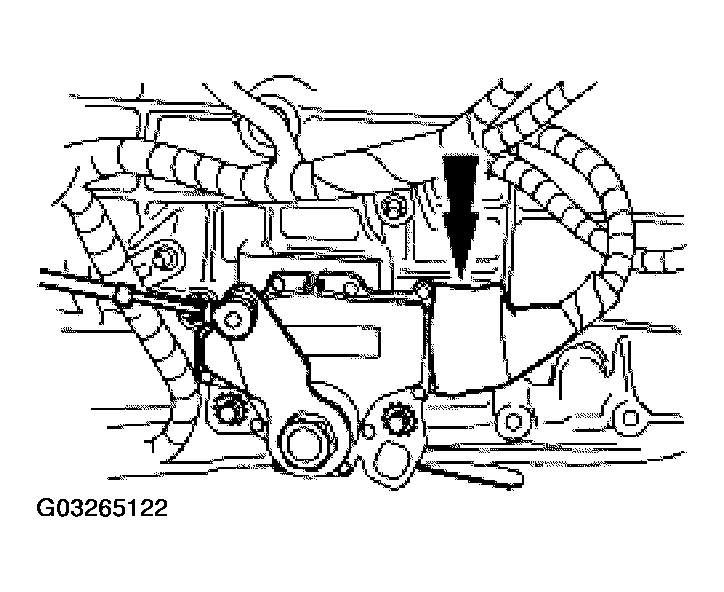

    Fig 1: Removing Rubber Boot Back
    G03265122Courtesy of FORD MOTOR CO.
  2. Disconnect the digital TR sensor connector.

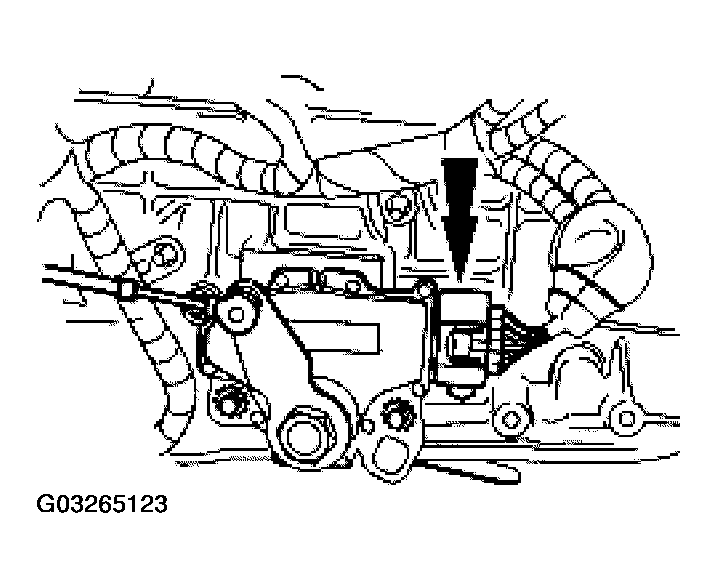

    Fig 2: Disconnecting Digital TR Sensor Connector
    G03265123Courtesy of FORD MOTOR CO.
