Item 7: Reverse Servo Piston O-Ring Assembly Note

    NOTE: Try not to roll the seal onto the housing when installing the seal or damage to the seal can occur.

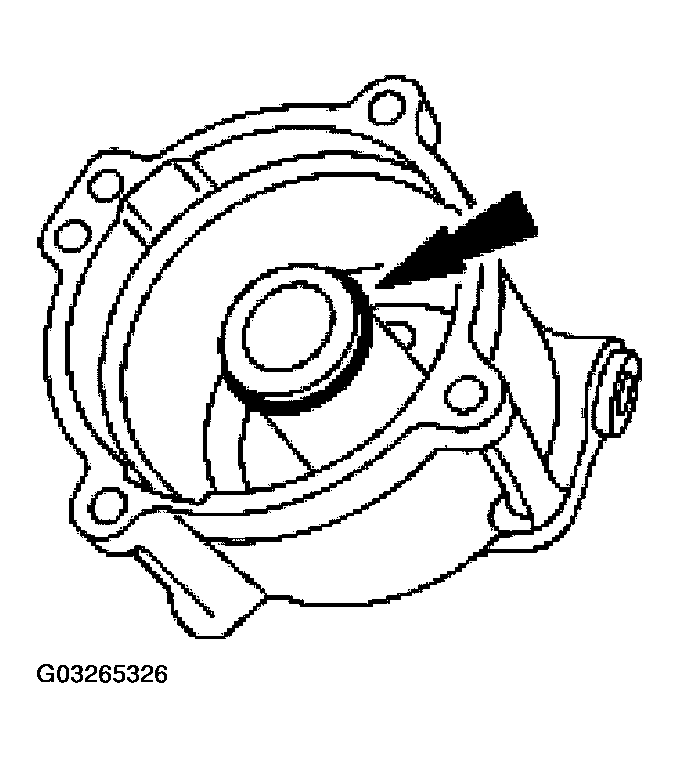

    Fig 1: Installing Reverse Servo Piston Seal
    G03265326Courtesy of FORD MOTOR CO.
  1. Lubricate and install a new reverse servo piston seal.
