Identifying Connectors (C155)

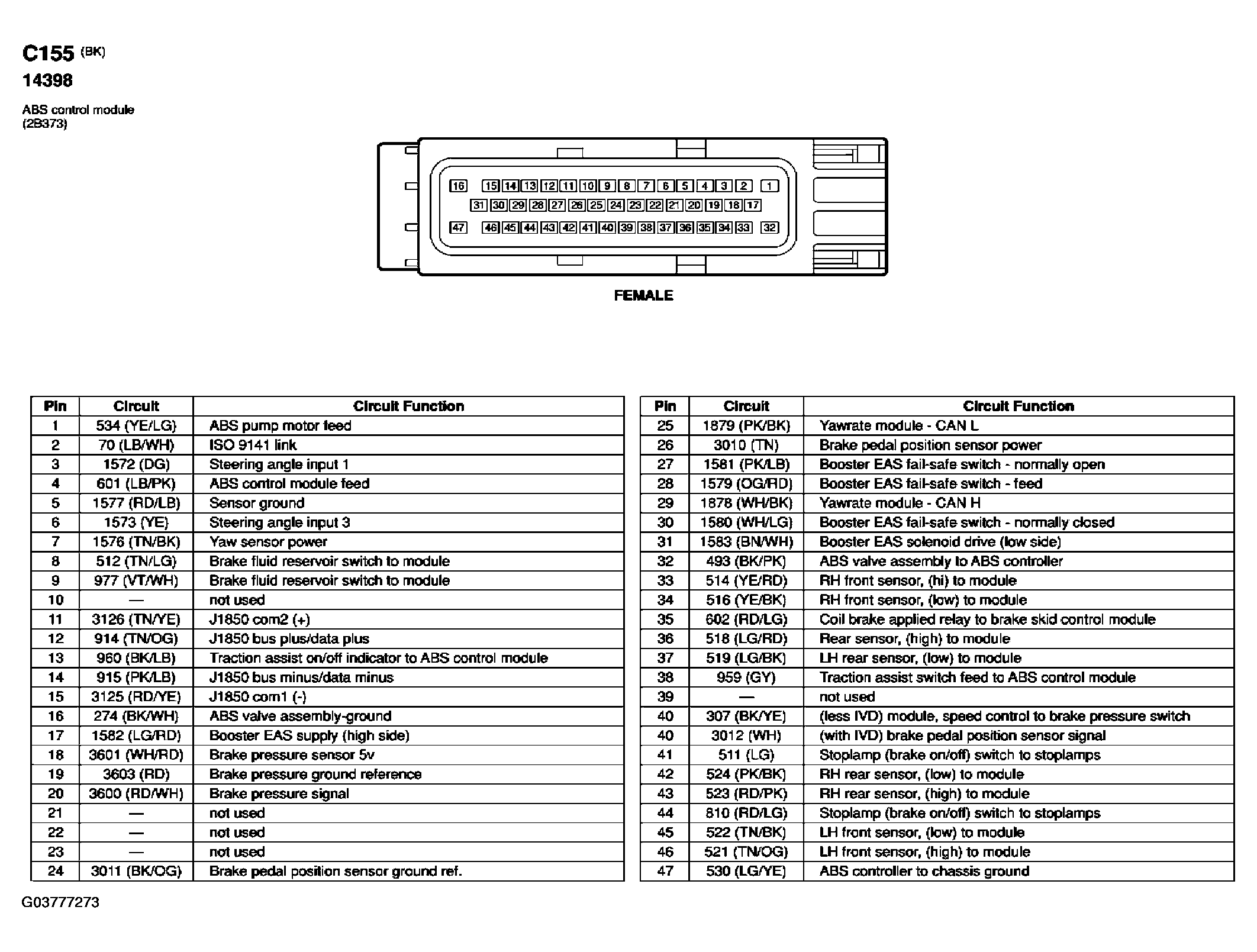

Fig 1: ABS Control Module Connector End View (C155)

G03777273

Courtesy of FORD MOTOR CO.
