Auxiliary Climate Control Assembly - Rear

  1. Remove the parts in the order indicated in the following illustration and table.

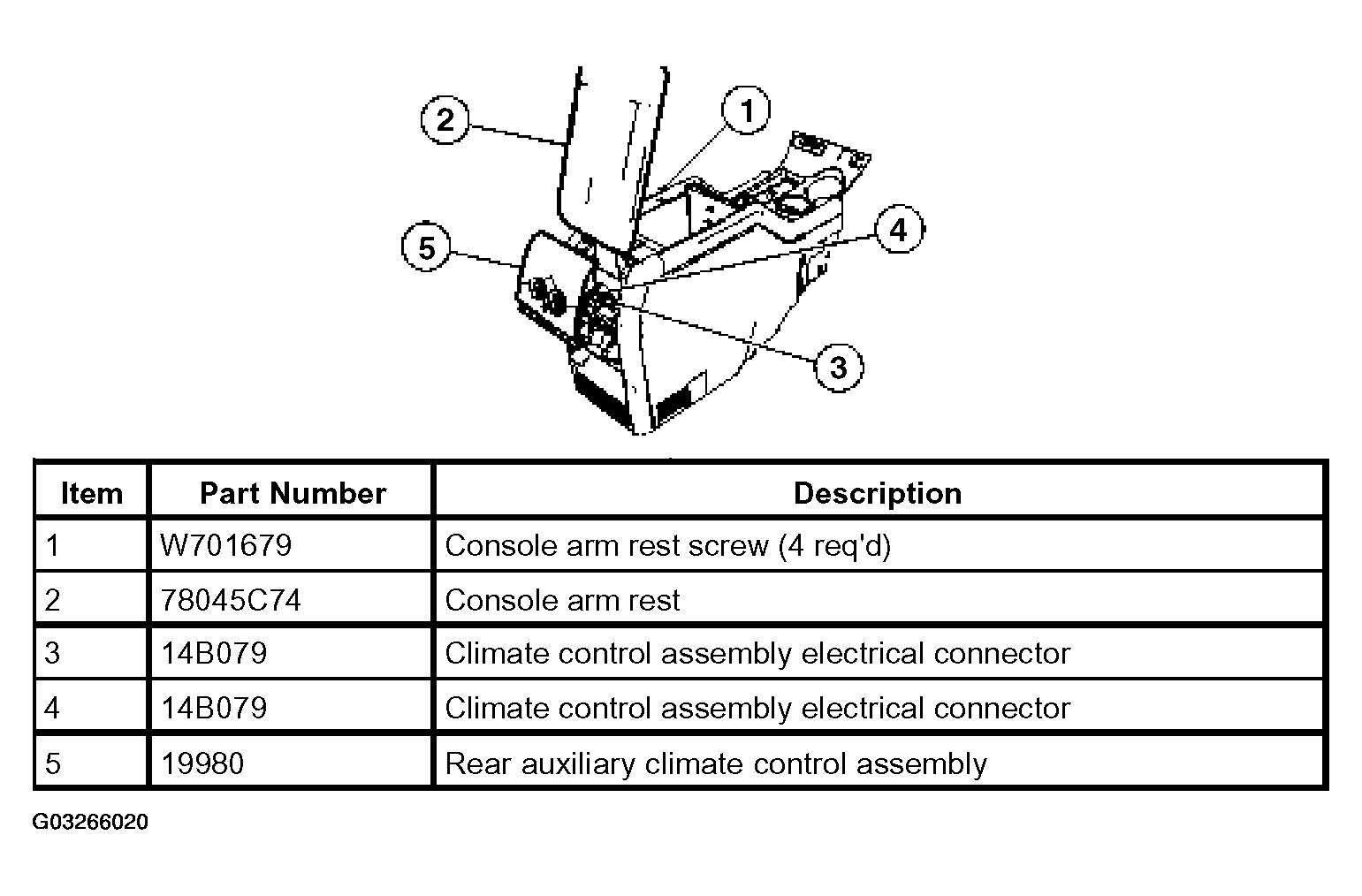

    Fig 1: Identifying Removal Sequence Of Auxiliary Climate Control Assembly - Rear
    G03266020Courtesy of FORD MOTOR CO.
  2. To install, reverse the removal procedure.
