Connecting Rod - Piston Pin Side Clearance

WARNING: This page is about a different car, the 2004 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.
  1. Measure the clearance between the connecting rod and the piston. Verify the measurement is within specification.
    • Refer to ENGINE for the procedure.
    • If out of specification, install new components as necessary. Refer to ENGINE for the procedure.

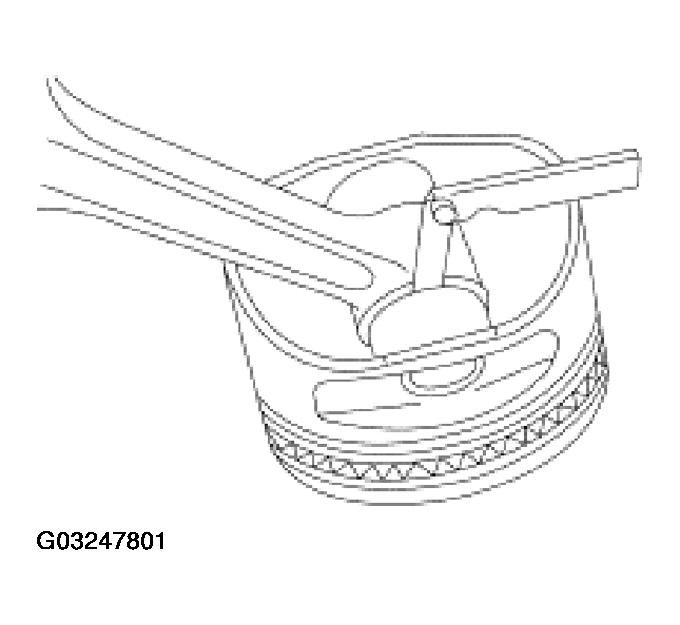

    Fig 1: Measuring Clearance Between Connecting Rod And Piston
    G03247801Courtesy of FORD MOTOR CO.
