Vacuum Control Motor - Defrost Door

WARNING: This page is about a different car, the 2003 Lincoln Aviator. However, it is still accessible from the selected car via links, so may be relevant.

Remove the plenum chamber. For additional information, refer to PLENUM CHAMBER, ASSEMBLY AND COMPONENTS .
Remove the components in the order indicated in the following illustration.
To install, reverse the removal procedure.

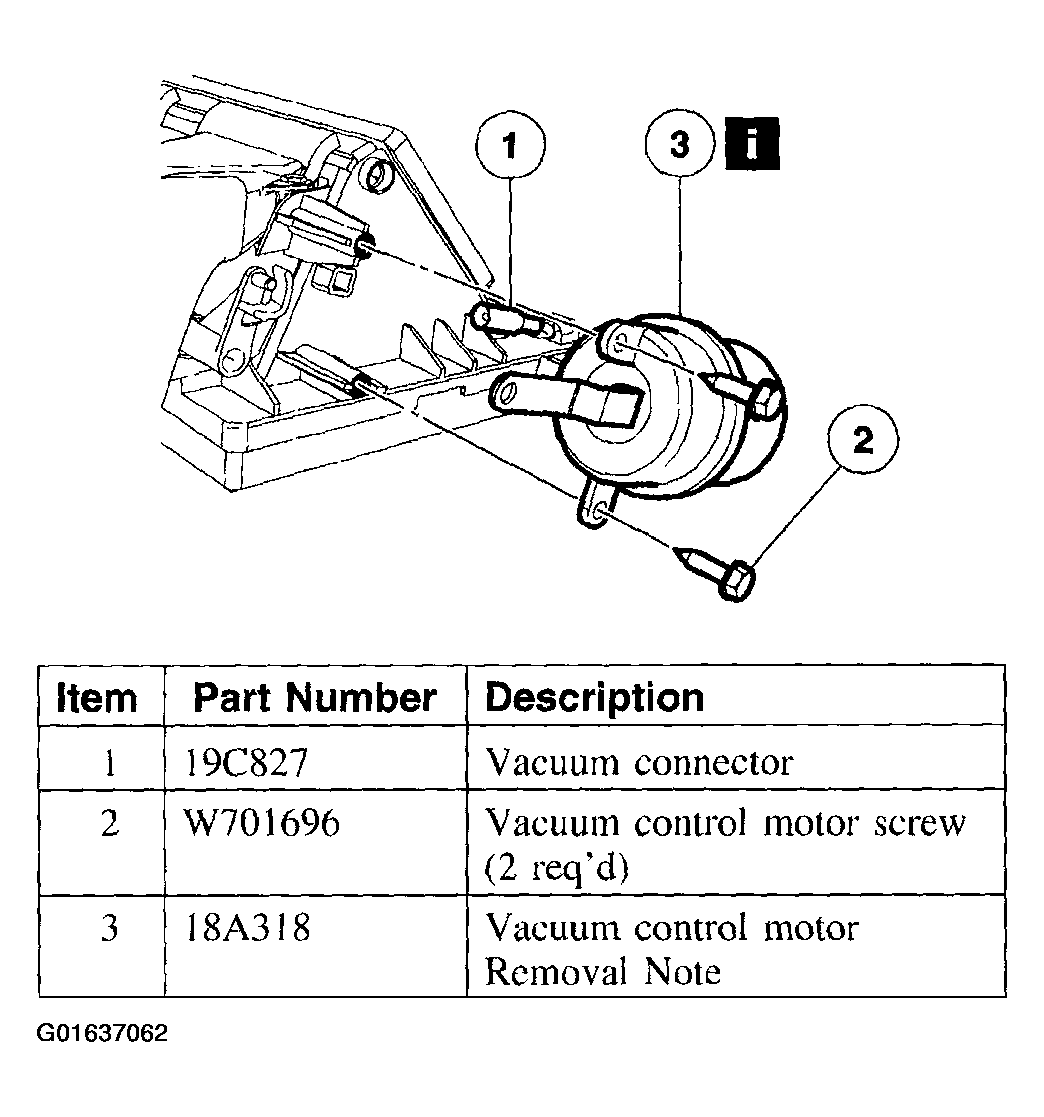

Fig 1: Removal Sequence Of Vacuum Control Motor - Defrost Door
Courtesy of FORD MOTOR CO.

Item 3: Vacuum Control Motor Removal Note

Rotate the vacuum control motor until it clears the retaining arm and remove the vacuum control motor.

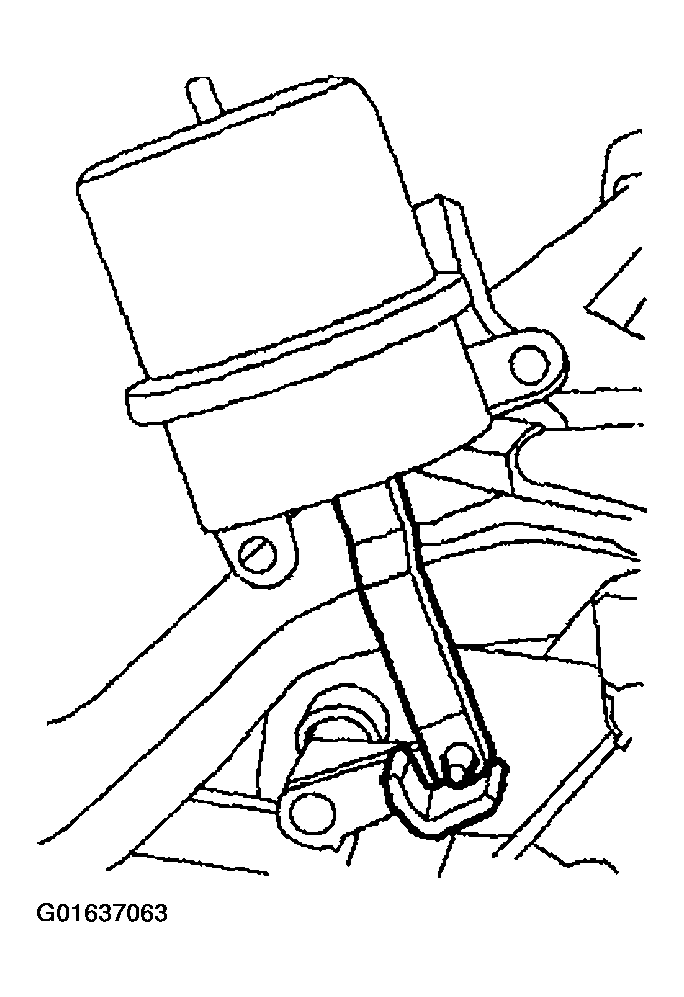

Fig 2: Removing Vacuum Control Motor
Courtesy of FORD MOTOR CO.
