WARNING: This page is about a different car, the 2003 Lincoln Aviator. However, it is still accessible from the selected car via links, so may be relevant.

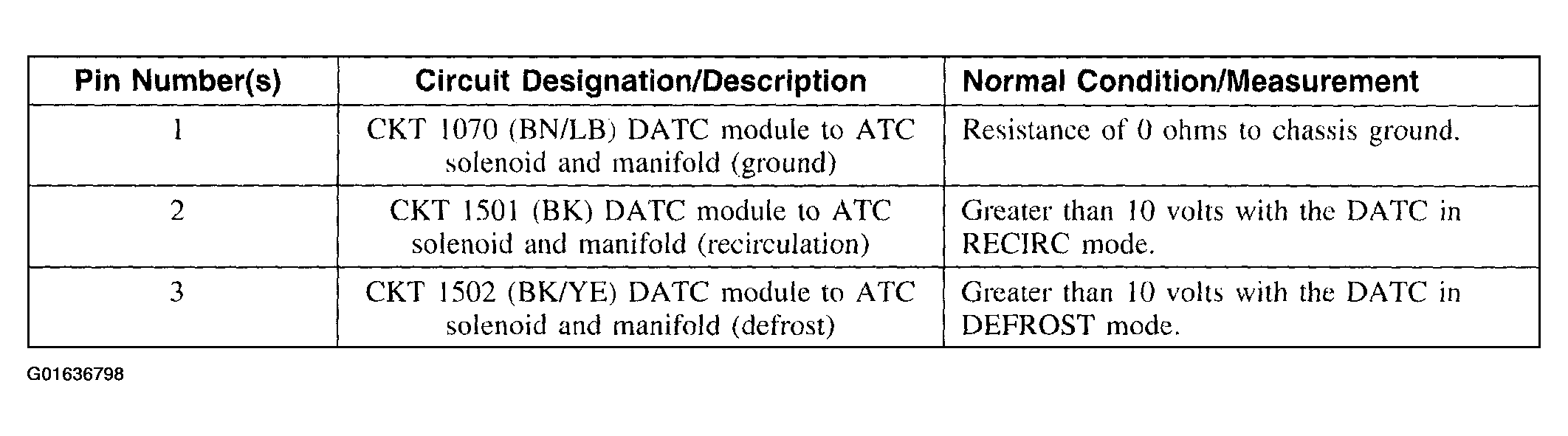

Fig 1: Connector Terminals Of ATC Solenoid And Manifold C2093
Courtesy of FORD MOTOR CO.

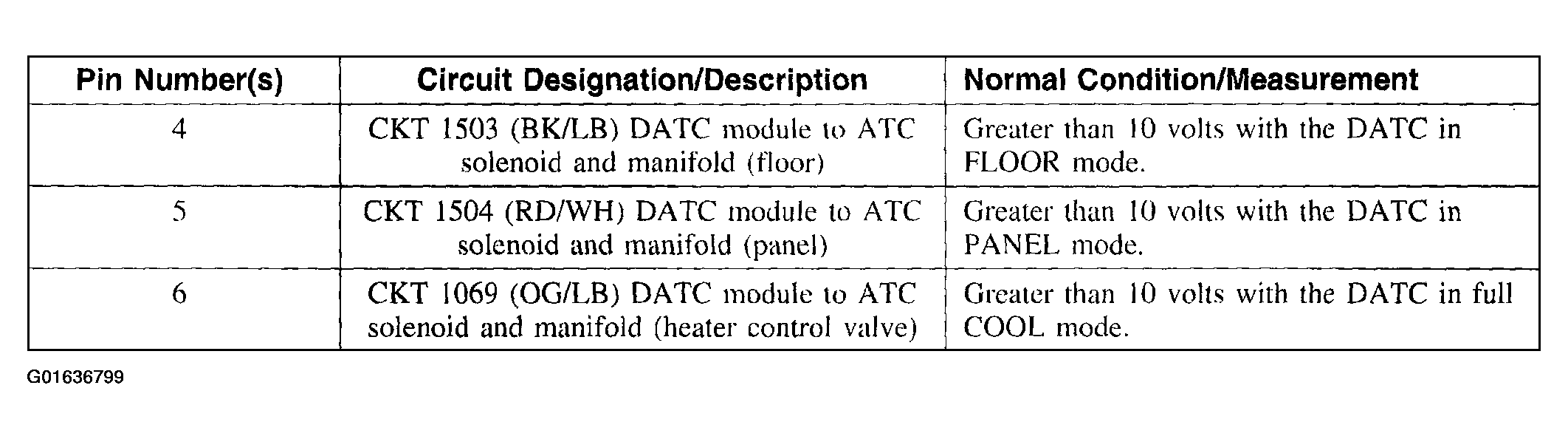

Fig 2: Connector Terminals Of ATC Solenoid And Manifold C2093 Legend
Courtesy of FORD MOTOR CO.
Fig 3: Connector Terminals Of ATC Solenoid And Manifold C2093 Legend
