WARNING: This page is about a different car, the 2003 Lincoln Aviator. However, it is still accessible from the selected car via links, so may be relevant.

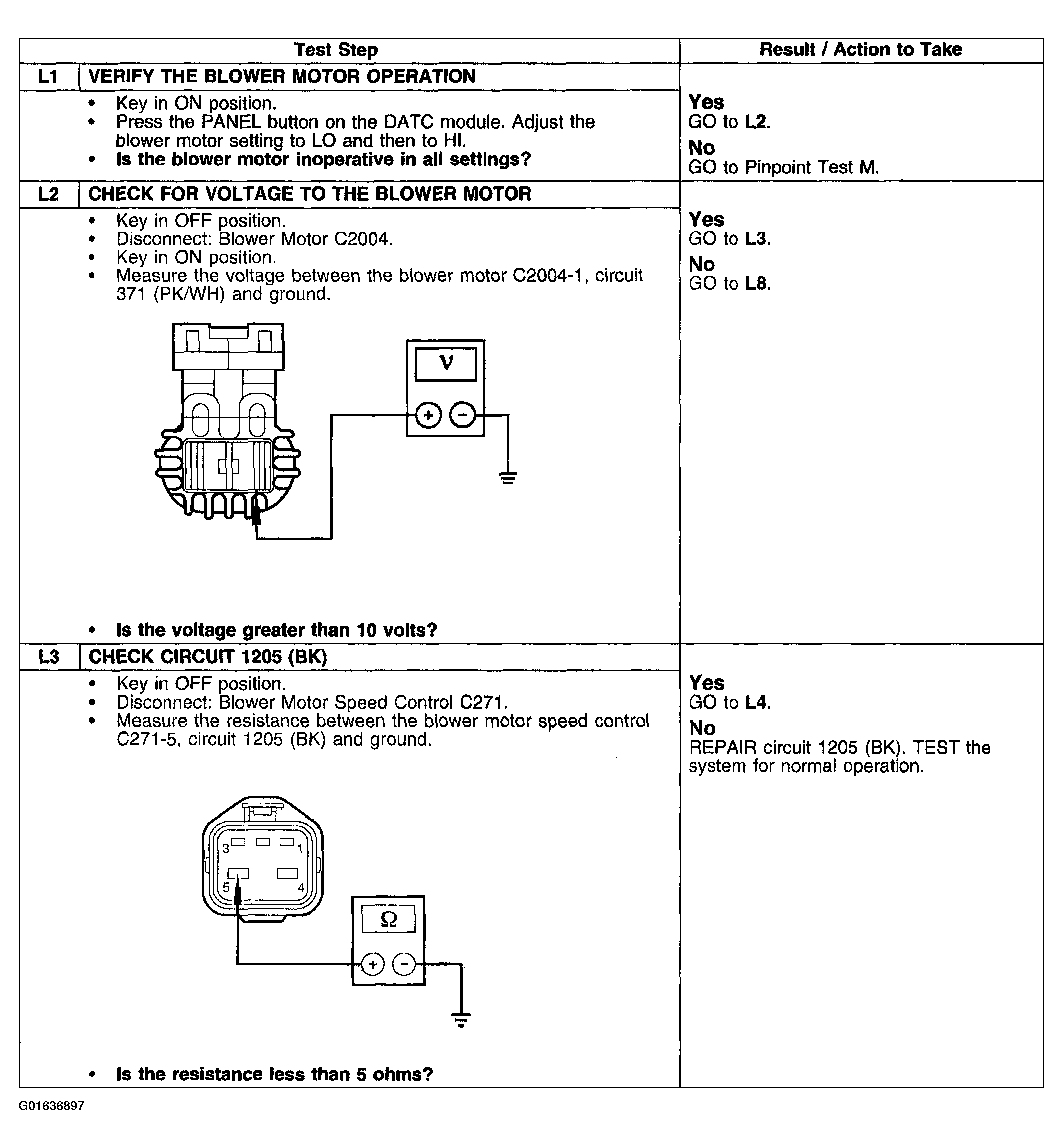

Fig 1: Pinpoint Test L: The Blower Motor Is Inoperative (Steps L1-L3)
Courtesy of FORD MOTOR CO.

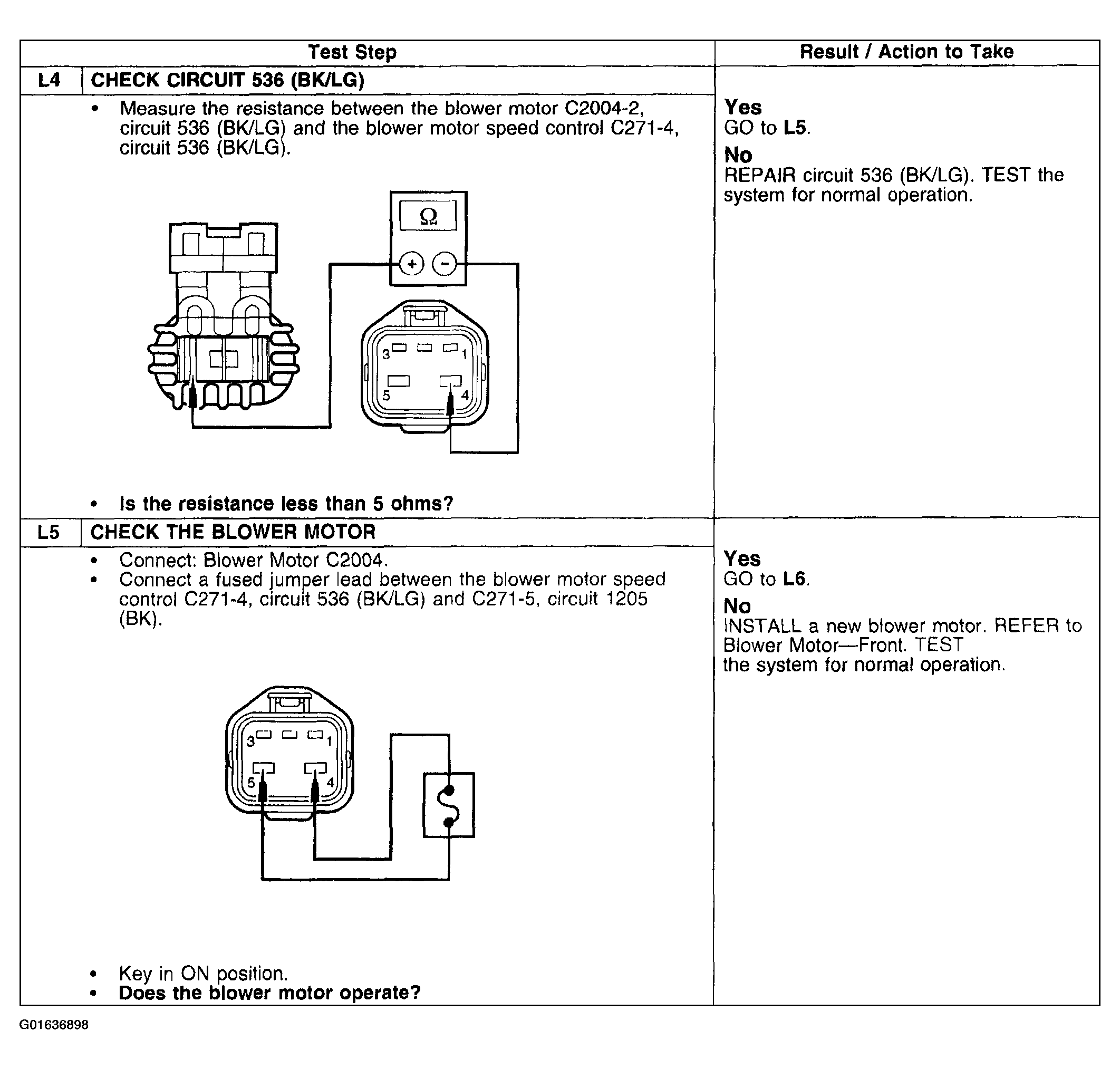

Fig 2: Pinpoint Test L: The Blower Motor Is Inoperative (Steps L4 & L5)
Courtesy of FORD MOTOR CO.

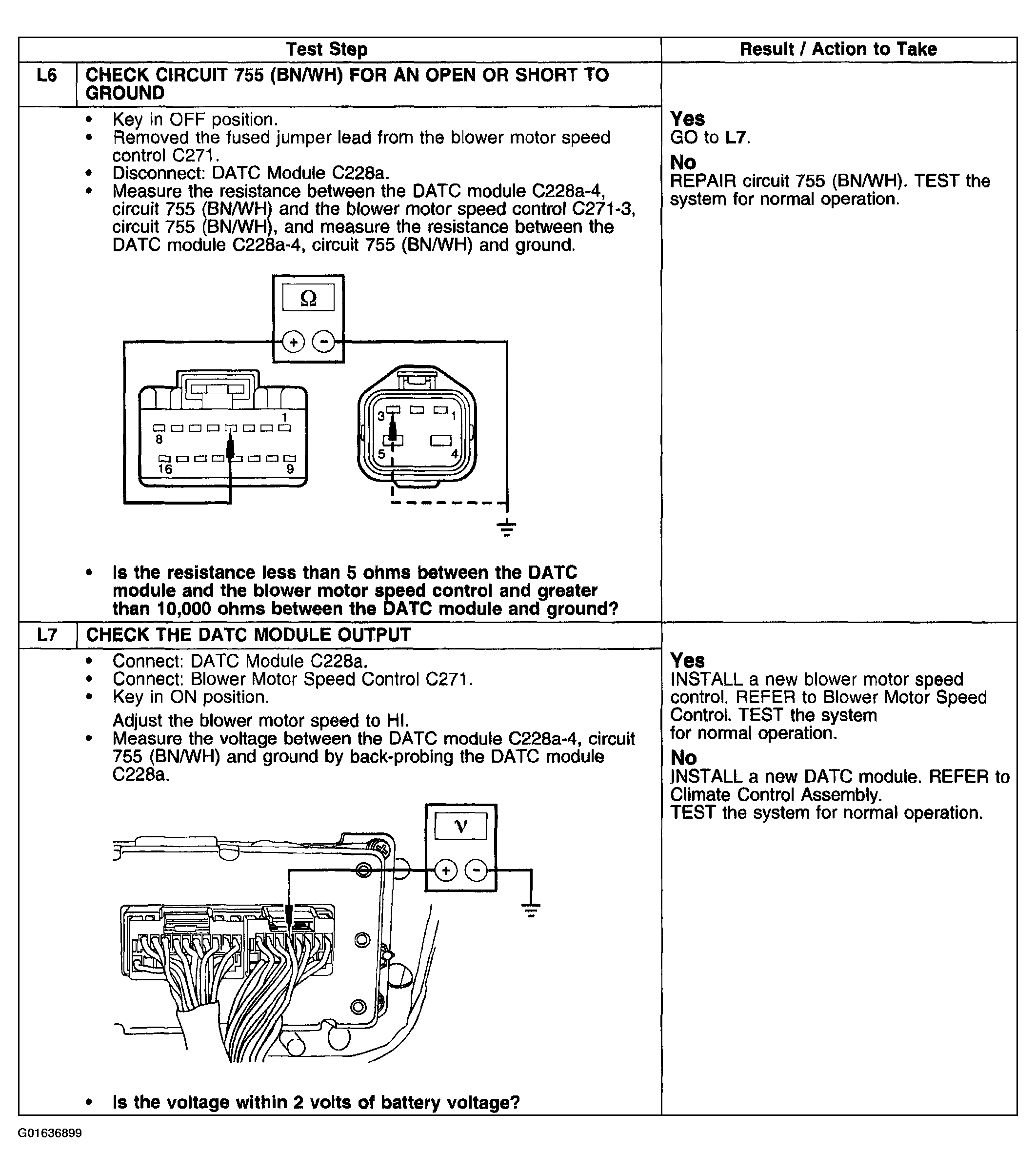

Fig 3: Pinpoint Test L: The Blower Motor Is Inoperative (Steps L6 & L7)
Courtesy of FORD MOTOR CO.

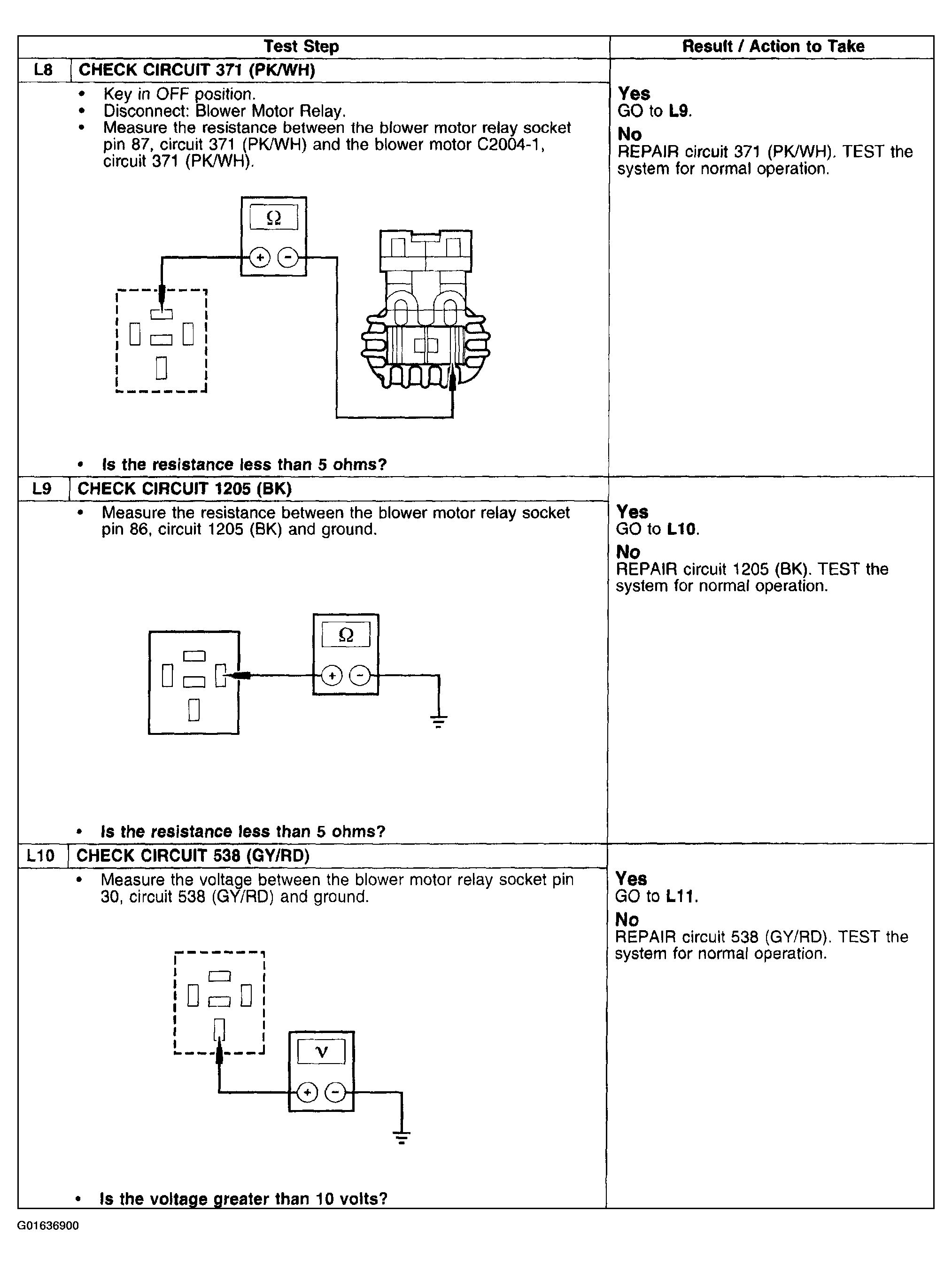

Fig 4: Pinpoint Test L: The Blower Motor Is Inoperative (Steps L8-L10)
Courtesy of FORD MOTOR CO.

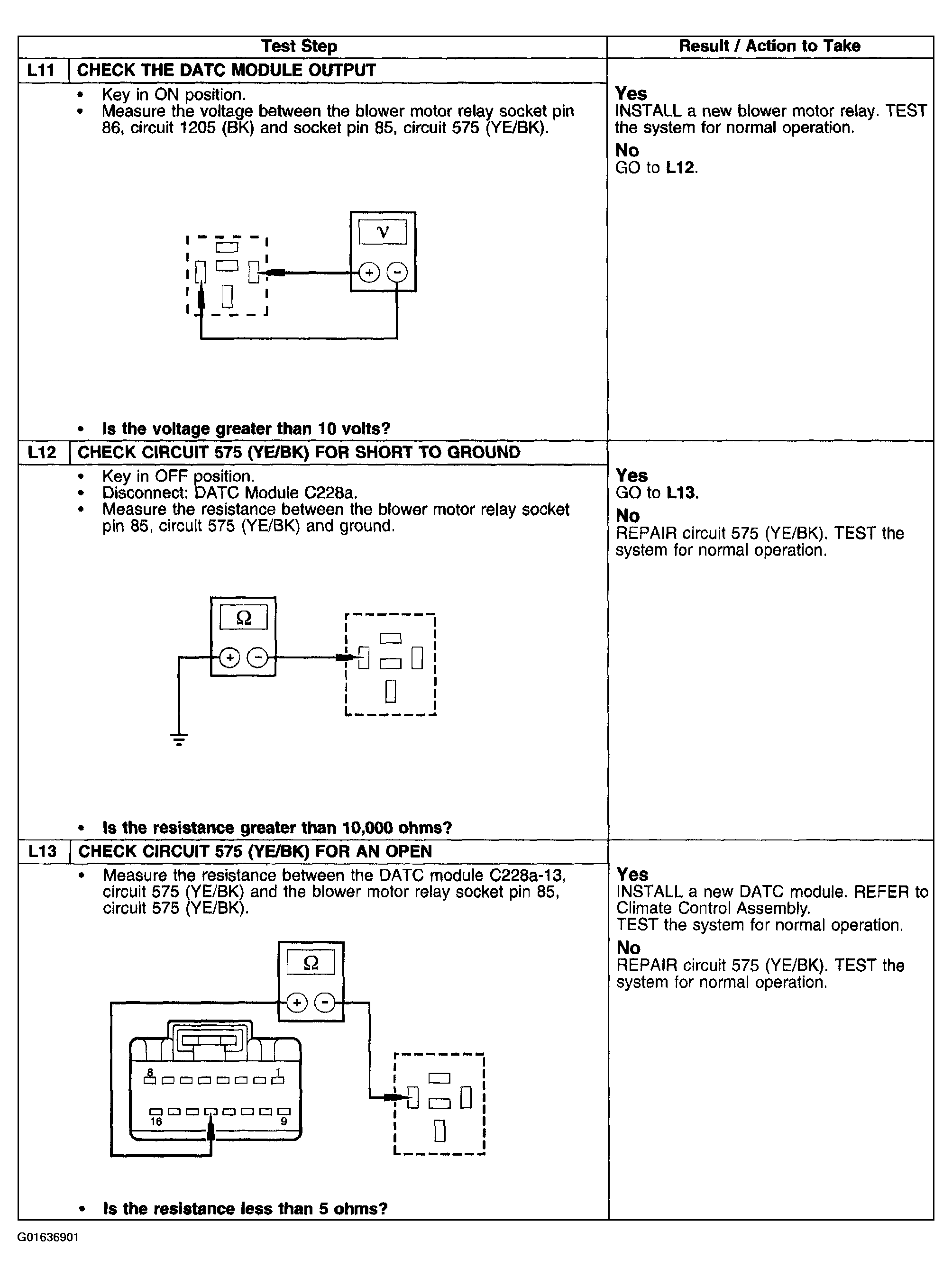

Fig 5: Pinpoint Test L: The Blower Motor Is Inoperative (Steps L11-L13)
